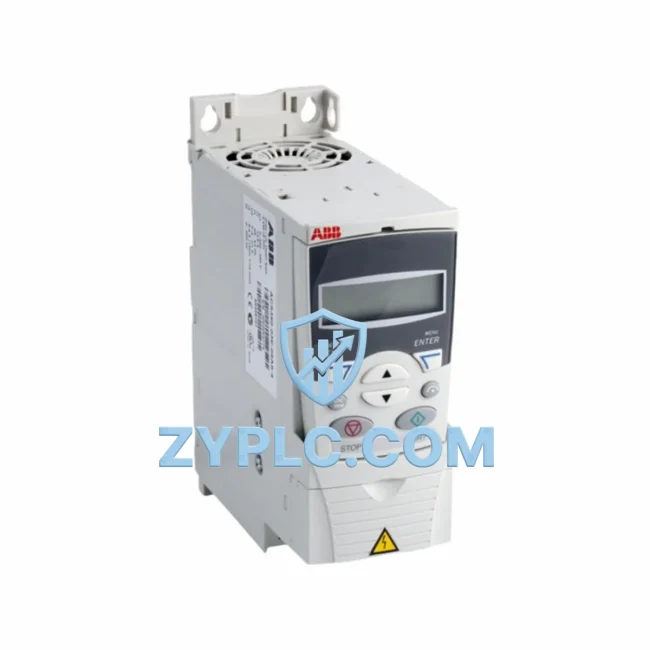

ABB ACS350-03E-01A2-4 System-Ready Variable Frequency Drive for ACS350 Architecture

ABB ACS350-03E-01A2-4 System-Ready Variable Frequency Drive for ACS350 Architecture

In modern industrial automation, a variable frequency drive is never a standalone component — it is a functional node within a layered control architecture. The ABB ACS350-03E-01A2-4 is a 3-phase, 400 V input, 1.2 A output compact VFD from ABB’s ACS350 series, purpose-built for integration into distributed motor control systems where consistency, scalability, and long-term maintainability are engineering priorities. Whether deployed in a cabinet-level motor control center or embedded within a process skid, this drive is designed to operate in coordination with upstream controllers, I/O modules, communication gateways, and HMI layers — delivering system-wide coherence rather than isolated motor speed regulation.

The ACS350 series occupies a well-defined position in ABB’s drive portfolio: above the entry-level ACS150 and below the full-featured ACS580 and ACS880 platforms. This positioning makes the ACS350-03E-01A2-4 ideal for applications requiring reliable scalar or vector control without the overhead of advanced motion functionality. Its compact footprint, integrated EMC filtering options, and support for multiple fieldbus protocols make it a preferred choice for system integrators who need to standardize drive selection across multiple machine cells or production lines.

Architecture Specification Table

Coordinated Control System Design

The ACS350-03E-01A2-4 achieves its full value when integrated within a coordinated control architecture. In a typical PLC-based automation system, the drive receives speed references and enable signals from a programmable logic controller — such as an ABB AC500 series CPU or a Siemens S7-300/S7-1200 — via hardwired analog outputs or digital I/O. For installations requiring fieldbus coordination, the drive can be equipped with an optional FMBA-01 Modbus adapter or FPBA-01 PROFIBUS-DP module, enabling seamless integration into existing network topologies without rewiring the control cabinet.

At the power layer, the ACS350-03E-01A2-4 is typically preceded by a line reactor or an MFIN-01 EMC filter module to suppress conducted emissions and protect upstream power distribution equipment. In multi-drive cabinets, it is common to pair this drive with other ACS350 variants — such as the ACS350-03E-02A4-4 (0.75 kW) or ACS350-03E-04A1-4 (1.5 kW) — to create a standardized drive family across different motor sizes, simplifying spare parts management and technician training.

At the I/O layer, the drive’s analog and digital inputs can be wired directly to field instruments — pressure transmitters, flow sensors, or temperature controllers — enabling closed-loop process control without additional PLC scan cycles. The relay output (RO1) is commonly used to signal fault status to a supervisory SCADA system or to trigger an alarm relay in the control panel. For applications requiring additional I/O expansion, the drive can be coordinated with ABB’s MREL-01 relay output extension or third-party I/O terminal modules mounted on the same DIN rail.

At the HMI layer, the ACS350 series supports the CDP312R control panel, which provides local parameter access, fault history review, and drive commissioning without a laptop or software tool. In networked installations, drive parameters can be monitored and adjusted remotely via ABB’s Drive Composer software connected through the drive’s USB service port, reducing the need for physical access to the control cabinet during routine maintenance.

For redundancy-critical applications, the ACS350-03E-01A2-4 can be installed in a bypass configuration alongside a motor starter or soft starter, ensuring that motor operation continues in the event of a drive fault. This architecture is particularly common in HVAC, water treatment, and process industries where unplanned motor downtime carries significant operational cost.

Application in Layered Automation Systems

The ACS350-03E-01A2-4 is deployed across a wide range of industrial sectors where compact, reliable motor speed control is required within a structured automation hierarchy.

In manufacturing and packaging lines, this drive controls conveyor motors, indexing tables, and feed rollers where precise speed matching between adjacent machine cells is critical. Its fast current limit response and sensorless vector control ensure smooth acceleration and deceleration even under variable load conditions, reducing mechanical stress on couplings and gearboxes.

In water and wastewater treatment, the drive is used to regulate pump and blower motors in aeration basins, filtration systems, and booster stations. Its built-in PID controller allows direct closed-loop pressure or flow control without requiring a dedicated PLC analog output channel, simplifying system architecture in remote pump stations.

In power and energy infrastructure, the ACS350-03E-01A2-4 is integrated into auxiliary motor control panels for cooling fans, oil pumps, and valve actuators in substation and power plant environments. Its wide input voltage tolerance (380–480 V) accommodates the voltage variations common in industrial power distribution systems.

In petrochemical and process industries, the drive is used in skid-mounted pump and compressor control panels where space is limited and environmental conditions require robust thermal management. Its compatibility with external braking resistors and dynamic braking choppers makes it suitable for applications with high-inertia loads requiring controlled deceleration.

In mining and metallurgy, the drive controls auxiliary equipment such as conveyor belt tensioners, cooling water pumps, and ventilation fans. Its DIN rail mounting and compact form factor allow integration into standardized control cabinets used across multiple mine sites, supporting fleet-wide spare parts standardization.

Architecture Engineering FAQ

Q1: Is the ACS350-03E-01A2-4 compatible with existing ACS350 series control panels and fieldbus modules?
Yes. The ACS350-03E-01A2-4 is fully compatible with the ACS350 series accessory ecosystem, including the CDP312R control panel, FMBA-01 Modbus adapter, FPBA-01 PROFIBUS-DP module, and FCNA-01 CANopen adapter. This ensures that existing spare parts inventories and fieldbus infrastructure can be reused without modification, reducing integration cost and commissioning time in multi-drive installations.

Q2: Can this drive be installed in a system alongside larger ACS350 variants without affecting communication architecture?
Yes. All ACS350 series drives share a common parameter structure and fieldbus interface, allowing mixed-power installations (e.g., ACS350-03E-01A2-4 alongside ACS350-03E-04A1-4 or ACS350-03E-08A8-4) to be managed from a single PLC or SCADA node using the same communication protocol and address scheme. This simplifies system commissioning and long-term maintenance, as technicians work with a consistent parameter set across all drive nodes.

Q3: What does the 12-Month Warranty cover, and how does it support long-term system maintenance planning?
The 12-Month Warranty covers manufacturing defects and verified operational failures under normal installation and operating conditions. For system integrators and plant engineers, this warranty period provides a defined baseline for maintenance planning — allowing procurement teams to align spare parts replenishment cycles with warranty expiry and to budget for post-warranty service contracts. ZYPLC maintains verified stock of ACS350 series drives to support rapid replacement in the event of a warranty claim or unplanned failure, minimizing system downtime.
