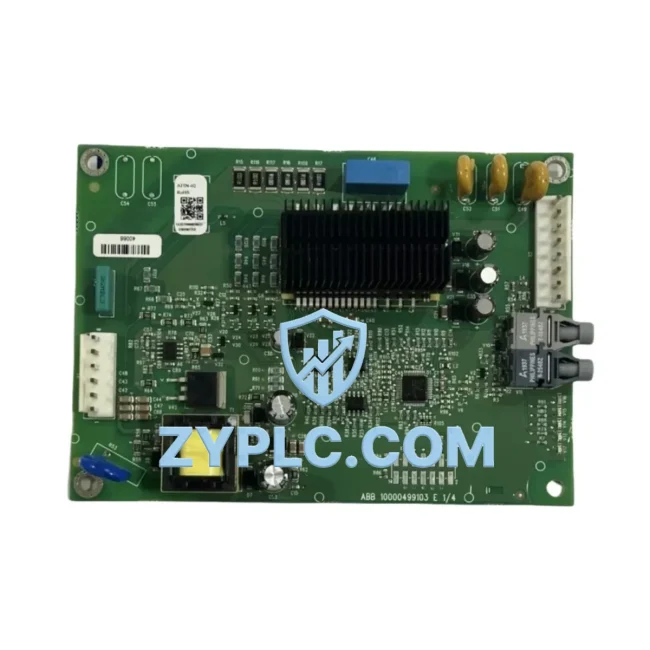

ABB AFIN-02C 3AXD50000038423 Energy-Saving Motor Control Board

ABB AFIN-02C 3AXD50000038423 Energy-Saving Motor Control Board for Optimized ACS800 Automation

The ABB AFIN-02C (Part No. 3AXD50000038423) is a high-performance motor control board engineered for the ABB ACS800 series of industrial variable speed drives. Designed to operate at the intersection of precision motor control and energy efficiency, this board plays a critical role in reducing unnecessary power consumption across demanding production environments — from heavy process industries to high-cycle discrete manufacturing lines.

In modern industrial facilities, uncontrolled motor operation is one of the largest sources of energy waste. The AFIN-02C addresses this directly by enabling the ACS800 drive to execute accurate torque and speed regulation, ensuring motors draw only the power required for each phase of the production cycle. When integrated with the ACS800’s Direct Torque Control (DTC) algorithm, this board supports sub-millisecond torque response, which translates into tighter production line timing, reduced mechanical stress, and measurable reductions in peak energy demand.

Every unit is sourced from verified supply channels, subjected to full functional testing prior to shipment, and backed by a 12-month warranty — giving procurement and maintenance teams the confidence to plan replacements without unplanned downtime risk.

Efficiency Performance Table

Energy-Aware Automation Architecture

The AFIN-02C does not operate in isolation — its energy optimization value is fully realized when it functions as part of a coordinated automation architecture. In a typical ACS800-based drive system, the motor control board interfaces directly with the drive’s main control unit (RMIO board), coordinating real-time feedback loops that govern torque output, speed ramp profiles, and braking energy recovery.

On the fieldbus side, the AFIN-02C supports communication adapter integration, enabling seamless data exchange with higher-level control systems. When paired with an ABB RDCO-03 DDCS fiber optic communication module, the drive can be networked into a multi-drive system where energy load is distributed intelligently across multiple ACS800 units — preventing any single motor from operating inefficiently at partial load for extended periods.

For facilities running ABB AC500 PLCs as the central automation controller, the AFIN-02C-equipped ACS800 drive receives precise speed and torque setpoints via the fieldbus, eliminating the energy losses associated with manual throttling or fixed-speed operation. The AC500’s process logic can dynamically adjust drive output based on real-time production demand — a key enabler of load-following energy strategies in pump stations, compressor rooms, and conveyor systems.

Power quality monitoring is equally important. Integrating an ABB M2M energy meter or a compatible power monitoring relay upstream of the ACS800 panel allows facility engineers to capture kWh consumption data per drive zone. This data, when fed back into the control system, enables demand-side management — reducing peak tariff exposure and identifying drives operating outside their efficiency envelope.

On the I/O layer, the ABB RDIO-01 digital I/O extension module expands the ACS800’s signal handling capacity, allowing the AFIN-02C-controlled drive to respond to more process variables simultaneously — including temperature sensors, pressure transducers, and flow meters that directly influence optimal motor speed selection. Complementing this, the ABB RETA-02 Ethernet adapter module enables PROFINET or EtherNet/IP connectivity, bringing the ACS800 into modern IIoT-ready architectures where energy dashboards and predictive maintenance platforms can monitor drive health in real time.

For human-machine interface needs, an ABB CP600 HMI panel can display live drive parameters — output frequency, motor current, power factor, and energy consumption — giving operators immediate visibility into drive efficiency without requiring access to the drive cabinet. This visibility supports faster operator response to abnormal energy consumption patterns, reducing the time between fault onset and corrective action.

In multi-motor systems, the AFIN-02C-equipped ACS800 can also work alongside ABB ACS580 general purpose drives on auxiliary equipment, creating a layered drive architecture where high-power primary motors are controlled by ACS800 units and secondary equipment is managed by ACS580 drives — all coordinated through a unified PLC and fieldbus backbone for system-wide energy optimization.

Power Optimization in Real Production Lines

In real production environments, the energy impact of a properly functioning motor control board like the AFIN-02C is most visible in three areas: reduced idle energy consumption, improved production line throughput, and lower maintenance-driven downtime costs.

Consider a paper mill or chemical processing plant where large pumps and fans run continuously. Without accurate motor control, these loads often operate at fixed speeds regardless of actual process demand — a well-documented source of energy waste. The AFIN-02C enables the ACS800 to implement affinity law-based speed reduction: cutting motor speed by just 20% reduces power consumption by nearly 50%. Over a full production year, this translates into significant reductions in electricity costs without any sacrifice in process output.

On discrete manufacturing lines — automotive assembly, electronics production, food packaging — the AFIN-02C’s support for fast torque response means conveyor systems and robotic feed mechanisms can accelerate and decelerate precisely in sync with line timing signals from the PLC. This eliminates the micro-delays and mechanical shock events that accumulate into measurable cycle time losses and premature mechanical wear.

From a predictive maintenance perspective, the AFIN-02C enables the ACS800 to log motor current signatures, output frequency deviations, and thermal load data. Maintenance teams using this data can identify bearing wear, rotor imbalance, or coupling misalignment weeks before a failure occurs — scheduling corrective maintenance during planned downtime windows rather than responding to emergency breakdowns that halt production and spike energy consumption through restart surges.

All units supplied by ZYPLC are tested under load conditions that simulate real drive operation, ensuring the AFIN-02C performs to specification from the first power-on in your facility. Combined with the 12-month warranty coverage, this testing protocol gives maintenance planners a reliable baseline for spare parts inventory management — reducing the need for excessive safety stock while maintaining high equipment availability.

Energy Optimization FAQ

Q1: How does the AFIN-02C contribute to measurable energy savings in an ACS800 drive system?
The AFIN-02C enables the ACS800’s Direct Torque Control algorithm to operate with maximum precision, ensuring the motor receives only the torque and speed commands required by the process at any given moment. This eliminates over-torque conditions, reduces reactive power draw, and supports variable-speed operation — the primary mechanism through which VSD-controlled motors achieve 20–60% energy savings compared to fixed-speed alternatives.

Q2: Is the AFIN-02C compatible with all ACS800 drive variants?
The AFIN-02C (3AXD50000038423) is designed for the ABB ACS800 series. Compatibility should be verified against your specific ACS800 drive type code and firmware version. ZYPLC’s technical team can assist with cross-referencing your drive’s documentation to confirm fit before purchase.

Q3: What is the recommended replacement procedure, and how long does installation take?
Replacement of the AFIN-02C is a board-level swap performed with the drive de-energized and locked out. The procedure typically takes 30–60 minutes for a qualified drive technician. After installation, drive parameter verification and a no-load test run are recommended before returning the drive to production service. ZYPLC provides technical documentation support for the replacement process.

Q4: What does the 12-month warranty cover, and what testing is performed before shipment?
Every AFIN-02C unit supplied by ZYPLC undergoes full functional testing under simulated drive conditions prior to dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail during the warranty period are replaced or repaired at no additional cost, minimizing the financial risk of spare parts procurement for maintenance budgets.
