ABB AGDR-71C 68436770 Energy-Saving Gate Driver ACS

ABB AGDR-71C 68436770 Energy-Saving Gate Driver ACS: Precision Drive Control for Optimized ACS Series Automation

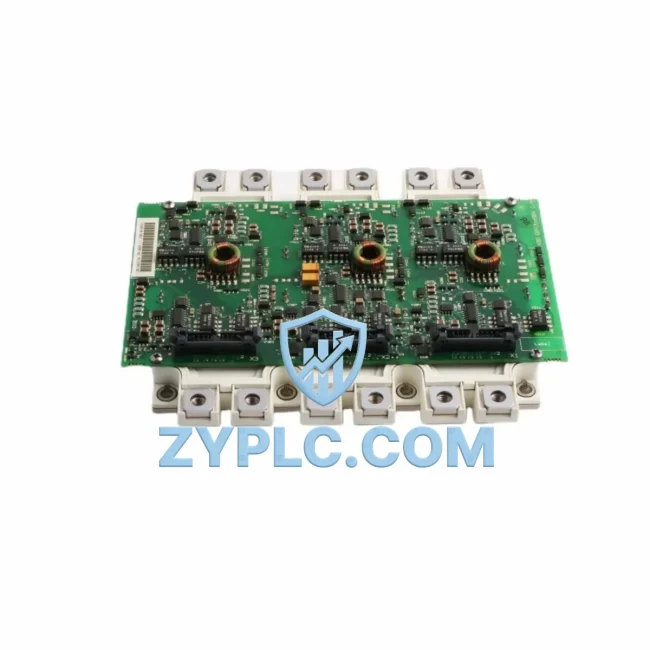

The ABB AGDR-71C (Part No. 68436770) is a high-efficiency gate driver board engineered for ABB’s ACS-series variable frequency drives, including the ACS800, ACS880, and DCS880 platforms. In modern industrial environments where energy accountability is no longer optional, the AGDR-71C plays a foundational role in ensuring that IGBT switching losses are minimized, gate pulse timing is precise, and drive-level energy conversion efficiency is maintained at its rated peak. By replacing a degraded or failed gate driver board with a genuine ABB AGDR-71C, facilities can recover measurable efficiency losses that accumulate silently in aging drive systems.

Efficiency Performance Table

Energy-Aware Automation Architecture

The AGDR-71C does not operate in isolation — it is one precision node within a tightly integrated drive and control architecture. In a typical ACS880 installation, the gate driver board receives switching commands from the ACS880 RDCU-02C control unit via a DDCS fiber optic link. The control unit itself executes ABB’s Direct Torque Control (DTC) algorithm, which depends on accurate, low-latency gate signals to maintain torque ripple within acceptable limits. Any degradation in the gate driver’s response time directly undermines the DTC loop, causing the drive to compensate with higher current draw — a hidden energy penalty that accumulates over thousands of operating hours.

On the power side, the AGDR-71C interfaces directly with the ABB IGBT power module stack (such as the 5SNA 0400J650100 or equivalent module used in ACS880 frame R8i–R11i). Proper gate drive voltage levels — typically +15V for turn-on and -8V to -15V for turn-off — are critical to keeping the IGBT in its optimal switching region. A compromised gate driver that delivers insufficient negative turn-off voltage risks tail current losses and elevated junction temperatures, both of which reduce the effective efficiency of the entire drive system.

For energy monitoring integration, the AGDR-71C-equipped drive can be paired with the ABB NETA-21 remote monitoring tool or connected to a plant-level energy management system via the FENA-21 Ethernet adapter module, enabling real-time kWh tracking, efficiency trending, and alarm logging. When combined with the AINT-02C inverter control interface board, the system gains additional diagnostic depth, allowing maintenance teams to correlate gate driver health with drive output quality metrics.

In multi-drive installations — such as those using the ACS880-07 cabinet drive or the ACS880-104 regenerative drive module — multiple AGDR-71C boards operate in parallel across phase legs. Ensuring all boards are matched in firmware revision and switching characteristics is essential for balanced current sharing and symmetric thermal loading across the IGBT stack. Mismatched gate drivers in parallel configurations are a known cause of uneven power distribution and premature module failure.

For I/O and process feedback, the drive system typically integrates with an ABB AC500 PLC or a third-party controller via PROFIBUS-DP (using the RPBA-01 adapter) or PROFINET (via the FENA-21). These communication layers allow the PLC to receive drive status, energy consumption data, and fault codes in real time — enabling closed-loop energy optimization at the process level, not just the drive level.

Power Optimization in Real Production Lines

In heavy industrial applications — steel rolling mills, cement kilns, paper machine drives, and large HVAC systems — the ACS800 and ACS880 drives controlled by the AGDR-71C gate driver are often running continuously for 8,000+ hours per year. At this utilization rate, even a 1–2% improvement in drive efficiency translates to significant annual energy savings. A single 250 kW ACS880 drive operating at 95% efficiency instead of 93% saves approximately 17,500 kWh per year — enough to justify the cost of a proactive gate driver replacement many times over.

Beyond raw energy savings, a properly functioning AGDR-71C reduces thermal stress on the IGBT modules. Lower junction temperatures directly extend module lifespan, reducing the frequency of costly unplanned shutdowns. In production environments where a single drive failure can halt an entire line — costing thousands per hour in lost output — predictive replacement of the gate driver board based on operating hours or thermal trend data is a sound maintenance strategy.

The AGDR-71C also contributes to production line rhythm optimization. In applications where the drive controls a conveyor, extruder, or winding machine, inconsistent gate drive performance introduces micro-variations in motor speed and torque. These variations, while small individually, compound across a production shift to create measurable deviations in product quality and line throughput. Restoring the gate driver to OEM specification eliminates this variability, tightening process control and improving overall equipment effectiveness (OEE).

All AGDR-71C units supplied by ZYPLC undergo functional testing prior to shipment, including gate signal integrity verification, protection circuit activation testing, and isolation resistance checks. This ensures that the board performs to ABB’s original specification from the moment it is installed, with no burn-in period required. Combined with our 12-month warranty, this gives maintenance engineers confidence in both the component and the supply chain.

Energy Optimization FAQ

Q1: How does replacing the AGDR-71C improve drive energy efficiency?
A degraded gate driver board causes suboptimal IGBT switching — longer switching times, higher switching losses, and increased heat generation. Replacing it with a new or fully tested AGDR-71C restores the drive’s rated switching efficiency, reducing energy waste at the power conversion stage. In continuous-duty applications, this can recover 1–3% of total drive input power.

Q2: Is the AGDR-71C 68436770 compatible with both ACS800 and ACS880 drives?
Yes. The AGDR-71C is used across multiple ABB drive platforms, including ACS800, ACS880, and DCS880 series. However, compatibility depends on the specific drive frame size and inverter module configuration. We recommend confirming the exact drive model and frame size before ordering. Our technical team can assist with cross-referencing.

Q3: What is the recommended replacement interval for the AGDR-71C in high-duty-cycle applications?
ABB does not publish a fixed replacement interval for the AGDR-71C, but industry practice in high-duty-cycle environments (20+ hours/day) suggests inspection at 30,000–40,000 operating hours or whenever drive efficiency metrics show unexplained degradation. Proactive replacement during scheduled maintenance windows avoids unplanned downtime.

Q4: What does the 12-month warranty cover, and what is the testing process?
All AGDR-71C units from ZYPLC are tested for gate signal output integrity, protection circuit functionality, and electrical isolation before shipment. The 12-month warranty covers component failure under normal operating conditions. Units showing damage from incorrect installation voltage, physical impact, or operation outside ABB’s specified environmental ratings are not covered. Contact plc.sales@zyplc.com for warranty claims or technical support.
