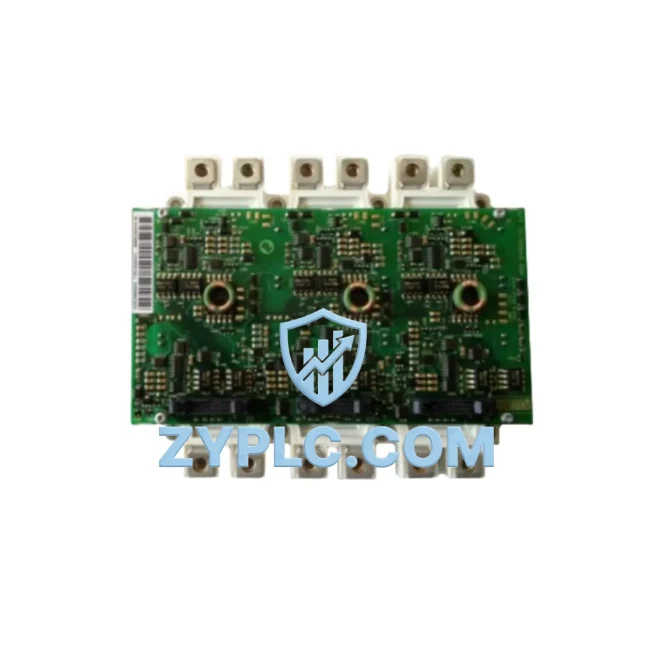

ABB AGDR-72C System-Ready Gate Driver for ACS800 Architecture

ABB AGDR-72C System-Ready Gate Driver for ACS800 Architecture: Control System Architecture and Upstream-Downstream Coordination

In modern industrial automation, the reliability of a variable frequency drive system depends not only on the performance of individual components, but on the seamless coordination of every layer within the control architecture. The ABB AGDR-72C gate driver board — carrying the full part reference FS450R17KE3/AGDR-72C S 68569427 — is a precision-engineered interface component designed to operate at the heart of the ACS800 drive series power conversion stage. Its role is not peripheral; it sits at the critical junction between the drive control unit and the IGBT power module, translating digital switching commands into precisely timed gate signals that govern the entire energy conversion process.

Understanding the AGDR-72C requires viewing it within the full ACS800 system architecture. The ACS800 platform is a modular, scalable drive family widely deployed across manufacturing, energy, process, and heavy industry sectors. Within this architecture, the control hierarchy flows from the plant-level DCS or SCADA system, through the drive control board (such as the RDCU-02C or RDCU-12C), into the gate driver layer represented by the AGDR-72C, and finally to the IGBT power module — in this case the FS450R17KE3, a 1700V/450A Infineon IGBT module commonly paired with this driver board. The AGDR-72C ensures that switching events are executed with microsecond-level precision, protecting the IGBT from overvoltage, desaturation faults, and shoot-through conditions that would otherwise compromise system uptime.

From a system integration perspective, the AGDR-72C does not operate in isolation. It receives PWM signals from the drive’s main control board and returns real-time fault feedback, enabling the drive’s protection logic to respond immediately to abnormal conditions. This bidirectional communication is essential in applications where process continuity is non-negotiable — such as continuous casting lines, compressor drives, pump stations, and hoisting systems. The board’s galvanic isolation between the control side and the power side ensures that high-voltage transients in the DC bus do not propagate into the control electronics, preserving the integrity of the entire signal chain from the PLC or DCS down to the field device level.

When specifying replacement or spare components for an ACS800 installation, engineers must consider the full bill of materials across all system layers. The AGDR-72C is typically found alongside the AINT-02C or AINT-07C auxiliary interface boards, which manage the communication between the main control board and the gate driver layer in multi-drive or common DC bus configurations. The APBU-44C or APBU-12C pulse encoder interface units may also be present in motion-critical applications, providing speed feedback that the drive uses to refine its switching strategy. On the power supply side, the APOW-01C or APOW-02C power supply boards provide the regulated voltages required by the control electronics, and their health directly affects the stability of the gate driver output. In cabinet-level designs, the ASTO-0x snubber boards and DC fuse assemblies form part of the protection architecture that the AGDR-72C relies upon to operate within its rated parameters.

For system architects managing multi-drive installations, the AGDR-72C’s compatibility with the ACS800’s modular backplane and its standardized connector interface simplifies both initial commissioning and long-term maintenance. Technicians familiar with the ACS800 platform can replace the gate driver board without reconfiguring the drive’s parameter set, reducing mean time to repair (MTTR) and minimizing production downtime. This is particularly valuable in 24/7 operations such as water treatment facilities, petrochemical plants, and mining conveyor systems, where unplanned stoppages carry significant financial and safety consequences.

From a redundancy design standpoint, critical ACS800 installations often incorporate hot-standby drive configurations or N+1 spare strategies. Maintaining a verified spare AGDR-72C in the site’s critical spares inventory is a recognized best practice endorsed by ABB’s drive maintenance guidelines. The board’s long production lifecycle within the ACS800 platform means that sourcing verified, tested units from authorized distributors or specialist industrial component suppliers is essential — particularly as the ACS800 series transitions toward end-of-life support phases and OEM availability becomes constrained.

ZYPLC maintains verified stock of the ABB AGDR-72C (FS450R17KE3/AGDR-72C S 68569427) with full functional testing prior to dispatch. Every unit is covered by a 12-Month Warranty, providing engineering teams and procurement managers with the assurance needed for both planned maintenance programs and emergency replacement scenarios. Our Contextual Integration support service assists customers in confirming compatibility with their specific ACS800 drive variant, cabinet configuration, and IGBT module pairing before shipment, reducing the risk of installation errors and accelerating system restoration.

Architecture Specification Table

Coordinated Control System Design

The AGDR-72C functions as the electromechanical translator within a layered ACS800 control architecture. At the control layer, the RDCU-02C or RDCU-12C drive control unit generates the PWM switching pattern based on motor feedback and process setpoints received from the plant DCS or PLC. These switching commands are transmitted to the AGDR-72C, which amplifies and isolates the signals before applying them to the gate terminals of the FS450R17KE3 IGBT power module.

At the I/O and auxiliary layer, the AINT-02C auxiliary interface board manages the logical coordination between the main control board and the gate driver in multi-module drive configurations. The APOW-01C power supply board provides the regulated ±15V DC supply that the AGDR-72C requires for its internal gate drive circuitry — a dependency that makes the power supply board a critical element in any fault diagnosis workflow. In cabinet assemblies, the ASTO-01 snubber board and associated DC bus capacitor banks work in concert with the gate driver’s switching timing to suppress voltage spikes and protect the IGBT junction.

For communication and network integration, the ACS800 platform supports PROFIBUS-DP via the RPBA-01 adapter module, MODBUS via the RMBA-01, and EtherNet/IP via the RETA-02 adapter — all of which interface at the drive control board level, with the AGDR-72C operating transparently beneath this communication layer. In HMI and supervisory applications, the drive’s panel interface (CDP312R or ACS-CP-C) provides local parameter access and fault history, while the AGDR-72C’s fault feedback signals are logged by the drive’s internal event recorder for maintenance analysis. This complete signal chain — from SCADA setpoint to IGBT gate pulse — represents the system architecture within which the AGDR-72C delivers its critical function.

Application in Layered Automation Systems

Manufacturing and Process Lines: In automotive body shop conveyor systems and steel rolling mill drives, the ACS800 with AGDR-72C gate driver provides the precise torque control and fault protection required for continuous, high-cycle operation. The board’s fast desaturation detection prevents IGBT failure propagation during motor stall or short-circuit events, protecting both the drive and the mechanical load.

Power and Energy: In hydroelectric auxiliary drive systems and wind turbine pitch control applications, the ACS800 platform’s reliability under variable load conditions depends on the gate driver’s ability to maintain consistent switching performance across wide temperature ranges. The AGDR-72C’s thermal design supports operation in both climate-controlled switchrooms and outdoor enclosures with forced ventilation.

Petrochemical and Water Treatment: Pump and compressor drives in hazardous area installations require drive components with proven fault containment. The AGDR-72C’s galvanic isolation and real-time fault feedback enable the ACS800 to execute safe torque-off sequences in response to process alarms, supporting SIL-rated safety architectures when integrated with appropriate safety PLCs and relay modules.

Mining and Minerals Processing: High-inertia conveyor and hoist drives in underground and surface mining operations place extreme demands on drive power stages. The AGDR-72C’s compatibility with the FS450R17KE3 high-current IGBT module makes it suitable for multi-megawatt drive assemblies where gate driver reliability directly determines system availability and ore throughput.

Architecture Engineering FAQ

Q1: How do I confirm that the AGDR-72C (FS450R17KE3/AGDR-72C S 68569427) is compatible with my specific ACS800 drive variant and cabinet configuration?
Compatibility depends on the ACS800 drive type code, power rating, and the IGBT module installed in your power stage. The AGDR-72C is specifically designed for use with the FS450R17KE3 Infineon IGBT module in ACS800 medium-power configurations. ZYPLC’s Contextual Integration support service will cross-reference your drive’s type code and serial number against the ABB component matrix to confirm fitment before shipment. Please provide your drive nameplate data when inquiring.

Q2: Can the AGDR-72C be installed and commissioned without reconfiguring the ACS800 drive parameters, and what are the key installation checks?
In most cases, replacing a faulty AGDR-72C with a verified unit of the same part number does not require drive parameter changes, as the board interfaces at the hardware level below the drive’s software configuration layer. Key installation checks include verifying the ±15V DC supply from the APOW board, confirming secure connector seating on both the control signal and IGBT gate terminals, and performing a low-voltage insulation check before energizing the DC bus. ABB’s ACS800 hardware manual provides the recommended commissioning sequence, and ZYPLC’s technical team can provide application-specific guidance.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance planning for ACS800 gate driver components?
ZYPLC’s 12-Month Warranty covers functional failure of the AGDR-72C under normal operating conditions, including defects in gate drive circuitry, isolation failure, and protection function malfunction. The warranty period begins from the date of shipment. For long-term maintenance planning, ZYPLC recommends establishing a critical spares inventory that includes at minimum one AGDR-72C per drive type in service, alongside the APOW-01C power supply board and the matched FS450R17KE3 IGBT module. Our procurement team can assist with multi-unit sourcing, shelf-life management, and scheduled replacement programs aligned with your plant’s preventive maintenance calendar.
