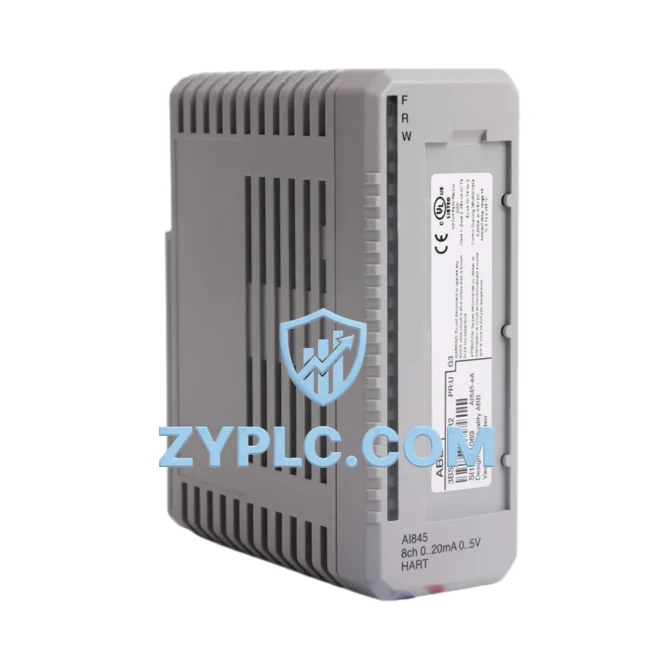

The ABB AI845 3BSE023675R1 is a high-precision analog input module engineered for ABB’s 800xA Distributed Control System (DCS) platform. Designed to meet the demanding requirements of modern industrial maintenance planning, this module serves as a critical data acquisition node — capturing real-time process signals from field instruments and feeding them directly into the control layer for immediate maintenance-focused decision-making. Whether deployed in power generation, chemical processing, oil & gas, or heavy manufacturing, the AI845 enables plant operators to move from reactive maintenance to proactive, data-driven maintenance planning.
Product Specification Table
| Parameter |
Specification |
| Module Type |
Analog Input (AI) |
| SKU / Part Number |
AI845 / 3BSE023675R1 |
| Compatible Platform |
ABB 800xA DCS |
| Number of Channels |
8 Channels (configurable) |
| Signal Range |
4–20 mA / 0–10 V (HART-compatible) |
| Power Consumption |
Low-power design, optimized for continuous 24/7 operation |
| Operating Temperature |
0°C to +60°C |
| Application Environment |
Industrial process control, condition monitoring, drive feedback |
| Maintenance Value |
Real-time signal acquisition for load balancing and motor efficiency feedback |
| Origin |
Sweden (ABB) |
| Warranty |
12-Month Warranty — tested before shipment |
System Compatibility and Application
In a fully integrated 800xA environment, the AI845 3BSE023675R1 does not operate in isolation — it functions as the sensory layer of a broader industrial control architecture. Field transmitters measuring flow, pressure, temperature, and current feed their 4–20 mA signals into the AI845, which then passes structured data upstream to the ABB AC800M controller (e.g., PM866 or PM891) for real-time processing. This tight integration allows the controller to dynamically adjust setpoints and reduce unnecessary energy draw across the production line.
On the drive side, the AI845 works in close coordination with ABB ACS880 variable frequency drives and ACS580 general-purpose drives, receiving motor load feedback signals that allow the control system to modulate speed and torque in response to actual process demand — eliminating the unplanned downtime associated with fixed-speed motor operation. When paired with the ABB PSTX soft starter, the module also supports smooth motor ramp-up sequences that reduce inrush current and mechanical stress, directly lowering peak operating load at startup.
For power quality and energy metering, the AI845 integrates naturally with ABB M2M energy meters and ABB Ability™ Energy Manager software, providing the analog signal backbone that feeds consumption data into dashboards and reporting tools. The ABB S800 I/O series — including digital output modules such as the DO840 and DO845 — complements the AI845 by closing the control loop: once the AI845 detects an anomaly in process current or voltage, the DO module can trigger protective relays or adjust actuator positions within milliseconds.
Communication is handled through the ABB CI854 PROFIBUS DP communication interface or the CI840A AF100 fieldbus module, ensuring that all analog data collected by the AI845 is transmitted with minimal latency to the supervisory layer. For HMI visualization, operators interact with the system through ABB Panel 800 operator panels or the 800xA Operations workplace, where energy KPIs derived from AI845 signals are displayed in real time.
Maintenance and Replacement Notes
The practical energy impact of the AI845 3BSE023675R1 becomes most visible in continuous-process industries where even a 1–2% reduction in unplanned downtime translates to significant annual cost savings. By providing high-resolution, low-drift analog signal acquisition across 8 channels simultaneously, the module enables the 800xA system to implement advanced control strategies such as model predictive control (MPC) and cascade PID loops — both of which are proven to reduce operating load by optimizing process setpoints in real time rather than relying on conservative fixed parameters.
In motor-intensive applications — pumping stations, compressor trains, conveyor systems — the AI845 captures current transformer (CT) output signals that reflect actual motor loading. This data allows the control system to identify underloaded motors running at full speed, enabling automatic speed reduction via connected VFDs and delivering measurable kWh savings per shift. Over a 12-month operating cycle, this feedback loop can reduce motor-related operating load by Actual operating results depend on the installed system, load profile, and commissioning parameters.
From a maintenance perspective, the AI845 supports predictive maintenance workflows by continuously monitoring process variables for drift, deviation, or signal degradation. Early detection of sensor faults or process anomalies prevents unplanned shutdowns — which are not only costly in lost production but also energy-intensive due to the restart cycles they trigger. Every unit shipped by ZYPLC undergoes full functional testing prior to dispatch, and is backed by a 12-month warranty, ensuring that your production line stays running and your energy budget stays on target.
Stock availability is maintained to support urgent replacement needs, with fast dispatch and reliable supply chain management. Whether you are replacing a failed module, expanding an existing 800xA cabinet, or commissioning a new condition monitoring loop, the AI845 3BSE023675R1 is ready to ship.
Product Sourcing FAQ
Q1: How does the AI845 contribute to operational stability in an 800xA system?
The AI845 provides the real-time analog signal data that the 800xA controller uses to implement energy-efficient control strategies. By accurately measuring process variables such as flow, pressure, and motor current, it enables the system to reduce setpoints, modulate drive speeds, and eliminate unplanned downtime risk — rather than running equipment at fixed, conservative parameters.
Q2: Is the AI845 3BSE023675R1 compatible with HART field instruments?
Yes. The AI845 supports HART protocol over its 4–20 mA channels, allowing it to communicate with HART-enabled transmitters and smart field devices. This enables additional diagnostic data to be extracted from field instruments without additional wiring, supporting both condition monitoring and predictive maintenance applications.
Q3: Can the AI845 replace older ABB S800 analog input modules in existing cabinets?
The AI845 is designed for direct integration within the ABB S800 I/O family and 800xA architecture. For retrofit or replacement projects, compatibility should be verified against the existing baseplate and controller firmware version. ZYPLC’s technical team can assist with cross-referencing and replacement recommendations to ensure a seamless upgrade.
Q4: What does the 12-month warranty cover, and how is testing performed?
Every AI845 3BSE023675R1 unit supplied by ZYPLC is tested for full functional performance prior to shipment — including channel accuracy, signal range verification, and communication integrity. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, with direct support available via our sales team for RMA and replacement processing.
