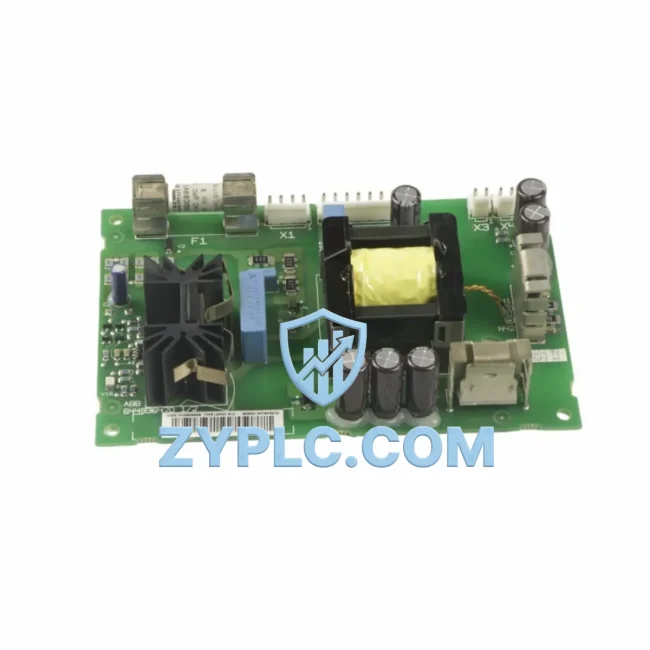

The ABB APOW-01C (CODE 64493663B) is a dedicated DC power supply module engineered for deployment within ABB’s APOW series distributed control system (DCS) architecture. Unlike generic power components, the APOW-01C is purpose-built to deliver stable, conditioned power across the full control hierarchy — from the central processing layer down through I/O expansion racks, communication gateways, and field-level instrumentation. In complex industrial environments where power integrity directly determines system uptime, the APOW-01C serves as the foundational energy backbone that enables every other module in the control cabinet to perform within specification.

Modern DCS architectures demand more than raw voltage delivery. The APOW-01C provides regulated, low-ripple DC output that protects sensitive logic circuits within ABB APOW series CPU modules, I/O boards, and communication interfaces from transient disturbances common in heavy industrial environments such as steel mills, petrochemical refineries, power generation facilities, and water treatment plants. Its design supports hot-standby redundancy configurations, allowing engineers to pair two APOW-01C units in parallel redundant power schemes — ensuring that a single power supply failure does not interrupt process control continuity.

Within the layered automation model, the APOW-01C occupies the power layer, but its influence extends upward through every tier. At the control layer, it sustains the ABB APOW series master controller and associated ACSM or AINT interface boards. At the I/O layer, it energizes AINT, IOEC, and RDCO I/O expansion modules that gather analog and digital signals from field devices. At the network layer, it supports DDCS fiber optic communication boards and Profibus DP gateway modules that carry real-time process data between controllers and supervisory systems. At the HMI layer, it maintains the power rail stability required by operator workstations and panel-mounted displays. At the execution layer, it indirectly supports ABB ACS800 and ACS600 drive systems by ensuring the control electronics feeding drive reference signals remain continuously powered.

Architecture Specification Table

Coordinated Control System Design

The APOW-01C achieves its highest value when integrated as part of a fully coordinated ABB APOW series control system. In a typical architecture, the APOW-01C powers the APOW-01 master controller board, which serves as the central processing unit managing all closed-loop control sequences. Alongside the master controller, AINT-02 and AINT-11 interface boards handle analog I/O signal conditioning, relying on the APOW-01C’s stable 24 VDC rail to maintain measurement accuracy across 4–20 mA and 0–10 V signal ranges.

For systems requiring expanded I/O capacity, IOEC3 and IOEC4 I/O extension modules connect to the main rack via DDCS fiber optic links, with the APOW-01C supplying the local power needed to sustain these remote I/O nodes. Communication continuity is maintained through RDCO-01 and RDCO-04 DDCS communication option boards, which bridge the APOW series controller to ABB ACS800 variable frequency drives on the execution layer. The NPBA-12 Profibus DP adapter module further extends network reach, enabling integration with third-party SCADA systems and Siemens S7 PLCs in hybrid automation environments.

At the human-machine interface layer, ABB Panel Builder 800 operator terminals and CP600 HMI panels receive process visualization data from the APOW series controller, with the APOW-01C ensuring the control backplane remains energized even during grid fluctuations. For redundancy-critical applications, a second APOW-01C unit can be installed in parallel, with automatic switchover logic preventing any interruption to the APOW-01 CPU or connected I/O modules during a primary supply fault.

Application in Layered Automation Systems

The APOW-01C is deployed across a wide range of demanding industrial sectors where control system reliability is non-negotiable. In electric power generation and grid management facilities, the module sustains the DCS power rail that governs turbine governor control, excitation regulation, and protection relay coordination — environments where a millisecond of power interruption can trigger cascading plant trips. Its redundant power architecture is particularly valued in nuclear auxiliary systems and hydroelectric station control rooms.

In petrochemical and oil refinery process control, the APOW-01C supports continuous operation of ABB APOW series controllers managing distillation column temperature loops, reactor pressure control, and compressor surge protection sequences. The module’s industrial-grade design tolerates the electromagnetic interference generated by large motor drives and high-voltage switchgear common in these environments.

Mining and mineral processing operations rely on the APOW-01C to maintain power integrity for conveyor belt automation, crusher control, and flotation cell management systems. In steel and metallurgical plants, the module energizes the DCS infrastructure controlling electric arc furnace electrode regulation, rolling mill speed references, and continuous casting machine sequencing. Water and wastewater treatment facilities use the APOW-01C within pump station automation panels, where reliable 24 VDC supply is essential for maintaining SCADA communication links and remote I/O integrity across geographically distributed pump stations.

Packaging and food processing lines benefit from the APOW-01C’s stable power delivery to high-speed I/O modules that coordinate servo drive positioning, vision system triggers, and reject gate actuators — applications where power noise directly translates to positioning errors and product quality defects.

Architecture Engineering FAQ

Q1: Is the APOW-01C compatible with all ABB APOW series racks and backplanes?
The APOW-01C is designed specifically for ABB APOW series system racks and is electrically and mechanically compatible with standard APOW backplane configurations. It interfaces directly with the APOW-01 master controller and associated AINT and IOEC I/O modules. For hybrid installations involving ACS800 drive systems with RDCO communication boards, the APOW-01C provides the stable 24 VDC supply required by the DDCS fiber optic interface. Always verify the rack revision and firmware version of the APOW-01 CPU before installation to ensure full Contextual Integration across the control platform.

Q2: Can two APOW-01C units be configured for redundant power operation, and what is required?
Yes. The APOW-01C supports hot-standby parallel redundancy when two units are installed in the same rack with appropriate diode-OR or active redundancy circuitry. In this configuration, if the primary APOW-01C fails, the secondary unit assumes full load without interrupting the APOW-01 CPU, I/O modules, or communication boards. No additional software configuration is required on the controller side — the redundancy is handled at the hardware power distribution level. This architecture is strongly recommended for continuous process applications in petrochemical, power generation, and water treatment facilities.

Q3: What does the 12-Month Warranty cover, and how is long-term maintenance supported?
Every APOW-01C CODE 64493663B supplied by ZYPLC is backed by a 12-Month Warranty covering manufacturing defects, electrical failure under normal operating conditions, and component-level faults. The warranty period begins from the date of shipment. For long-term maintenance planning, ZYPLC maintains standing inventory of APOW-01C units to support emergency replacement requirements, minimizing plant downtime during unplanned failures. Customers operating large fleets of ABB APOW series systems are encouraged to maintain at least one spare APOW-01C per control cabinet as part of a proactive spare parts management strategy. Technical support for installation, commissioning, and fault diagnosis is available through our engineering team.
