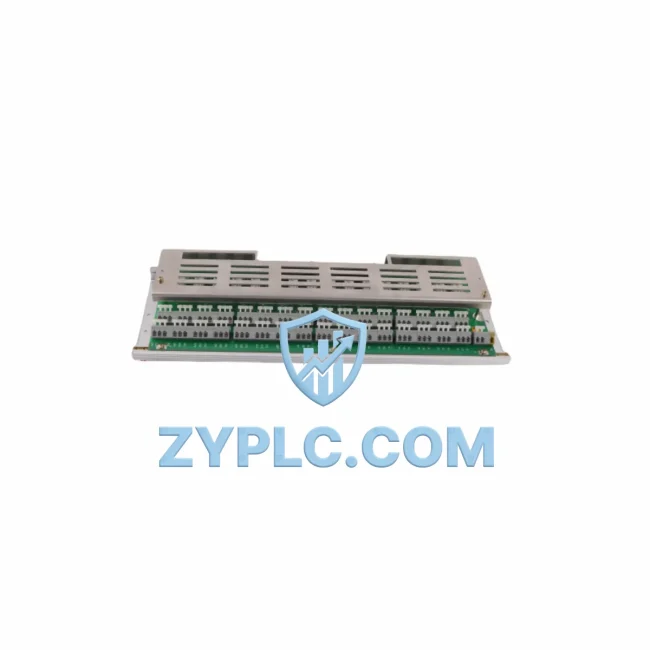

ABB ARC093AE01 System-Ready Analog Output Card for AC800M Architecture

ABB ARC093AE01 System-Ready Analog Output Card for AC800M Architecture

In a fully integrated distributed control system, every module must perform a defined role within a coherent signal chain. The ABB ARC093AE01 (HIEE300690R0001) is an analog output card engineered specifically for deployment within the AC800M controller platform — ABB’s flagship DCS architecture for process-critical industries. Rather than functioning as a standalone component, the ARC093AE01 is designed to operate as a precision output node within a layered automation hierarchy, translating digital control commands from the CPU into calibrated analog signals that drive field actuators, control valves, variable frequency drives, and positioners.

Understanding the ARC093AE01 requires understanding the system it inhabits. The AC800M architecture is built around a modular, rack-based philosophy where the controller, I/O modules, communication interfaces, and power supplies are tightly coordinated. The ARC093AE01 occupies the I/O layer of this hierarchy, receiving setpoint data from the PM860 or PM861 processor module via the internal S800 I/O bus, and converting those values into 4–20 mA or 0–10 V analog output signals with high resolution and low latency. This tight coupling between the control layer and the output layer is what enables the AC800M platform to achieve the deterministic response times demanded by continuous process control applications.

Architecture Specification Table

Coordinated Control System Design

The ARC093AE01 does not operate in isolation — its value is realized through its integration with the broader AC800M control architecture. At the control layer, the PM860 or PM861 processor module executes the control application and generates analog setpoints that are passed down to the I/O layer via the S800 backplane. The ARC093AE01 receives these setpoints and converts them into field-level analog signals with the precision required for tight loop control.

Physical connectivity between the ARC093AE01 and field wiring is managed through the TB840 termination board, which provides a clean, labeled terminal interface that simplifies both initial commissioning and long-term maintenance. In redundant system configurations, the CI840A communication interface module can be used alongside the I/O modules to ensure that a single point of failure in the communication path does not interrupt process control — a critical requirement in continuous process industries such as oil refining, chemical production, and power generation.

At the network layer, the CI810B and CI830 PROFIBUS communication modules extend the AC800M’s reach to field devices and remote I/O stations, enabling the ARC093AE01’s outputs to be coordinated with inputs gathered from distributed sensor networks. Analog input data from the AI810 module, for example, can be processed by the PM861 and the resulting control action delivered through the ARC093AE01 — completing a closed-loop control cycle entirely within the AC800M ecosystem.

Power integrity across the I/O rack is maintained by the SA801F power supply module, which provides regulated, filtered DC power to all S800 I/O modules including the ARC093AE01. In high-availability installations, a redundant SA811F power supply can be added to eliminate power-related single points of failure. The DP840 diagnostic panel further enhances system visibility by providing real-time status indication for power, communication, and module health — enabling maintenance teams to identify and resolve issues before they escalate to process disruptions.

This level of system integration — from the PM860 processor through the CI810B communication gateway, across the TB840 termination board, and out through the ARC093AE01 to the field — is what defines the AC800M as a true system architecture rather than a collection of individual components. The ARC093AE01 is a precision instrument within that architecture, and its correct specification, installation, and maintenance are essential to the overall system’s performance.

Application in Layered Automation Systems

The ARC093AE01 finds application across a wide range of process industries where reliable, high-resolution analog output is essential to safe and efficient operation. In power generation facilities, the module drives control signals to turbine governor actuators and boiler feedwater control valves, where output accuracy directly affects generation efficiency and grid stability. In petrochemical and refining plants, the ARC093AE01 controls flow control valves, pressure regulators, and heat exchanger bypass valves within continuous distillation and reaction processes.

Water and wastewater treatment facilities rely on analog output modules like the ARC093AE01 to modulate pump speed references, chemical dosing rates, and aeration blower outputs — all of which require smooth, continuous analog control rather than discrete on/off switching. In mining and metallurgical operations, the module supports conveyor speed control, flotation cell level regulation, and furnace temperature management within large-scale SCADA and DCS architectures.

Packaging and discrete manufacturing lines that incorporate process control elements — such as tension control, web speed regulation, or temperature profiling — also benefit from the ARC093AE01’s integration within the AC800M platform, particularly where a unified control architecture is preferred over a mix of standalone controllers. In all of these applications, the 12-Month Warranty provided by ZYPLC ensures that procurement teams can plan maintenance budgets with confidence, and that replacement modules are available from verified stock when needed.

Architecture Engineering FAQ

Q1: Is the ARC093AE01 compatible with both the AC800M and the older AC800F controller platforms?
The ARC093AE01 is designed for the S800 I/O system, which is the native I/O platform for the AC800M controller. While some S800 modules can be used with the AC800F via appropriate communication interfaces, system integrators should verify compatibility with the specific firmware and hardware revision of their AC800F installation before specifying the ARC093AE01 in that context. For AC800M-based systems, the ARC093AE01 is a fully supported and validated component.

Q2: Can the ARC093AE01 be used in a redundant I/O configuration, and what additional components are required?
Yes, the AC800M architecture supports redundant I/O configurations. Achieving I/O redundancy typically requires the use of redundant communication interfaces such as the CI840A, along with appropriate redundant power supply modules (SA811F) and a system configuration that supports switchover logic. The ARC093AE01 itself is installed in the standard S800 rack, and redundancy is managed at the system architecture level rather than within the individual module. Engineering teams should consult the AC800M I/O redundancy application guide for detailed configuration requirements.

Q3: What does the 12-Month Warranty from ZYPLC cover, and how does it support long-term maintenance planning?
The 12-Month Warranty provided by ZYPLC covers the ARC093AE01 against defects in materials and workmanship under normal operating conditions. All modules supplied by ZYPLC are tested prior to shipment and sourced from verified supply channels. For maintenance engineers managing aging AC800M installations, ZYPLC’s in-stock availability and warranty coverage provide a reliable procurement pathway for both planned replacements and emergency spares — reducing the risk of extended process downtime due to unavailable or unverified components.
