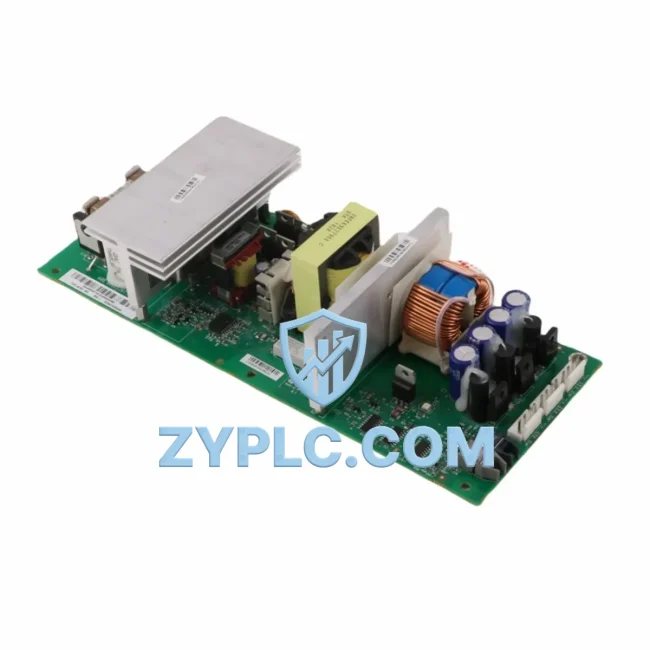

The ABB BFPS-95C (part number 3AXD50000043370) is a dedicated internal power supply board engineered for the ACS880 series of industrial AC drives. Within a layered automation architecture, the power layer is the silent backbone that determines whether every other subsystem — from the control CPU to the I/O modules, communication gateways, and HMI panels — can operate with the stability and continuity that modern process industries demand. The BFPS-95C fulfills this role with precision, delivering regulated DC voltages to the drive’s internal logic, gate driver circuits, and measurement electronics, ensuring that the entire ACS880 drive platform performs within its rated parameters across demanding industrial environments.

Unlike generic replacement components, the BFPS-95C is a factory-matched board designed to integrate seamlessly into the ACS880 drive’s internal architecture. Its electrical characteristics are calibrated to the ACS880 control platform, meaning that voltage tolerances, ripple suppression, and thermal performance are all optimized for the specific load profile of the drive’s internal subsystems. This level of contextual integration eliminates the compatibility risks associated with third-party alternatives and ensures that the drive’s IGBT gate drivers, resolver interfaces, and encoder feedback circuits receive clean, stable power throughout the operational lifecycle.

Architecture Specification Table

Coordinated Control System Design

The BFPS-95C does not operate in isolation — it is one node in a tightly coordinated ACS880 drive architecture. Understanding its role requires examining the full system stack. At the control layer, the ACS880 relies on its ZCON control board or AINT interface board to execute the drive’s vector control algorithms, manage speed and torque references, and communicate with the plant-level PLC. The BFPS-95C supplies the stable DC rails that keep these control boards operational, making it a foundational dependency for the entire drive’s intelligence layer.

At the I/O layer, the ACS880 platform supports a range of I/O extension modules — including the AIAO-01 analog I/O extension and ADIO-01 digital I/O module — which connect to the drive’s control board via the drive’s internal bus. These modules rely on the power supply board to maintain consistent logic-level voltages, particularly in applications where analog signal accuracy is critical, such as flow control in water treatment or pressure regulation in petrochemical processes.

The communication layer of the ACS880 architecture typically includes fieldbus adapter modules such as the FPBA-01 PROFIBUS-DP adapter, FENA-21 Ethernet/IP and PROFINET adapter, or FDNA-01 DeviceNet adapter. These modules are mounted in the drive’s option slots and draw power from the drive’s internal supply rails — rails that the BFPS-95C is responsible for maintaining. In distributed control architectures where the ACS880 is integrated into a PROFINET or EtherNet/IP network alongside Siemens S7-series PLCs or Allen-Bradley ControlLogix controllers, the stability of the fieldbus communication is directly dependent on the integrity of the drive’s internal power supply.

At the human-machine interface layer, operators interact with the ACS880 through the ACS-AP-I or ACS-AP-W control panels, or through remote HMI systems connected via the drive’s fieldbus interface. Panel communication and parameter access require the drive’s control board to be continuously powered — a function the BFPS-95C supports. In redundant drive configurations, where a standby ACS880 unit is maintained in hot-standby mode, the power supply board in the standby unit must also remain energized to ensure seamless switchover without process interruption.

At the execution layer, the ACS880 drives motors ranging from standard induction motors to permanent magnet synchronous motors and synchronous reluctance motors. The gate driver circuits that control the IGBT switching — and therefore the motor’s speed, torque, and direction — are powered by the BFPS-95C’s output rails. Any degradation in the power supply board’s output directly affects gate driver timing, which can manifest as increased harmonic distortion, reduced motor efficiency, or in severe cases, drive fault trips. Maintaining a stocked BFPS-95C as a critical spare is therefore a standard practice in facilities where ACS880 drives are deployed in continuous-process applications.

Application in Layered Automation Systems

The BFPS-95C finds application across a broad range of industrial sectors where the ACS880 drive platform is deployed as the primary variable speed drive solution. In manufacturing and automotive assembly lines, ACS880 drives control conveyor systems, robotic joint actuators, and precision positioning axes. The power supply board’s role in maintaining gate driver stability is critical in these applications, where motor control accuracy directly affects product quality and throughput.

In the power generation and electrical utility sector, ACS880 drives are used in wind turbine pitch control systems, hydroelectric generator excitation systems, and grid-connected energy storage applications. These environments demand the highest levels of drive reliability, and the BFPS-95C’s factory-matched design ensures that the drive’s internal power architecture meets the stringent availability requirements of utility-grade installations.

In petrochemical and oil and gas facilities, ACS880 drives control compressors, pumps, and agitators in hazardous area applications. The drive’s internal power supply must maintain stable operation across wide ambient temperature ranges and in the presence of electrical noise from variable loads and switching equipment. The BFPS-95C’s design addresses these challenges through its integration with the ACS880’s EMC-filtered internal architecture.

Water and wastewater treatment plants rely on ACS880 drives for pump and blower control in both municipal and industrial applications. In these facilities, drives often operate continuously for extended periods, making the availability of critical spare parts — including the BFPS-95C power supply board — a key element of the plant’s maintenance strategy. Mining and minerals processing operations, where ACS880 drives control crushers, conveyors, and hoists, similarly depend on rapid access to replacement boards to minimize unplanned downtime in high-value production environments.

Architecture Engineering FAQ

Q1: Is the BFPS-95C 3AXD50000043370 compatible with all ACS880 drive frame sizes?
The BFPS-95C is designed for specific frame sizes within the ACS880 series. Compatibility depends on the drive’s frame size and hardware revision. Before ordering, confirm the drive’s type designation and hardware revision from the drive’s nameplate or the ACS880 hardware manual. ABB’s drive documentation provides a cross-reference between frame sizes and compatible internal boards. If you require assistance confirming compatibility for your specific ACS880 unit, our technical team can support verification based on the drive’s full type code.

Q2: Can the BFPS-95C be installed without recalibrating the ACS880 drive’s parameters?
In most cases, replacing the BFPS-95C power supply board does not require parameter recalibration, as the board does not store drive parameters — these are retained in the drive’s control board memory or on the ACS-AP panel’s parameter backup function. However, it is recommended to perform a full drive self-test and verify all I/O signals and communication links after board replacement, following the ACS880 hardware manual’s commissioning checklist. For drives integrated into safety-rated applications using the ACS880’s FSO-12 or FSO-21 safety functions module, a safety function verification test must be performed after any internal hardware replacement.

Q3: What does the 12-Month Warranty cover, and how is it supported for international customers?
All BFPS-95C units supplied by ZYPLC are covered by a 12-Month Warranty from the date of dispatch. The warranty covers manufacturing defects and functional failures under normal operating conditions. Units are tested prior to shipment using ACS880-compatible test rigs to verify output voltage regulation and ripple performance. For international customers, warranty claims are supported via our technical team at plc.sales@zyplc.com. Replacement or repair logistics are coordinated on a case-by-case basis to minimize system downtime. Contextual Integration support — including installation guidance and compatibility verification — is available throughout the warranty period at no additional charge.
