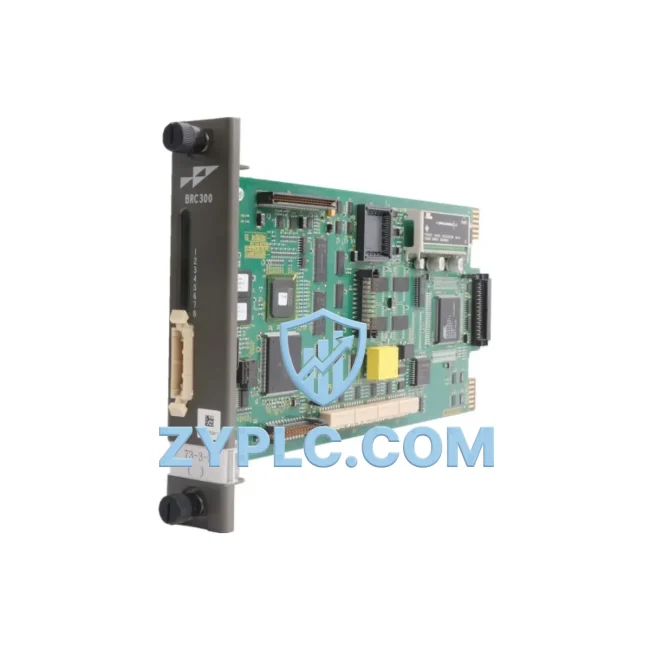

The ABB BRC300 (P-HC-BRC-30000000) is a high-performance Distributed Control System (DCS) controller module purpose-built for deployment within ABB’s Symphony Plus control platform. Rather than functioning as a standalone unit, the BRC300 is engineered to serve as the central processing and coordination node within a layered automation architecture — managing real-time process data, executing control logic, and maintaining deterministic communication across all connected subsystems. In complex industrial environments where system consistency, redundancy, and long-term maintainability are non-negotiable, the BRC300 delivers the architectural backbone that keeps operations running without interruption.

Within the Symphony Plus framework, the BRC300 operates at the control layer, interfacing directly with I/O modules, field devices, and supervisory systems. Its role is not limited to logic execution — it actively coordinates signal flow between the field instrumentation layer and the operator interface layer, ensuring that process variables are accurately acquired, processed, and acted upon within defined cycle times. This makes the BRC300 an indispensable component in any Symphony Plus-based system where process integrity and response latency are critical parameters.

Architecture Specification Table

Coordinated Control System Design

The BRC300’s true value emerges when evaluated within the context of a fully integrated Symphony Plus control system. At the control layer, the BRC300 works in tandem with the ABB PM866 process controller and the ABB AC800M controller family, enabling seamless migration paths and hybrid architectures where legacy and modern control nodes must coexist on a shared network backbone. The BRC300’s Harmony Bus interface ensures deterministic data exchange with upstream supervisory systems and downstream I/O clusters without introducing latency or packet loss.

At the I/O layer, the BRC300 coordinates with ABB S800 I/O modules — including AI810 analog input, AO810 analog output, DI810 digital input, and DO810 digital output modules — to acquire and actuate field signals across the process. These modules mount directly onto TB820 ModuleBus Modem termination units, which provide the physical and electrical interface between the controller backplane and field wiring. This modular I/O architecture allows engineers to expand system capacity without reconfiguring the controller logic, significantly reducing commissioning time during plant expansions.

For network-layer integration, the BRC300 interfaces with ABB CI854 PROFIBUS DP communication interface modules, enabling connectivity to third-party field devices, variable frequency drives, and intelligent motor control centers. This communication gateway capability is essential in brownfield installations where existing PROFIBUS networks must be preserved while upgrading the central control platform to Symphony Plus. The BRC300 manages these multi-protocol environments natively, maintaining system coherence across heterogeneous device ecosystems.

Power integrity is maintained through ABB SD802F redundant power supply modules, which provide dual-feed power distribution to the controller rack. In high-availability applications, the BRC300 supports hot-standby redundancy configurations where a secondary controller module mirrors the primary in real time — ensuring bumpless transfer in the event of a primary controller fault. This redundancy architecture is particularly critical in continuous process industries where unplanned shutdowns carry significant financial and safety consequences.

At the human-machine interface layer, the BRC300 integrates with ABB Symphony Plus Operator Workplace (OWS) stations running the 800xA or Symphony Plus HMI environment, providing operators with real-time process visualization, alarm management, and trend analysis. The controller’s high-speed data reporting capability ensures that operator displays reflect current process states with minimal latency, supporting informed decision-making during abnormal operating conditions.

Application in Layered Automation Systems

The BRC300 is deployed across a wide spectrum of industrial sectors where process reliability and system scalability are paramount. In power generation and transmission facilities, the BRC300 manages turbine control sequences, boiler automation, and grid synchronization logic within Symphony Plus architectures that must maintain continuous operation across multi-year maintenance cycles. Its redundant controller configuration ensures that planned maintenance on one controller node does not interrupt the broader control system.

In petrochemical and refinery applications, the BRC300 handles complex regulatory control loops — including cascade, ratio, and feedforward control strategies — that govern distillation columns, heat exchangers, and reactor systems. The controller’s IEC 61131-3 compliant programming environment allows process engineers to implement and modify control strategies without requiring specialized vendor tooling, reducing long-term engineering dependency costs.

For water and wastewater treatment plants, the BRC300 provides the centralized control intelligence for pump sequencing, chemical dosing, filtration control, and SCADA integration. Its PROFIBUS DP communication capability enables direct interfacing with submersible pump drives, flow meters, and analytical instruments distributed across geographically dispersed treatment facilities. The controller’s robust operating temperature range and industrial-grade construction ensure reliable performance in the humid, chemically aggressive environments typical of water treatment infrastructure.

In mining and metallurgical operations, the BRC300 supports ore processing control, conveyor management, crusher sequencing, and smelter automation. The controller’s ability to manage high I/O counts through S800 module expansion makes it well-suited for large-scale mining automation projects where hundreds of field signals must be processed simultaneously. Its long-term parts availability and 12-Month Warranty support the extended asset lifecycles typical of mining capital equipment.

Across packaging and discrete manufacturing production lines, the BRC300 coordinates with servo drives, vision systems, and robotic work cells through its multi-protocol communication interfaces, enabling tightly synchronized production sequences that maximize throughput and minimize changeover time. The controller’s modular architecture allows production engineers to add new I/O capacity as product lines evolve, protecting the initial capital investment in the control system infrastructure.

Architecture Engineering FAQ

Q1: Is the BRC300 compatible with existing Symphony Plus and Harmony DCS installations, and can it be integrated without a full system replacement?
Yes. The BRC300 is designed for both greenfield Symphony Plus deployments and brownfield integration into existing Harmony DCS architectures. It supports the Harmony Bus communication protocol natively, allowing it to coexist with legacy Harmony controllers and I/O modules during phased migration projects. Engineers can introduce the BRC300 as an incremental upgrade — replacing aging controller nodes one at a time — while maintaining continuous operation of the broader control system. Compatibility with existing S800 I/O modules and TB820 termination units further reduces the hardware replacement scope during migration.

Q2: What redundancy configurations does the BRC300 support, and how is bumpless failover achieved in high-availability applications?
The BRC300 supports hot-standby dual-controller redundancy, where a secondary BRC300 module continuously mirrors the primary controller’s memory state and I/O data. In the event of a primary controller fault — whether hardware failure, firmware exception, or power interruption — the standby controller assumes control within milliseconds, with no perceptible disruption to the controlled process. This bumpless transfer capability is achieved through the Symphony Plus redundancy management layer, which synchronizes controller states at each scan cycle. For maximum availability, the redundant controller pair should be powered by independent SD802F power supply modules fed from separate electrical circuits.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance of BRC300 installations?
The 12-Month Warranty covers all hardware defects, component failures, and functional non-conformances identified under normal operating conditions from the date of shipment. Warranty service includes module replacement or repair at no additional cost. For long-term maintenance, ZYPLC maintains inventory of BRC300 modules and associated Symphony Plus components to support emergency replacement requirements with rapid global shipping. Customers are encouraged to maintain a strategic spare inventory of BRC300 modules — particularly in critical process applications — to minimize exposure to lead time risk. Our technical team is available to assist with installation verification, firmware compatibility assessment, and system integration support throughout the product lifecycle.
