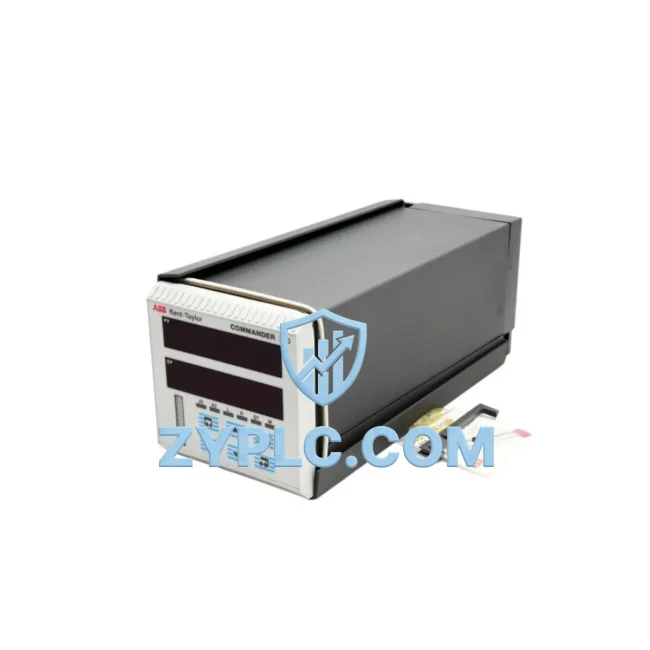

The ABB C300/0010/STD is a high-performance process controller engineered for seamless integration within the ABB Commander 300 Distributed Control System (DCS) architecture. Designed to operate at the core of the control layer, this module delivers deterministic scan-cycle execution, robust signal conditioning, and reliable upstream communication to supervisory systems. In modern industrial automation environments — where control consistency, system scalability, and long-term maintainability are non-negotiable — the C300/0010/STD represents a proven, field-validated solution trusted across process-intensive industries worldwide.

Unlike standalone controllers, the C300/0010/STD is purpose-built for contextual integration within a layered automation hierarchy. Its architecture supports coordinated operation across the control layer, I/O subsystem, network infrastructure, power distribution, HMI interface, and field execution layer. This contextual design philosophy ensures that every signal path, every redundancy handshake, and every diagnostic event is handled within a unified system framework — reducing engineering overhead and improving overall plant reliability.

Architecture Specification Table

Coordinated Control System Design

The C300/0010/STD does not operate in isolation — its value is fully realized when deployed within a complete Commander 300 system architecture. At the control layer, it works in tandem with the ABB C300/0020/STD and C300/0030/STD controller variants to provide scalable processing capacity across large-scale process plants. The controller interfaces directly with the ABB IMFEC11 and IMFEC12 field I/O modules, which handle analog and digital signal acquisition from field instrumentation, ensuring clean, conditioned data reaches the control execution engine.

Power integrity is maintained through the ABB Commander 300 system power supply modules, which provide regulated 24 VDC to the backplane and all connected modules. For applications requiring continuous operation, the architecture supports dual power feed configurations, eliminating single points of failure at the power layer. The backplane itself — the ABB C300 rack assembly — provides the physical and electrical backbone that interconnects the controller, I/O modules, and communication interfaces within a single, organized enclosure.

At the network layer, the C300/0010/STD communicates upstream to SCADA and MES platforms via ABB PROFIBUS DP gateway modules or Modbus RTU communication interfaces, enabling real-time data exchange with plant-wide supervisory systems. For human-machine interface requirements, the controller integrates with ABB CP600 series HMI panels, providing operators with live process visualization, alarm management, and setpoint adjustment capabilities directly from the control room or field panel.

In redundancy-critical applications, the C300/0010/STD supports hot-standby pairing with a secondary controller module, ensuring bumpless transfer in the event of a primary controller fault. This redundancy architecture is particularly valuable in continuous process industries where unplanned downtime carries significant operational and financial consequences. Complementing this, ABB IMASI23 analog input modules and IMDSO14 digital output modules extend the I/O capacity of the system, supporting complex multi-loop control strategies without requiring additional controller hardware.

Application in Layered Automation Systems

The ABB C300/0010/STD has established a strong operational track record across a wide range of process-intensive industries. In oil refining and petrochemical plants, it manages multi-loop PID control for distillation columns, heat exchangers, and reactor temperature regulation — environments where control precision and system uptime are directly linked to product quality and safety compliance. Its deterministic scan cycle ensures that critical process variables are evaluated and acted upon within defined time windows, regardless of system load.

In power generation facilities — including thermal, hydro, and combined-cycle plants — the C300/0010/STD is deployed within turbine control panels and boiler management systems, where it coordinates with protection relays, excitation controllers, and load dispatch systems. Its compatibility with PROFIBUS DP communication allows seamless integration into plant-wide energy management architectures.

For water and wastewater treatment plants, the controller manages pump sequencing, chemical dosing, filtration control, and effluent monitoring across distributed treatment stages. Its modular architecture allows plant engineers to expand I/O capacity incrementally as treatment capacity grows, without replacing the core control infrastructure. Similarly, in mining and mineral processing operations, the C300/0010/STD handles conveyor control, crusher management, and flotation cell regulation — applications characterized by high vibration, dusty environments, and demanding duty cycles.

In pharmaceutical and food & beverage manufacturing, where batch process control and regulatory compliance are paramount, the C300/0010/STD supports recipe-driven control strategies and audit trail logging, ensuring that every production batch is executed consistently and traceably. Its integration with ABB HMI platforms enables operators to monitor critical quality parameters in real time, reducing the risk of out-of-specification production.

Across all these applications, the C300/0010/STD delivers a consistent combination of control reliability, system scalability, and long-term maintainability — backed by ZYPLC’s 12-Month Warranty and global inventory supply capability.

Architecture Engineering FAQ

Q1: Is the ABB C300/0010/STD compatible with existing Commander 300 system racks and backplanes?
Yes. The C300/0010/STD is designed for direct installation into standard ABB Commander 300 rack assemblies. It is electrically and mechanically compatible with the existing backplane bus, power supply modules, and I/O expansion cards within the Commander 300 platform. No additional interface adapters or firmware modifications are required for standard replacement or system expansion deployments. Engineers should verify the firmware revision of the existing system against the module’s supported firmware range prior to installation to ensure full feature compatibility.

Q2: Can the C300/0010/STD be configured for hot-standby redundancy, and what additional components are required?
Yes. The C300/0010/STD supports hot-standby controller redundancy within the Commander 300 architecture. A redundant configuration requires a second C300/0010/STD module installed in a designated redundancy slot within the same or a paired rack assembly, along with the appropriate redundancy synchronization cable and system configuration settings applied via the ABB Commander 300 engineering workstation. In a correctly configured redundant pair, the standby controller continuously mirrors the active controller’s memory state, enabling bumpless transfer with no process disruption in the event of a primary controller fault.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance for this module?
ZYPLC’s 12-Month Warranty covers manufacturing defects, functional failures under normal operating conditions, and verified compatibility issues identified during system commissioning. Each C300/0010/STD unit is fully tested prior to dispatch using functional test benches that simulate real Commander 300 system conditions. For long-term maintenance support, ZYPLC maintains a dedicated inventory of ABB Commander 300 series components — including controller modules, I/O cards, power supplies, and communication interfaces — enabling rapid replacement supply to minimize plant downtime. Our technical team is available to assist with compatibility verification, installation guidance, and system architecture consultation.
