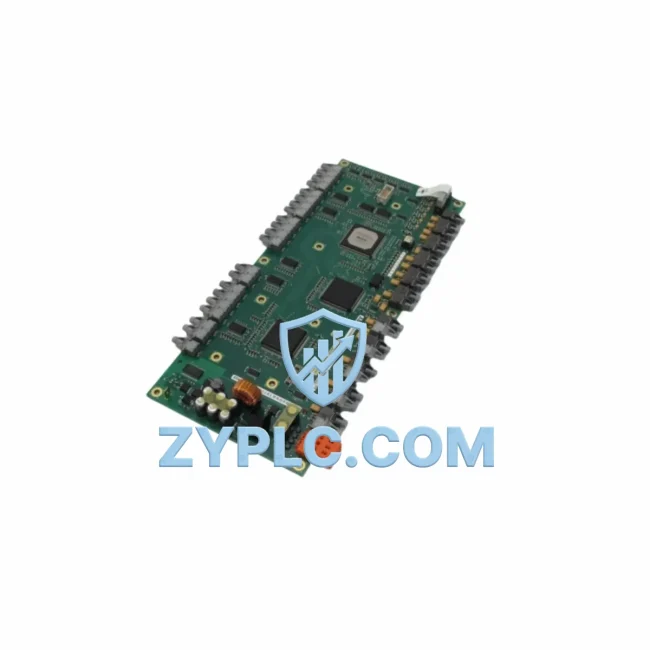

ABB C718 AE101 HIEE300936R0101 System-Ready DCS Controller for AC 800M Architecture

ABB C718 AE101 HIEE300936R0101 System-Ready DCS Controller for AC 800M Architecture

The ABB C718 AE101 HIEE300936R0101 is a high-performance DCS controller module engineered for deployment within ABB’s AC 800M distributed control system architecture. Rather than functioning as a standalone component, this module is designed from the ground up to operate as a central processing node within a layered automation hierarchy — coordinating signal acquisition, logic execution, and inter-system communication across the full control stack. In modern industrial facilities, where uptime, scalability, and deterministic response are non-negotiable, the C718 AE101 HIEE300936R0101 delivers the processing backbone that keeps every layer of the control architecture synchronized and responsive.

Understanding this module’s value requires viewing it through the lens of the complete AC 800M system architecture. From the field instrument layer through I/O signal conditioning, controller processing, network communication, and up to the operator interface, the C718 AE101 HIEE300936R0101 occupies the critical control layer — the point at which raw process data is transformed into actionable control outputs. Its integration with ABB’s S800 I/O modules, PM866 and PM891 processor units, and CI854 PROFIBUS communication interfaces ensures that signal flow remains coherent and latency-controlled across all process loops.

Engineered for demanding industrial environments, this module supports hot-standby redundancy configurations when paired with a redundant controller unit, enabling seamless failover without process interruption. This capability is essential in applications such as power generation, petrochemical refining, and water treatment, where a single point of failure in the control layer can result in significant production loss or safety incidents. The C718 AE101 HIEE300936R0101 is fully compatible with ABB’s redundancy switching logic, ensuring that the transition between primary and standby controllers is transparent to the process.

From a network architecture perspective, the module integrates natively with ABB’s MMS (Manufacturing Message Specification) and OPC DA/UA communication layers, enabling seamless data exchange with SCADA platforms, historian servers, and MES systems. When combined with CI840A or CI858 fieldbus communication modules, the controller can manage distributed I/O nodes across PROFIBUS DP, FOUNDATION Fieldbus H1, and Modbus RTU networks — providing the communication flexibility required in multi-vendor plant environments.

Installation and commissioning of the C718 AE101 HIEE300936R0101 follow ABB’s standard rack-mount procedures using the TB820V2 or TB840A termination units, ensuring compatibility with existing cabinet wiring infrastructure. The module’s firmware is managed through ABB’s Control Builder M engineering environment, which supports online parameter modification, diagnostic monitoring, and version-controlled configuration backup — significantly reducing commissioning time and the risk of configuration errors during system upgrades or module replacements.

Long-term maintainability is a core design principle of the AC 800M platform. The C718 AE101 HIEE300936R0101 supports online replacement without system shutdown when operating in redundant configurations, and its diagnostic registers provide real-time health monitoring accessible through the system’s HMI layer — typically implemented via ABB’s 800xA Extended Automation System or third-party SCADA platforms. This transparency into module health enables predictive maintenance strategies that extend system lifecycle and reduce unplanned downtime.

All units supplied by ZYPLC are sourced from verified industrial channels, fully tested under operational conditions, and covered by a 12-Month Warranty. Our inventory management ensures consistent stock availability for both immediate replacement needs and planned system expansions, supporting your procurement and maintenance schedules without lead-time uncertainty.

Architecture Specification Table

Coordinated Control System Design

The C718 AE101 HIEE300936R0101 achieves its full potential when deployed as part of a coordinated AC 800M control system architecture. At the processor level, it operates alongside the PM866 Controller Unit and PM891 Controller Module, which provide the primary CPU resources for complex process control algorithms, while the C718 AE101 handles dedicated control tasks or serves as a redundant processing node. This multi-controller topology is common in large-scale DCS installations where process segmentation improves fault isolation and system maintainability.

At the I/O layer, the module interfaces with ABB’s S800 I/O Series — including AI810 analog input modules, AO810V2 analog output modules, DI810 digital input modules, and DO810 digital output modules — through the S800 I/O bus. These modules connect to field instruments including pressure transmitters, flow meters, temperature sensors, and control valves, providing the physical interface between the process and the control layer. The TB820V2 ModuleBus Modem extends the I/O bus over optical fiber, enabling distributed I/O placement across large plant areas without signal degradation.

For fieldbus communication, the CI854A PROFIBUS DP Master Module and CI858 FOUNDATION Fieldbus HSE Linking Device extend the controller’s reach to intelligent field devices, variable frequency drives, and remote I/O stations. In power distribution applications, this enables direct integration with ABB REF615 protection relays and motor control centers via PROFIBUS, consolidating protection and control functions within a single DCS architecture.

At the network layer, the controller communicates with the 800xA Extended Automation System server infrastructure via Ethernet MMS, providing the data backbone for operator workstations, alarm management, historian integration, and advanced process control applications. The AC 800M Connect software environment enables seamless configuration synchronization between engineering workstations and the live controller, supporting online modifications without process interruption.

Power integrity across the system is maintained by SD821 and SD822 Power Supply Modules, which provide redundant 24VDC rail power to the controller rack and I/O modules. Redundant power configurations ensure that a single power supply failure does not affect controller availability — a critical requirement in continuous process industries.

Application in Layered Automation Systems

The C718 AE101 HIEE300936R0101 is deployed across a wide range of industrial sectors where distributed control system architecture is the standard approach to process automation.

In power generation and transmission facilities, the module manages turbine control sequences, boiler feedwater regulation, and grid synchronization logic, operating in conjunction with protection relay systems and SCADA platforms to maintain generation stability and grid compliance. Its hot-standby redundancy capability is particularly valued in base-load power plants where controller downtime is operationally unacceptable.

In petrochemical and refining applications, the C718 AE101 HIEE300936R0101 controls distillation column operations, reactor temperature profiles, and compressor surge protection sequences. Its deterministic scan cycle ensures that safety-critical control loops maintain response times within process safety requirements, and its integration with safety instrumented systems (SIS) via hardwired I/O or fieldbus communication supports functional safety architectures compliant with IEC 61511.

In water and wastewater treatment plants, the module manages pump sequencing, chemical dosing control, filtration cycle automation, and effluent quality monitoring. Its ability to manage large I/O point counts through distributed S800 I/O stations makes it well-suited to geographically distributed treatment facilities where centralized control is required over multiple process areas.

In mining and mineral processing operations, the controller manages crusher sequencing, conveyor interlocking, flotation cell control, and tailings management systems. The module’s robust operating temperature range and vibration tolerance make it suitable for installation in mining control rooms adjacent to heavy processing equipment.

In pharmaceutical and food processing environments, the C718 AE101 HIEE300936R0101 supports batch process control, CIP (Clean-in-Place) sequence management, and recipe-based production control — all within an IEC 61131-3 compliant programming environment that facilitates regulatory validation and audit trail documentation.

Architecture Engineering FAQ

Q1: Is the C718 AE101 HIEE300936R0101 compatible with existing AC 800M racks and I/O infrastructure without hardware modification?
Yes. The C718 AE101 HIEE300936R0101 is designed for direct installation into standard AC 800M controller racks using ABB’s established mechanical and electrical interface standards. It is compatible with TB820V2 and TB840A termination units, SD821/SD822 power supply modules, and the full S800 I/O module range without requiring rack modifications or additional interface hardware. Configuration is managed through ABB Control Builder M, which supports import of existing project configurations to minimize re-engineering effort during module replacement or system expansion.

Q2: Can this module be used in a redundant controller configuration, and what is required to implement hot-standby failover?
Yes. The C718 AE101 HIEE300936R0101 supports hot-standby redundancy when paired with a second controller unit of the same type in a redundant rack configuration. Failover is managed automatically by the AC 800M redundancy supervisor, with switchover times typically under 100 milliseconds — transparent to most process control loops. Implementation requires a redundant controller rack, redundant power supplies (SD821 or SD822), and a dedicated redundancy link cable between the primary and standby units. No special licensing is required beyond the standard AC 800M software environment.

Q3: What does the 12-Month Warranty cover, and what support is available for commissioning and long-term maintenance?
All C718 AE101 HIEE300936R0101 units supplied by ZYPLC are covered by a comprehensive 12-Month Warranty against manufacturing defects and operational failures under normal industrial operating conditions. The warranty covers module replacement or repair at no additional cost within the warranty period. ZYPLC maintains consistent inventory stock to support both immediate replacement requirements and planned maintenance schedules, minimizing procurement lead times. For commissioning support, technical documentation, and long-term maintenance planning, contact our engineering team at plc.sales@zyplc.com or +86 19859288691.
