ABB CCU-24 H 3AXD50000018771 System-Ready Drive Control for ACS880 Architecture

ABB CCU-24 H 3AXD50000018771 System-Ready Drive Control for ACS880 Architecture: Control System Coordination and Upstream-Downstream Synergy

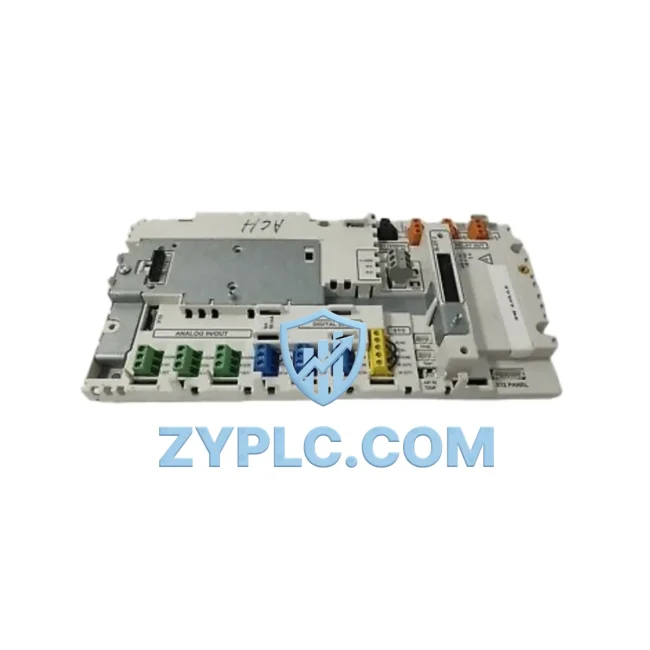

The ABB CCU-24 H (Part No. 3AXD50000018771) is a dedicated Drive Control Unit engineered for seamless integration within the ACS880 industrial drive platform. Rather than functioning as a standalone component, the CCU-24 H is designed to operate as a critical node within a layered automation architecture — coordinating signal flow between the control layer, drive execution layer, fieldbus communication layer, and supervisory systems. Its role in maintaining system consistency, enabling modular expansion, and supporting long-term maintenance efficiency makes it an essential element in any ACS880-based control cabinet deployment.

In modern industrial automation, the reliability of a drive system depends not only on the drive itself but on the coherence of every layer surrounding it. The CCU-24 H serves as the intelligence bridge between the ACS880 drive hardware and the broader control infrastructure, ensuring that command signals from the PLC or DCS are accurately interpreted, executed, and reported back through the communication chain without latency or data loss.

Architecture Specification Table

Coordinated Control System Design

The CCU-24 H does not operate in isolation. Within a complete ACS880 drive system, it works in close coordination with a range of upstream and downstream components. At the control layer, a Siemens S7-1500 or ABB AC500 PLC typically issues motion and speed commands that are relayed through a PROFINET or PROFIBUS fieldbus network to the drive system. The CCU-24 H receives and processes these commands, translating them into precise drive execution instructions.

At the power layer, the ACS880 power unit — often paired with an ABB AINT-02C or AINT-11C inverter control board — supplies the drive stage, while the CCU-24 H manages the control logic independently, ensuring that power fluctuations do not interrupt command processing. This separation of power and control logic is a fundamental principle of robust drive architecture.

For I/O integration, the CCU-24 H interfaces with ABB RDIO-01 digital I/O extension modules and RAIO-01 analog I/O modules, enabling the drive system to receive process feedback signals from field sensors, encoders, and transmitters. This bidirectional signal flow allows the drive to respond dynamically to process conditions — a critical requirement in applications such as variable-speed pump control, conveyor tension management, and compressor regulation.

Communication redundancy is achieved through the use of ABB FPBA-01 PROFIBUS adapter or FENA-21 EtherNet/IP adapter modules, which plug directly into the drive’s option slot and communicate with the CCU-24 H to maintain fieldbus connectivity even during partial system faults. This architecture supports hot-standby configurations in high-availability installations.

At the human-machine interface layer, an ABB CP600 HMI or a third-party SCADA terminal connects to the supervisory network, pulling real-time drive status, fault logs, and energy consumption data that the CCU-24 H continuously updates. This visibility layer is essential for predictive maintenance programs and remote diagnostics.

Terminal modules such as the ABB BCON-11 or BCON-21 backplane connectors ensure that the CCU-24 H is mechanically and electrically secured within the drive cabinet, maintaining signal integrity across vibration-prone industrial environments. Proper torque specifications and cable shielding practices during installation are critical to long-term reliability.

Application in Layered Automation Systems

The ABB CCU-24 H 3AXD50000018771 finds application across a wide range of process-critical industries. In power generation and distribution facilities, it supports variable-speed drives controlling boiler feed pumps, cooling fans, and turbine auxiliary systems, where precise speed regulation and fault-tolerant operation are non-negotiable. The 12-Month Warranty provides plant operators with the assurance needed for long-term maintenance planning.

In petrochemical and refinery environments, the CCU-24 H is deployed within explosion-risk-rated control cabinets, managing compressor drives and agitator motors where Contextual Integration with the plant DCS ensures that drive behavior is always synchronized with process safety logic. Its compatibility with PROFIBUS PA and HART-enabled field devices makes it suitable for integration into existing process instrumentation networks.

Water and wastewater treatment facilities rely on ACS880 drives equipped with CCU-24 H units to manage pump stations, aeration blowers, and sludge handling conveyors. The ability to coordinate multiple drives across a PROFINET network — with each CCU-24 H reporting status to a central SCADA system — enables operators to optimize energy consumption and respond to process upsets in real time.

In mining and mineral processing, the CCU-24 H supports high-torque drive applications including belt conveyors, crushers, and hoists, where the control unit’s ability to handle dynamic load changes and provide accurate torque feedback is essential for both process efficiency and equipment protection. Metallurgical plants similarly benefit from the unit’s robust signal processing in high-EMI environments.

Packaging and discrete manufacturing lines use the CCU-24 H within multi-axis drive systems, where synchronization between multiple ACS880 drives — each managed by its own CCU-24 H — ensures precise product handling, tension control, and throughput consistency. The modular architecture allows engineers to expand the drive system by adding additional drives without redesigning the control network.

Architecture Engineering FAQ

Q1: Is the ABB CCU-24 H 3AXD50000018771 compatible with existing ACS880 drive cabinets, and does it require firmware updates before installation?
The CCU-24 H is designed as a direct replacement and upgrade component for ACS880 drive systems. Before installation, it is recommended to verify the firmware version of the existing drive using ABB Drive Composer software and update to the latest compatible release. The CCU-24 H supports ABB’s standard parameter set, so existing drive configurations can typically be restored via parameter backup without full recommissioning. All units supplied by ZYPLC are tested prior to shipment and covered under a 12-Month Warranty from the date of delivery.

Q2: How does the CCU-24 H support redundant communication architectures in critical process applications?
The CCU-24 H supports dual-channel communication through ABB’s optional fieldbus adapter modules (e.g., FENA-21 for EtherNet/IP or FPBA-01 for PROFIBUS DP). In redundant network topologies, the drive can be configured to switch between primary and secondary communication channels automatically upon detection of a network fault, maintaining uninterrupted control signal flow. This Contextual Integration capability ensures that the drive remains responsive to PLC commands even during partial network failures, which is essential in continuous process industries.

Q3: What long-term maintenance considerations apply to the CCU-24 H in high-cycle industrial environments?
In high-cycle applications such as packaging lines or mining conveyors, periodic inspection of the CCU-24 H’s connector integrity, firmware version, and parameter consistency is recommended at 12-month intervals. ABB Drive Composer Pro enables remote parameter comparison between drives, allowing maintenance engineers to identify configuration drift before it causes process disruption. ZYPLC maintains stock of CCU-24 H units to support rapid replacement programs, and the 12-Month Warranty covers manufacturing defects identified during this maintenance window. Keeping a spare unit on-site is strongly recommended for mission-critical installations.

—
