ABB CI547 3BNP004429R1 System-Ready Communication Interface for Advant Controller Architecture

ABB CI547 3BNP004429R1 System-Ready Communication Interface for Advant Controller Architecture

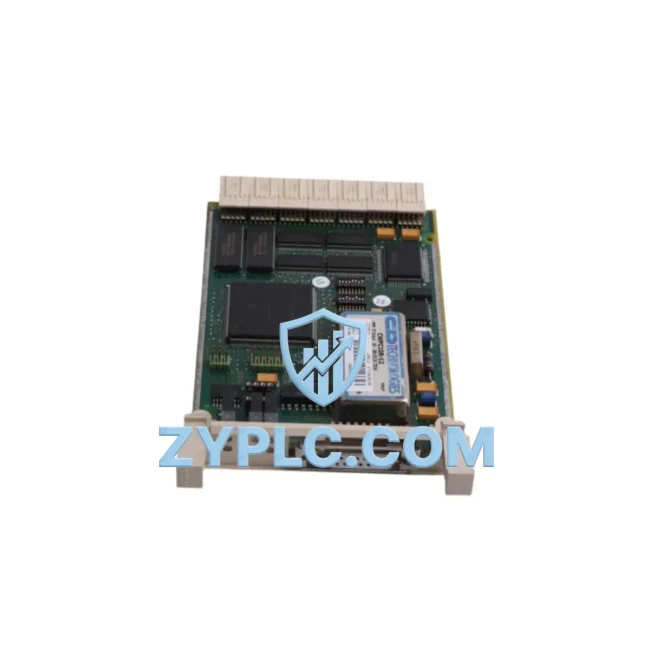

The ABB CI547 (part number 3BNP004429R1) is a dedicated communication interface module engineered for seamless integration within the ABB Advant Controller platform. Rather than functioning as a standalone component, the CI547 occupies a critical position in the layered automation hierarchy — bridging the control layer, I/O layer, and network layer to deliver consistent, deterministic data exchange across the entire control system architecture. In distributed control environments where signal integrity, protocol compatibility, and long-term maintainability are non-negotiable, the CI547 provides the communication backbone that keeps every subsystem synchronized and operationally coherent.

Designed for industrial-grade environments, this module supports the PROFIBUS DP communication protocol, enabling high-speed cyclic data transfer between the Advant Controller CPU and remote I/O stations, intelligent field devices, and third-party automation components. Its role in the system is not merely to pass data — it actively manages the communication cycle, handles error detection, and maintains bus integrity even under electrically noisy industrial conditions. This makes it an indispensable element in any architecture where uptime, redundancy, and predictable response times are engineering requirements rather than aspirational targets.

Architecture Specification Table

Coordinated Control System Design

The CI547 does not operate in isolation — its value is realized through its coordinated role within a complete Advant Controller system architecture. At the control layer, the module interfaces directly with the Advant Controller CPU board (such as the PM511 or PM510 processor modules), receiving configuration parameters and cyclic scan commands that govern the PROFIBUS DP master cycle. The CPU delegates all fieldbus communication tasks to the CI547, freeing processor resources for real-time control execution and ladder logic processing.

At the I/O layer, the CI547 communicates with remote I/O stations equipped with PROFIBUS DP slave interfaces, including ABB’s own S800 I/O modules such as the AI810 analog input module and the DI810 digital input module. These remote stations can be distributed across the plant floor, connected via shielded twisted-pair cable, with the CI547 managing the master-slave polling cycle to ensure all process values are refreshed within the defined scan time. This architecture eliminates the need for point-to-point wiring between the controller cabinet and field instruments, dramatically reducing installation complexity and long-term cable maintenance costs.

At the network layer, the CI547 supports integration with higher-level supervisory systems through the Advant Controller’s native communication stack. When paired with an SC510 or SC520 communication controller, the system can bridge PROFIBUS DP data to MMS (Manufacturing Message Specification) or other plant-level protocols, enabling seamless data flow from field devices to SCADA and DCS platforms. This multi-layer communication capability is essential in large-scale process plants where operational data must be aggregated, historized, and made available to engineering workstations and operator interfaces.

At the power layer, the CI547 relies on the Advant Controller subrack’s internal power distribution, typically supplied by an SD821 or SD822 power supply unit. Proper power architecture — including redundant power supply configurations — ensures that communication integrity is maintained even during partial power events. Engineers specifying the CI547 should account for the module’s backplane current draw when calculating total subrack power budgets, particularly in fully populated racks with multiple I/O and communication modules.

At the human-machine interface layer, operator stations running ABB’s Advant Station AS500 or compatible HMI platforms receive real-time process data aggregated through the CI547’s PROFIBUS DP network. The deterministic communication cycle ensures that display refresh rates and alarm response times meet the requirements of process operators in high-consequence environments. When the CI547 is correctly configured and the PROFIBUS segment is properly terminated, operators experience consistent, low-latency data presentation that supports confident decision-making during normal operations and process upsets alike.

At the execution layer, the CI547 enables direct communication with intelligent field devices including variable frequency drives, smart valve positioners, and motor control centers equipped with PROFIBUS DP interfaces. This allows the Advant Controller to issue setpoint commands and receive feedback signals — such as actual speed, torque, or valve position — within the same communication cycle, closing the control loop with minimal latency and supporting advanced process control strategies.

Application in Layered Automation Systems

Power Generation and Utilities: In thermal power plants and hydroelectric facilities, the CI547 enables the Advant Controller to manage distributed I/O across turbine control panels, generator protection systems, and auxiliary equipment rooms. The PROFIBUS DP network reduces control cabinet wiring density while maintaining the deterministic communication required for turbine speed control and load dispatch applications.

Oil, Gas, and Petrochemical Processing: Refinery and upstream processing facilities rely on the CI547 to integrate the Advant Controller with remote I/O marshalling panels located in hazardous areas. The module’s galvanically isolated RS-485 interface provides inherent protection against ground loops and electrical transients common in petrochemical environments, supporting continuous operation of compressor control, separator management, and pipeline monitoring systems.

Water and Wastewater Treatment: Municipal water authorities and industrial effluent treatment plants use the CI547 to connect the Advant Controller with distributed pump stations, flow meters, and chemical dosing systems. The PROFIBUS DP architecture allows a single controller to supervise multiple remote I/O nodes across a geographically dispersed treatment facility, reducing the need for dedicated local controllers at each pump station.

Mining and Mineral Processing: In ore processing plants and underground mining operations, the CI547 supports the integration of conveyor drive systems, crusher controls, and flotation cell management within a unified Advant Controller architecture. The module’s robust industrial design tolerates the vibration, dust, and temperature extremes characteristic of mining environments.

Metals and Metallurgy: Steel mills and aluminum smelters deploy the CI547 to coordinate rolling mill drives, furnace temperature control, and cooling system management through a single PROFIBUS DP network. The high data transfer rate of up to 12 Mbit/s ensures that fast-response applications — such as tension control in continuous rolling lines — receive process feedback within the required cycle time.

Packaging and Discrete Manufacturing: Automated packaging lines and assembly systems use the CI547 to connect the Advant Controller with servo drives, vision systems, and pneumatic valve islands via PROFIBUS DP. The module’s support for acyclic data exchange enables parameterization of intelligent field devices during production changeovers without interrupting the cyclic control loop.

Architecture Engineering FAQ

Q1: Is the CI547 3BNP004429R1 compatible with all Advant Controller variants, and can it coexist with other communication modules in the same subrack?
The CI547 is designed for use within the ABB Advant Controller platform, including the AC110, AC160, AC410, AC450, and AC460 series. Multiple communication modules — including CI547 units and other interface modules such as CI532 or CI535 — can be installed in the same subrack, subject to the slot allocation rules and backplane power budget of the specific controller variant. Engineers should consult the Advant Controller hardware configuration manual to verify slot compatibility and confirm that the total module count does not exceed the subrack’s maximum supported configuration.

Q2: What steps are required to commission the CI547 in a new PROFIBUS DP segment, and how should bus termination be handled?
Commissioning the CI547 requires configuring the module as the PROFIBUS DP master using the Advant Controller engineering tool (typically MasterView 800 or equivalent). Each slave device on the segment must be assigned a unique station address, and the GSD (General Station Description) file for each slave must be imported into the configuration database. Bus termination resistors must be enabled at both physical ends of the PROFIBUS segment — typically at the CI547’s DB9 connector and at the last slave device. Failure to terminate the bus correctly is the most common cause of intermittent communication errors during commissioning. Cable length limits must also be observed: at 12 Mbit/s, the maximum segment length is 100 meters without repeaters.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance of legacy Advant Controller systems?
The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, electrical overstress, or unauthorized modification. For long-term maintenance of Advant Controller systems — which may no longer be in active production by ABB — sourcing tested, warranted spare modules such as the CI547 3BNP004429R1 from a specialist supplier is the most cost-effective strategy for extending system life without undertaking a full platform migration. Our technical team can assist with compatibility verification, pre-shipment functional testing, and documentation support to ensure that replacement modules integrate correctly into your existing architecture.
