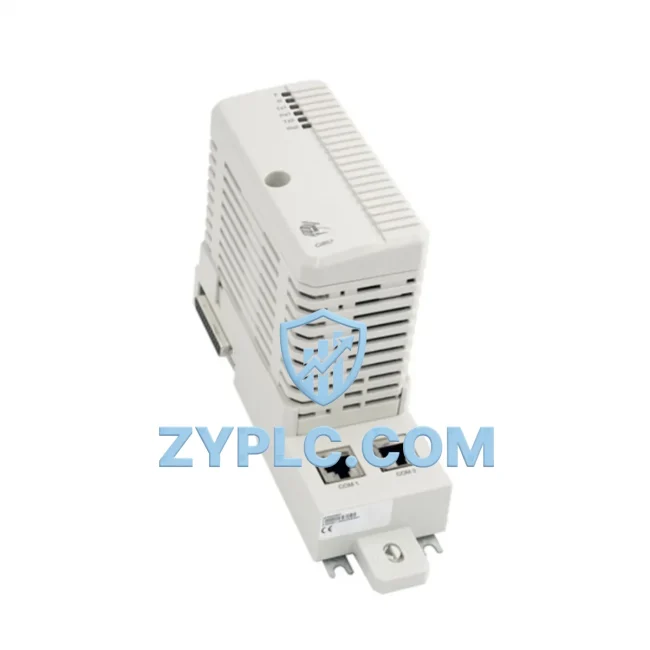

ABB CI857K01 3BSE018144R1 System-Ready Ethernet Interface for AC800M Architecture

ABB CI857K01 3BSE018144R1 System-Ready Ethernet Interface for AC800M Architecture

The ABB CI857K01 (3BSE018144R1) is an INSUM Ethernet communication interface module engineered for seamless integration within the AC800M Distributed Control System (DCS) architecture. Rather than functioning as a standalone component, the CI857K01 is designed as a structural node within a layered automation hierarchy — bridging the control layer, network layer, and field device layer to deliver consistent, high-availability communication across the entire system. In demanding industrial environments such as power generation, petrochemical processing, water treatment, and advanced manufacturing, the integrity of inter-layer communication is as critical as the control logic itself. The CI857K01 addresses this requirement by providing a dedicated, deterministic Ethernet pathway that supports real-time data exchange between the AC800M controller and INSUM-compatible motor control and protection devices.

Within the AC800M platform, the CI857K01 occupies the network communication layer, working in close coordination with the PM866 or PM891 processor modules mounted on the same S800 I/O or TB820 Modulebus carrier. The module connects upstream to the plant-level Ethernet backbone — typically managed through an ABB Industrial Ethernet switch or a redundant ring topology — and downstream to INSUM intelligent motor control centers (MCCs). This architecture enables centralized supervision of motor starters, soft starters, and variable frequency drives without requiring dedicated fieldbus wiring for each device, significantly reducing installation complexity and long-term cable maintenance overhead.

System architects integrating the CI857K01 into a new or retrofit control cabinet will find that the module’s compact form factor and DIN-rail-compatible mounting align with standard AC800M enclosure layouts. The module draws power from the SS822 or SS832 system power supply units, ensuring that communication integrity is maintained even during partial load fluctuations. For redundancy-critical applications, the CI857K01 can be deployed in paired configurations alongside the CI858 or CI854A communication interfaces, allowing the control system to maintain network continuity during single-point failures — a requirement commonly specified in IEC 61511 functional safety assessments for process industries.

Architecture Specification Table

Coordinated Control System Design

The CI857K01 achieves its full value when evaluated within the context of a complete AC800M control system architecture. At the controller level, the PM866 processor module serves as the primary execution engine, running IEC 61131-3 control programs and managing all I/O communication cycles. The CI857K01 connects to this processor via the internal Modulebus, sharing the same backplane as AI810 analog input modules, DI810 digital input modules, and AO810 analog output modules that handle field signal conditioning. This tight integration ensures that motor status data retrieved from INSUM MCCs via the CI857K01 is available to the control program within the same scan cycle as conventional I/O signals — eliminating the latency penalties typically associated with gateway-based communication architectures.

At the network layer, the CI857K01 interfaces with ABB’s Industrial Ethernet infrastructure, which may include managed switches configured for VLAN segmentation to isolate control traffic from supervisory and historian data flows. The module supports connection to ABB System 800xA — the plant-wide operations and information management platform — enabling operators to monitor motor load, thermal status, and protection relay states from a unified HMI environment. The CP430 or CP600 series operator panels can display real-time INSUM device data sourced through the CI857K01, providing maintenance engineers with actionable diagnostics without requiring physical access to the MCC room.

For power distribution and protection coordination, the CI857K01 communicates with INSUM-compatible motor protection relays and soft starters installed within the MCC, including ABB’s UMC100 Universal Motor Controller and PST series soft starters. This communication path allows the AC800M to issue start, stop, and speed reference commands while simultaneously receiving thermal overload status, fault codes, and energy consumption data — supporting both operational control and predictive maintenance workflows. The TB840 Modulebus Optical Link module may be used in conjunction with the CI857K01 to extend the Modulebus over fiber optic cable in installations where the controller cabinet is physically separated from the I/O marshalling area, a common requirement in large-scale petrochemical or power plant control rooms.

Application in Layered Automation Systems

In power generation facilities, the CI857K01 is deployed to supervise auxiliary motor control systems — including cooling water pumps, fuel handling conveyors, and forced draft fan drives — from a centralized AC800M DCS. The INSUM protocol enables the control system to enforce coordinated start sequences and interlock logic across multiple motor groups, reducing the risk of process upsets during plant startup or load transfer events.

In petrochemical and refinery applications, the CI857K01 supports integration of hazardous-area motor starters with the plant DCS, enabling remote operation and continuous monitoring of pumps, compressors, and agitators in classified zones. The Ethernet-based communication path eliminates the need for intrinsically safe fieldbus wiring in many configurations, simplifying zone boundary management and reducing installation cost.

In water and wastewater treatment plants, the CI857K01 enables centralized supervision of pump stations distributed across large geographic areas. When combined with redundant AC800M controllers and ring Ethernet topologies, the module supports high-availability architectures that meet the uptime requirements of continuous water supply infrastructure.

In mining and minerals processing, the CI857K01 is used to integrate conveyor drive systems, crusher motor controls, and slurry pump stations into a unified DCS environment. The module’s ability to retrieve detailed motor diagnostics from INSUM devices supports condition-based maintenance programs that reduce unplanned downtime in high-wear applications.

In packaging and discrete manufacturing lines, the CI857K01 provides the communication backbone for coordinated motor sequencing across multi-zone conveyor systems, enabling the AC800M to enforce precise timing relationships between drive groups without relying on hardwired interlock circuits.

Architecture Engineering FAQ

Q1: Is the CI857K01 compatible with both new AC800M installations and retrofit projects replacing older ABB Advant or MOD 300 systems?
Yes. The CI857K01 is fully compatible with current AC800M hardware generations including PM866 and PM891 processors. For retrofit projects migrating from legacy ABB Advant OCS or MOD 300 platforms, the module can be integrated into the replacement AC800M rack alongside existing S800 I/O modules, provided the INSUM MCC infrastructure is retained or upgraded in parallel. Engineering teams should verify firmware compatibility between the CI857K01 and the target PM processor version using ABB’s System Version Information (SVI) documentation prior to commissioning.

Q2: Can the CI857K01 operate in a redundant network configuration, and what is required to implement communication redundancy?
The CI857K01 supports connection to redundant Ethernet ring topologies using Media Redundancy Protocol (MRP) or Rapid Spanning Tree Protocol (RSTP), depending on the managed switch configuration. For controller-level redundancy, a second AC800M controller with its own CI857K01 can be configured in hot-standby mode using ABB’s redundancy software options, ensuring that INSUM communication is maintained during a controller switchover event. Physical network redundancy requires appropriate switch infrastructure and should be validated during Factory Acceptance Testing (FAT).

Q3: What does the 12-Month Warranty cover, and what support is available for installation and commissioning issues?
The 12-Month Warranty covers manufacturing defects and functional failures occurring under normal operating conditions as specified in ABB’s product documentation. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental range. For installation and commissioning support, ZYPLC provides pre-sales technical consultation to verify system compatibility, and post-sales support to assist with module configuration within the AC800M engineering environment. Customers experiencing commissioning issues are encouraged to contact our technical team directly for guided troubleshooting.
