ABB DC522 1SAP240600R0001 System-Ready Digital I/O for AC500 Architecture

ABB DC522 1SAP240600R0001 System-Ready Digital I/O for AC500 Architecture

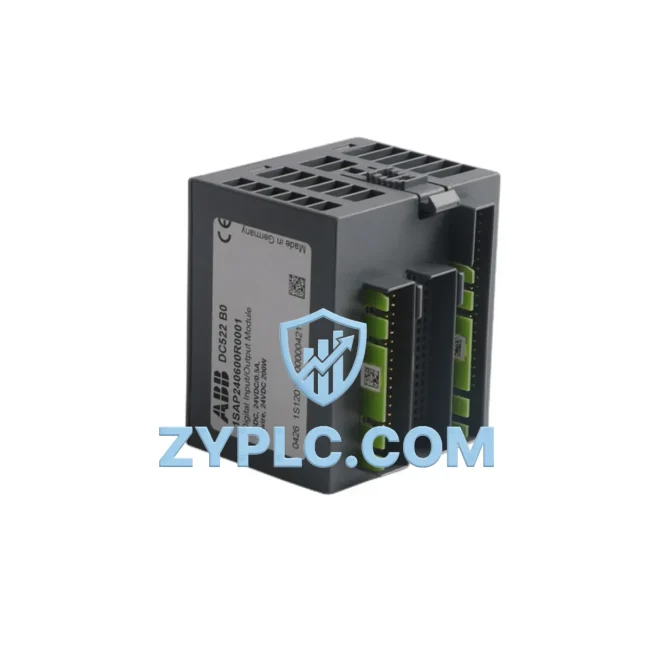

The ABB DC522 (order reference 1SAP240600R0001) is a 16-channel digital input / 16-channel digital output module engineered specifically for deployment within the ABB AC500 modular PLC platform. Rather than functioning as a standalone component, the DC522 is designed from the ground up to operate as an integrated node within a layered industrial control architecture — contributing to signal acquisition, command execution, system redundancy, and long-term maintainability across the full automation stack. Whether installed in a compact machine controller or a distributed process control cabinet, the DC522 delivers the electrical reliability and protocol compatibility that modern industrial environments demand, backed by a 12-Month Warranty and full Contextual Integration support.

Architecture Specification Table

Coordinated Control System Design

The DC522 does not operate in isolation — its value is realized through its position within a coordinated AC500 control architecture. At the control layer, an AC500 PM573-ETH CPU or PM591-ETH CPU serves as the central processing unit, executing the PLC program and managing all I/O communication via the S500 backplane bus. The DC522 slots directly into this architecture through a TA521 or TB521 terminal base, which provides both mechanical mounting and electrical field wiring termination without the need for additional adapters.

For applications requiring expanded I/O capacity, the DC522 can be combined with analog modules such as the AI523 (8-channel analog input) or AO523 (8-channel analog output) on the same I/O station, enabling mixed signal architectures within a single rack. Where communication redundancy or remote I/O distribution is required, the CI592-CS31 communication interface module extends the S500 I/O bus over CS31 fieldbus, allowing DC522 stations to be distributed across the plant floor while remaining under centralized CPU control.

At the power layer, the ABB CP604 or CP605 power supply provides stable 24V DC rail power to the I/O station, ensuring that all output channels on the DC522 maintain consistent switching performance even under high-load conditions. For human-machine interface integration, the AC500 platform supports direct connectivity to ABB CP600 series HMI panels, which can display real-time I/O status from the DC522 channels — enabling operators to monitor field device states, acknowledge alarms, and initiate manual overrides without leaving the control room.

In safety-critical or high-availability installations, the DC522 can be deployed alongside AC500-S safety CPUs and SD500 series safety I/O modules in a mixed standard/safety architecture, where the DC522 handles non-safety-rated digital signals while the safety modules manage SIL-rated interlocks. This separation of safety and standard I/O on a common platform reduces cabinet footprint and simplifies engineering documentation. Additionally, CM589-PNIO PROFINET interface modules can be used to bridge the AC500 I/O station to higher-level SCADA or DCS systems, enabling seamless data exchange across the enterprise automation hierarchy.

Application in Layered Automation Systems

The DC522 is deployed across a wide range of industrial sectors where reliable digital signal management is essential to process continuity. In manufacturing and assembly lines, the module controls conveyor motor contactors, pneumatic valve solenoids, and end-of-line inspection sensors — providing the fast response times and high channel density needed for high-throughput production. In power generation and electrical substation applications, the DC522 interfaces with circuit breaker auxiliary contacts, protection relay outputs, and transformer tap-changer controls, where signal integrity and electrical isolation are non-negotiable.

In petrochemical and refinery environments, the module’s ATEX Zone 2 certification allows installation in areas with potentially explosive atmospheres, supporting pump control, valve actuation, and emergency shutdown signal routing within the same AC500 architecture used for process regulation. Water and wastewater treatment facilities use the DC522 to manage pump station start/stop sequences, level switch inputs, and chemical dosing valve controls — often in remote unmanned stations where the module’s robust operating temperature range and low maintenance requirements are critical advantages.

In mining and metallurgical processing, the DC522 handles conveyor belt interlocks, crusher motor controls, and ore handling gate actuators, where the module must withstand vibration, dust ingress, and wide ambient temperature swings. Packaging and palletizing lines leverage the module’s 16-output capacity to drive multiple servo drive enable signals, reject gate solenoids, and label applicator triggers simultaneously, with the AC500 CPU coordinating motion sequences across the entire line. Across all these applications, the 12-Month Warranty and Contextual Integration capability ensure that replacement modules can be installed and commissioned rapidly, minimizing unplanned downtime.

Architecture Engineering FAQ

Q1: Is the DC522 1SAP240600R0001 directly compatible with all AC500 CPU generations, and does it require any firmware updates before installation?
The DC522 is compatible with all current AC500 V2 and V3 CPU modules, including the PM573, PM591, PM592, and PM595 series, when mounted on a TA521 or TB521 terminal base. No separate firmware update is required for the DC522 itself — the CPU automatically recognizes the module during the hardware configuration scan in Automation Builder. For legacy AC500 V1 CPUs, compatibility should be verified against the ABB hardware compatibility matrix, and a CPU firmware update may be advisable to ensure full feature support.

Q2: Can the DC522 be used in a redundant I/O architecture, and what configuration is recommended for high-availability process control?
The DC522 supports redundant I/O configurations when paired with AC500 redundant CPU pairs (PM595 with redundancy license) and appropriate redundancy communication modules. In a typical high-availability setup, two DC522 modules are wired in parallel to the same field devices, with the active CPU controlling the primary module and the standby CPU monitoring the secondary. Switchover is managed at the CPU level, and the DC522’s fast output response time ensures that field device state is maintained within the application’s permissible interruption window. This architecture is commonly applied in power distribution, water treatment, and continuous process industries where unplanned shutdowns carry significant operational cost.

Q3: What does the 12-Month Warranty cover, and how does Contextual Integration simplify long-term maintenance and spare parts management?
The 12-Month Warranty covers all manufacturing defects and functional failures arising under normal operating conditions, including output transistor failure, input circuit degradation, and bus communication faults. Physical damage caused by incorrect wiring, overvoltage, or environmental exposure beyond the module’s rated specifications is excluded. Contextual Integration means that a replacement DC522 can be installed into an existing AC500 I/O station without modifying the CPU program or hardware configuration — the module is recognized automatically by the controller, and all channel assignments, I/O mapping, and diagnostic parameters are restored from the existing project. This dramatically reduces the engineering time required for emergency replacements and allows maintenance technicians without PLC programming expertise to perform module swaps safely and confidently.
