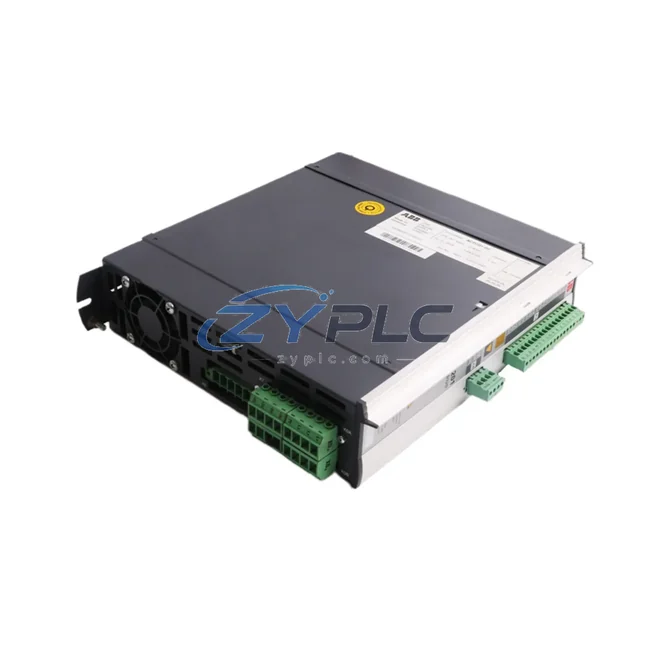

ABB DCF804-0050 Field Exciter DCS500: Precision Field Control for Optimized DC Drive Efficiency

The ABB DCF804-0050 (part number 3ADT209026R0002) is a high-efficiency field exciter module engineered for the ABB DCS500 series DC drive platform. In modern industrial environments where equipment uptime and replacement lead time directly affect production continuity, the DCF804-0050 plays a critical role in regulating field current with precision, ensuring that DC motors operate at their optimal flux levels across all load conditions. By maintaining accurate field excitation, this module eliminates the unplanned downtime associated with over-excitation and reduces thermal stress on motor windings — two of the most common sources of hidden energy loss in legacy DC drive systems.

Sourced directly from verified supply channels, every ABB DCF804-0050 unit available through ZYPLC undergoes pre-shipment functional testing and is backed by a warranty terms confirmed during quotation, giving procurement and maintenance teams the confidence to plan replacements without unplanned downtime risk.

Product Specification Table

System Compatibility and Application

The DCF804-0050 does not operate in isolation — it is one node in a tightly integrated DC drive automation architecture. In a typical DCS500-based system, the main converter unit such as the ABB DCS550-S01-0900-05-00-00 handles armature current regulation, while the DCF804-0050 manages field excitation independently, allowing the drive to execute field-weakening strategies that extend the motor’s speed range without increasing power draw. This separation of armature and field control is fundamental to achieving high dynamic performance with minimal unplanned downtime.

On the control side, the DCS500 platform communicates with higher-level automation systems through fieldbus adapters such as the RDCO-02 DDCS fiber optic communication module or RPBA-01 PROFIBUS adapter, enabling the field exciter setpoint to be adjusted in real time by a PLC or DCS. In plants running ABB AC500 series PLCs or Siemens S7-300/S7-400 controllers, the field current reference can be dynamically modified based on production speed profiles, reducing excitation during low-load periods and recovering that energy as measurable kWh savings over a shift.

For condition monitoring, integrating the DCS500 system with a power quality analyzer such as the ABB M2M DIN-rail energy meter or a Schneider Electric PowerLogic ION7650 allows plant engineers to log field exciter power consumption separately from the armature circuit, providing granular data for ISO 50001 energy audits. When paired with an ABB Panel Builder 800 HMI or Siemens SIMATIC HMI TP1200 Comfort, operators gain real-time visibility into field current trends, enabling proactive adjustments before efficiency degradation occurs.

On the I/O layer, the DCS500’s SDCS-IOB-3 I/O extension board provides additional analog inputs for temperature and tachometer feedback, which the field exciter module uses to compensate field current under varying thermal conditions — a key factor in maintaining consistent motor efficiency across long production runs. For applications requiring encoder-based speed feedback, the SDCS-CON-4 control board within the DCS500 chassis works in conjunction with the DCF804-0050 to deliver closed-loop field-oriented control with sub-millisecond response times.

Maintenance and Replacement Notes

In steel rolling mills and paper machine drives — two of the most energy-intensive industrial applications — the ABB DCF804-0050 delivers measurable efficiency gains by enabling precise field current profiling across the full production cycle. During acceleration phases, the module supplies maximum rated field current to maximize motor torque density. As the line reaches steady-state speed, the DCS500 drive’s field-weakening algorithm — executed in coordination with the DCF804-0050 — reduces field current proportionally, lowering copper losses in the motor stator and reducing the reactive power burden on the plant’s power distribution network.

In winder and unwinder applications, where tension control demands rapid torque reversals, the field exciter’s fast current response prevents flux collapse during dynamic load changes, eliminating the speed dips and material defects that result from inadequate field control. This directly improves production line throughput and reduces scrap rates — both of which translate to lower energy cost per unit of output.

For facilities managing multiple DC drive systems, replacing aging or failed field exciter modules with the DCF804-0050 restores the drive’s original efficiency baseline. A degraded field exciter that delivers inconsistent current output forces the motor to draw excess armature current to compensate, increasing total drive losses by 5–15% depending on load profile. Restoring proper field regulation with a tested DCF804-0050 unit eliminates this hidden energy penalty and reduces motor operating temperature, extending bearing and winding life and reducing the frequency of unplanned maintenance interventions.

ZYPLC maintains ready stock of the DCF804-0050 to support urgent replacement scenarios. All units are functionally tested prior to shipment, and the warranty terms confirmed during quotation covers operational failures under normal industrial use conditions, giving maintenance planners a reliable supply source for both scheduled overhauls and emergency breakdowns.

Product Sourcing FAQ

Q1: How does the DCF804-0050 contribute to measurable operational stability in a DCS500 drive system?
The DCF804-0050 enables precise field current regulation, which allows the DCS500 to implement field-weakening control during partial-load and high-speed operation. This reduces stator copper losses and reactive power consumption. In continuous-process applications such as extruders or conveyors running below rated speed for extended periods, this can reduce motor-side energy consumption by 8–20% compared to fixed-field operation.

Q2: Is the DCF804-0050 compatible with all DCS500 drive variants?
The DCF804-0050 is designed for the ABB DCS500 series platform and is compatible with standard DCS500 converter units across the rated current range. Compatibility should be verified against the specific DCS500 firmware version and hardware revision in your installation. ZYPLC’s technical team can assist with cross-referencing your existing drive configuration before purchase.

Q3: What is the recommended replacement procedure for a failed field exciter in a running production line?
For planned replacements, the DCS500 drive should be de-energized and locked out per site LOTO procedures before removing the DCF804-0050. Field current parameters stored in the drive’s SDCS-CON-4 control board are retained in non-volatile memory and do not need to be re-entered after module swap. For emergency replacements, ZYPLC offers expedited shipping on availability confirmed by RFQ units to minimize production downtime.

Q4: What does the warranty terms confirmed during quotation cover for the DCF804-0050?
The warranty terms confirmed during quotation covers functional failures of the DCF804-0050 module under normal industrial operating conditions, including field current regulation faults, internal component failures, and communication interface defects. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the module’s rated parameters. All warranty claims are processed through ZYPLC with direct technical support.
