ABB DCS800-S01-0900-05 System-Ready DC Drive for DCS800 Architecture

ABB DCS800-S01-0900-05 System-Ready DC Drive for DCS800 Architecture: Control System Architecture and Upstream–Downstream Coordination

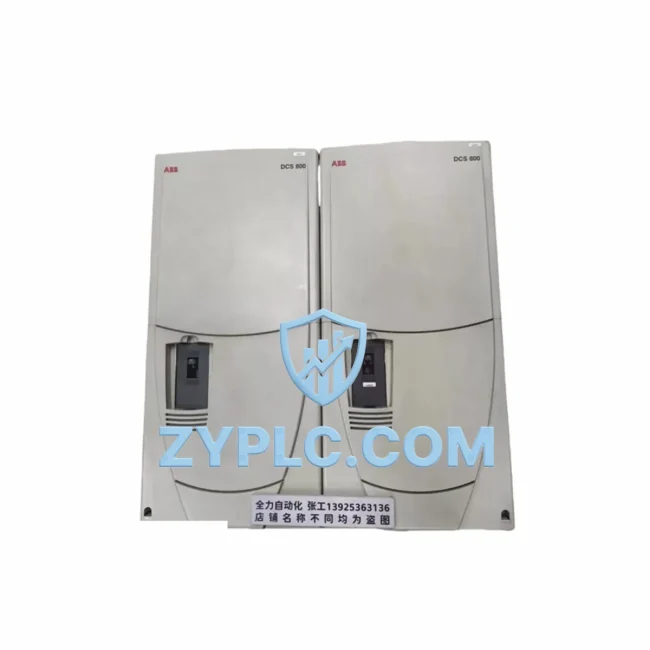

The ABB DCS800-S01-0900-05 is a high-performance DC drive engineered for seamless integration within the ABB DCS800 series control architecture. Rated at 900 A in a single-quadrant configuration, this drive is designed not as a standalone unit but as a precision component within a layered industrial automation system. Its role spans the power conversion layer, the control execution layer, and the communication backbone of modern process control environments. Whether deployed in metal processing lines, paper mills, marine propulsion systems, or heavy-duty winding applications, the DCS800-S01-0900-05 delivers consistent torque control, reliable field excitation management, and deterministic response to supervisory commands — all critical attributes for system-level performance.

Architecture Specification Table

Coordinated Control System Design

The DCS800-S01-0900-05 achieves its full potential when integrated within a coordinated ABB DCS800 system architecture. At the control layer, the drive interfaces directly with the SDCS-CON-4 control board, which manages speed and torque regulation loops, adaptive flux control, and diagnostic feedback. The SDCS-CON-4 provides the computational core that translates high-level process commands into precise firing angle control for the thyristor bridge within the DCS800-S01-0900-05.

For field excitation management, the drive coordinates with the SDCS-FEX-4 field excitation unit, ensuring stable motor flux across varying load conditions. This pairing is essential in applications where motor speed range exceeds 1:10, such as winding machines or rolling mills, where field weakening must be precisely controlled to maintain torque linearity.

At the communication layer, the RDCU-12C remote drive control unit enables the DCS800-S01-0900-05 to participate in distributed control architectures. When combined with fieldbus adapter modules such as the RFBA-01 (PROFIBUS-DP) or RMBA-01 (Modbus RTU), the drive becomes a fully addressable node within a plant-wide SCADA or DCS network, supporting real-time parameter monitoring, fault diagnostics, and remote setpoint adjustment.

For multi-drive coordination — common in tandem winding lines or multi-motor paper machine sections — the DCS800-S01-0900-05 operates alongside companion units such as the DCS800-S01-0450-05 (450 A single-quadrant) and the DCS800-S02-0900-05 (900 A four-quadrant regenerative variant). This modular current-scaling approach allows engineers to match drive capacity precisely to motor nameplate ratings without oversizing the power stage.

At the human-machine interface layer, the CDP312R control panel provides local parameter access, fault history review, and drive commissioning support. For panel-level integration, the drive’s digital and analog I/O terminals connect to PLC I/O modules or distributed I/O racks, enabling interlock logic, speed reference injection, and run/stop command sequencing from the supervisory control layer. In larger installations, the ABB AC500 PLC series or third-party Siemens S7-300/400 controllers serve as the master controller, issuing torque and speed references via the fieldbus interface.

Power supply stability is maintained through coordinated design with upstream AC line reactors and DC link chokes, which suppress harmonic distortion and protect the thyristor bridge from voltage transients. In redundant architectures, a bypass contactor assembly and a standby DCS800 unit can be configured for hot-standby operation, minimizing unplanned downtime in critical production environments.

Application in Layered Automation Systems

The DCS800-S01-0900-05 is deployed across a wide range of heavy industrial sectors where DC motor technology remains the preferred solution for high-torque, wide-speed-range applications.

In steel and metals processing, the drive controls main mill motors on hot rolling lines, where precise speed synchronization between roughing and finishing stands is critical to product dimensional accuracy. The drive’s fast current loop response — typically under 5 ms — ensures that speed deviations caused by material thickness variations are corrected before they propagate downstream.

In paper and pulp manufacturing, the DCS800-S01-0900-05 manages section drives on multi-section paper machines, where each section must maintain precise draw ratios to prevent web breaks. The drive’s tension control capability, implemented through the SDCS-CON-4 control board, allows direct integration with load cell feedback signals.

In petrochemical and refinery applications, the drive powers large extruder motors and compressor drives where continuous duty ratings and thermal management are paramount. The forced-air cooling system and integrated thermal protection ensure reliable operation in ambient temperatures up to 40°C without derating.

In mining and mineral processing, the drive is used on conveyor belt drives, crusher motors, and hoist systems, where high starting torque and robust fault protection are essential for operational safety. The drive’s configurable overcurrent and overvoltage protection thresholds allow site engineers to tailor protection settings to the specific mechanical load profile.

In water treatment and pumping stations, the DCS800-S01-0900-05 controls large DC pump motors in raw water intake and effluent treatment systems, where variable flow demand requires smooth speed adjustment across a wide operating range.

Architecture Engineering FAQ

Q1: Is the DCS800-S01-0900-05 compatible with existing DCS800 series control boards and fieldbus adapters already installed in my system?
Yes. The DCS800-S01-0900-05 is fully compatible with the SDCS-CON-4 control board and all standard DCS800 series fieldbus adapter modules, including RFBA-01 (PROFIBUS-DP) and RMBA-01 (Modbus RTU). Replacement or expansion within an existing DCS800 architecture requires no hardware modifications to the control layer, provided firmware versions are aligned. Our technical team can verify compatibility based on your existing system configuration before shipment.

Q2: Can this drive be installed in a redundant architecture, and what components are required for hot-standby operation?
Yes. A redundant configuration typically requires a bypass contactor assembly, a standby DCS800 unit of equivalent rating, and a transfer logic sequence implemented in the supervisory PLC or DCS. The DCS800-S01-0900-05 supports bumpless transfer when the standby unit is pre-magnetized and speed-matched prior to switchover. Detailed redundancy wiring diagrams and commissioning procedures are available upon request.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims?
The 12-Month Warranty covers manufacturing defects, component failures under normal operating conditions, and firmware-related malfunctions present at the time of delivery. It does not cover damage resulting from incorrect installation, operation outside specified electrical parameters, or physical damage during transit. To initiate a warranty claim, contact our technical support team with the unit serial number, fault description, and installation date. Replacement units or repair services are dispatched within 5 business days of claim approval.
