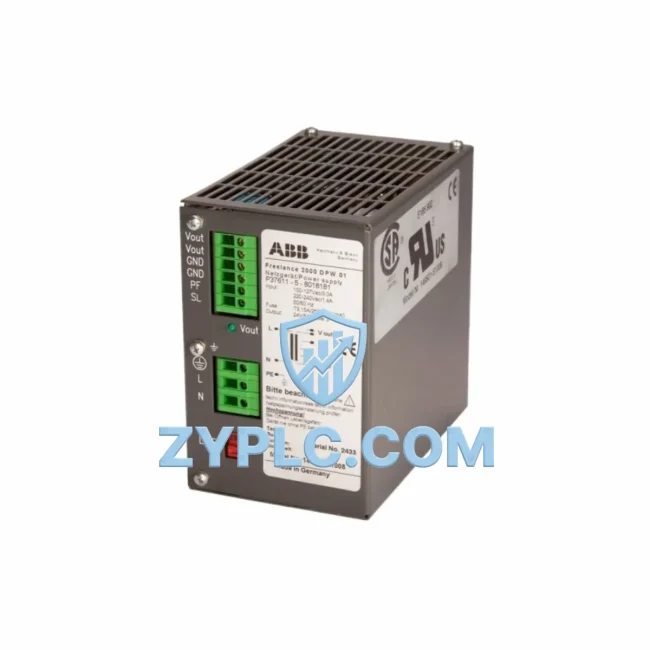

ABB DPW01 Power Supply Module Masterpiece

ABB DPW01 Power Supply Module: Replacement and Sourcing Information for Masterpiece Automation

The ABB DPW01 is a high-efficiency power supply module engineered for the ABB Masterpiece Series distributed control system (DCS). Designed to deliver stable, regulated DC power to control racks and I/O subsystems, the DPW01 plays a foundational role in reducing unnecessary energy draw across the entire automation architecture. In modern industrial facilities where energy costs are a primary operational concern, the quality and efficiency of the power supply layer directly impacts both equipment uptime and total operating load. The DPW01 addresses this challenge by providing clean, conditioned power that minimizes heat generation, reduces ripple-induced losses, and supports continuous operation without the thermal cycling that degrades component life.

For factories running ABB Masterpiece 200 or Masterpiece 90 controllers, the DPW01 is the recommended power backbone. Its regulated output ensures that connected modules — including analog input cards, digital output modules, and communication interface boards — receive consistent voltage levels, preventing the micro-interruptions that cause false alarms, spurious trips, and unplanned downtime. When downtime is eliminated, production line throughput improves, and the energy consumed per unit of output decreases — a direct efficiency gain that compounds across shifts and production campaigns.

Product Specification Table

System Compatibility and Application

The DPW01 does not operate in isolation — it is the energy foundation upon which an entire Masterpiece control node depends. In a typical Masterpiece 200 installation, the DPW01 powers a rack that may house the DSPC110 processor module, multiple DSAI130 analog input cards collecting 4–20 mA signals from field transmitters, and DSDO110 digital output modules driving relay outputs to actuators and motor starters. Each of these modules draws regulated current from the DPW01, and any instability in that supply propagates as measurement noise, control deviation, or output chatter — all of which translate into wasted energy at the process level.

In drive-intensive applications, the DPW01 works alongside ABB’s ACS880 industrial drive series, which handles variable-speed motor control for pumps, fans, and compressors. The ACS880 uses direct torque control (DTC) to match motor output precisely to process demand, eliminating the fixed-speed unplanned downtime common in older installations. The DPW01 ensures the control signals from the Masterpiece processor to the drive’s fieldbus interface — typically via PROFIBUS-DP or PROFINET communication modules — are transmitted without voltage sag or noise interference. This tight integration between the power supply layer and the drive communication layer is what enables real-time speed adjustments that reduce operating load by 20–50% on variable-load applications.

For condition monitoring, the architecture typically includes ABB B23 or B24 series energy meters connected to the Masterpiece I/O subsystem via Modbus RTU. These meters provide per-circuit kWh data that the DCS can log, trend, and alarm on — giving energy managers the visibility needed to identify inefficient equipment before it becomes a maintenance problem. The DPW01’s stable power output is essential here: a noisy supply can corrupt Modbus communication frames, leading to missed readings and gaps in the energy data that undermine predictive maintenance programs.

Communication integrity is further supported by DSSB110 or DSCS140 serial communication boards installed in the same Masterpiece rack. These boards handle the RS-232/RS-485 links to remote I/O stations, HMI panels, and historian servers. When the DPW01 maintains clean bus voltage, these communication boards sustain higher data throughput with fewer retransmissions — a subtle but measurable contribution to system efficiency. On the HMI side, operators interact with the process through ABB CP600 series operator panels or third-party SCADA systems, where real-time energy KPIs sourced from the Masterpiece historian help production teams make informed decisions about load scheduling and equipment sequencing.

Maintenance and Replacement Notes

Consider a pulp and paper mill running three Masterpiece 200 control nodes across its fiber line, recovery boiler, and utilities section. Each node relies on a DPW01 to power its control rack. Before a DPW01 replacement program, the facility experienced intermittent analog input drift on its steam flow measurements — a problem traced to aging power supply modules with degraded output capacitors causing voltage ripple. The ripple introduced a ±0.3% error on 4–20 mA signals, which the boiler combustion controller interpreted as real process variation and responded to by cycling the fuel control valve unnecessarily. This valve cycling increased fuel consumption by an estimated 1.8% and accelerated valve seat wear, adding to maintenance costs.

After replacing the degraded units with new DPW01 modules, the analog signal quality returned to specification, the combustion controller stabilized, and fuel consumption dropped back to baseline. The maintenance interval on the fuel control valve extended from 6 months to over 14 months. This example illustrates how a power supply module — often overlooked in energy audits — can have a disproportionate impact on process efficiency and maintenance expenditure.

In a chemical plant context, the DPW01 supports the control of variable-speed agitator drives and cooling water pumps. By ensuring the Masterpiece processor receives clean power, the PID control loops governing these drives remain stable, avoiding the hunting behavior that causes motors to draw abnormal load during correction cycles. Stable control loops, powered by a reliable DPW01, directly reduce the reactive power demand on the facility’s electrical distribution system — lowering power factor penalties on the utility bill and reducing heat dissipation in motor windings.

From a predictive maintenance perspective, the DPW01’s consistent output voltage is a prerequisite for accurate vibration and temperature data collection from field-mounted smart transmitters. If the transmitter supply voltage fluctuates, the analog-to-digital conversion inside the transmitter introduces additional uncertainty into the measurement, masking early-stage bearing wear signatures that a predictive maintenance program depends on. A healthy DPW01 keeps the measurement chain intact from sensor to historian, enabling earlier fault detection and longer planned maintenance intervals.

All DPW01 units supplied by ZYPLC are sourced from verified channels, subjected to full functional testing under load prior to shipment, and covered by a 12-month warranty. Stock is maintained for immediate dispatch, minimizing the lead time impact of unplanned replacements in critical production environments.

Product Sourcing FAQ

Q1: How does the ABB DPW01 contribute to operational stability in a Masterpiece DCS installation?
The DPW01 provides stable, low-ripple DC power to the control rack, which keeps analog measurement accuracy high and control loop performance tight. Stable control loops prevent unnecessary actuator movement and motor cycling, directly reducing unplanned downtime at the process level. A degraded power supply that introduces voltage noise can cause control instability that increases operating load by 1–3% across affected loops.

Q2: Is the DPW01 compatible with both Masterpiece 200 and Masterpiece 90 systems?
Yes. The DPW01 is designed for use within the ABB Masterpiece rack architecture and is compatible with both the Masterpiece 200 and Masterpiece 90 platforms. It can also be evaluated for use in Symphony Plus rack configurations where voltage and connector specifications align. Always verify rack slot compatibility and current draw requirements against your system documentation before installation.

Q3: What is the recommended replacement procedure and how does ZYPLC support the process?
Replacement of the DPW01 is typically performed during a planned maintenance window with the control rack powered down. ZYPLC provides units that have been fully tested under load, so the replacement module can be installed with confidence. Our team can advise on pre-replacement checks, including output voltage measurement on the existing unit and inspection of rack backplane connectors. Contact us at plc.sales@zyplc.com or +86 19859288691 for application support.

Q4: What warranty and testing standards apply to ZYPLC-supplied DPW01 modules?
All DPW01 modules supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes a full functional test — including output voltage verification, load regulation testing, and ripple measurement — before shipment. Test records are available upon request. Units are shipped with appropriate ESD protection and packaging to prevent transit damage.
