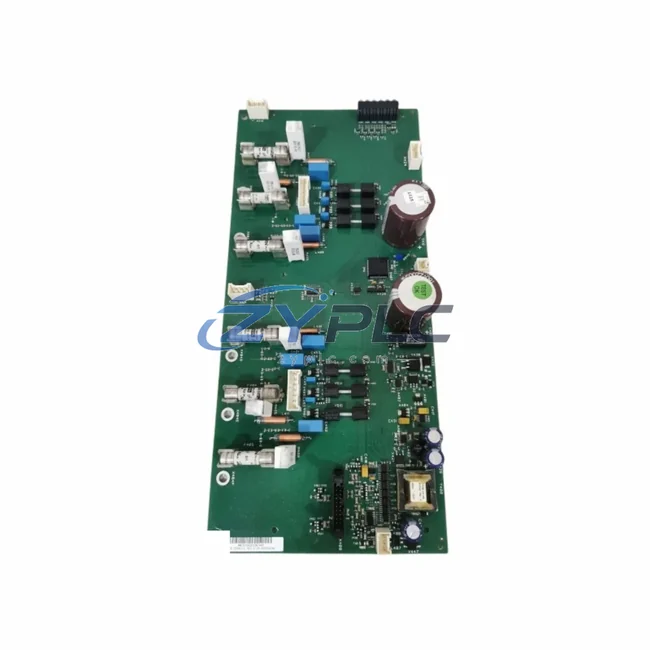

ABB DSAB-01C Trigger Board for DSAB Automation

ABB DSAB-01C Trigger Board for DSAB Automation

The ABB DSAB-01C (SKU: DSAB-01C 64630199) is a precision thyristor trigger board engineered for the ABB DSAB drive series, delivering accurate gate pulse control that directly reduces switching losses and improves overall drive efficiency. In modern industrial facilities where energy costs represent a significant share of operating expenditure, the quality of thyristor firing control determines how much power is wasted as heat versus converted into productive mechanical work. The DSAB-01C addresses this at the hardware level, ensuring that each thyristor in the converter bridge receives a correctly timed, correctly shaped gate pulse — eliminating misfires, reducing harmonic distortion, and keeping the drive operating within its optimal efficiency band.

Sourced directly from ABB-authorized supply chains, every DSAB-01C unit available through ZYPLC undergoes full functional testing prior to shipment and is covered by a warranty terms confirmed during quotation. Stock is maintained on-hand for shipment arranged after confirmation, minimizing procurement lead times for maintenance teams managing unplanned downtime events.

Product Specification Table

System Compatibility and Application

The DSAB-01C does not operate in isolation — it is one critical node within a layered automation architecture designed to maximize energy efficiency across the entire production system. In a typical ABB DSAB-based DC drive installation, the trigger board works in close coordination with the ABB SDCS-CON-4 control board, which generates the firing angle reference signals that the DSAB-01C translates into precise gate pulses for the thyristor bridge. Upstream, an ABB SDCS-POW-4 power supply board provides the regulated auxiliary voltages that keep both the control and trigger layers stable under varying load conditions.

For current and voltage feedback — essential inputs for closed-loop efficiency control — the system relies on components such as the ABB SDCS-FEX-2 field excitation board, which regulates motor field current to maintain optimal flux levels and prevent unplanned downtime from over-excitation. On the measurement side, ABB RETA-01 or RETA-02 Ethernet adapter modules enable real-time drive parameter monitoring over PROFINET or Modbus TCP, feeding energy consumption data to SCADA or MES platforms for analysis and optimization.

At the motor control level, the DSAB-01C-equipped drive interfaces with ABB ACS880 series variable speed drives on auxiliary axes, allowing coordinated speed and torque management across multi-motor production lines. I/O expansion is handled through ABB RDIO-01 digital I/O extension modules, which relay process interlocks and maintenance planning signals between the drive and the plant-level PLC — typically an ABB AC500 series controller running IEC 61131-3 logic for production scheduling and load shedding routines.

For HMI integration, operators interact with drive status and energy KPIs through ABB CP600 series operator panels, displaying real-time power factor, motor current, and efficiency trend data. Power quality at the incoming supply is monitored using ABB M2M or B23 series energy meters, which capture harmonic distortion levels and flag conditions that could degrade thyristor performance — data that feeds directly back into maintenance scheduling for the DSAB-01C and associated converter components.

Maintenance and Replacement Notes

In heavy industrial environments — steel mills, paper machines, rubber extruders, and large crane systems — DC drives equipped with the ABB DSAB-01C trigger board deliver measurable improvements in energy utilization. The fundamental mechanism is straightforward: a thyristor that fires at the wrong moment, or with an incorrectly shaped gate pulse, conducts inefficiently. This inefficiency manifests as excess heat in the converter cabinet, increased harmonic content on the supply network, and reduced motor torque linearity — all of which translate directly into higher energy bills and accelerated component wear.

By ensuring that each thyristor in the six-pulse or twelve-pulse bridge receives a gate pulse with the correct phase angle, amplitude, and duration, the DSAB-01C keeps the converter operating at its designed efficiency point across the full speed range. At partial loads — which represent the majority of operating hours in most production environments — this precision firing control prevents the efficiency cliff that poorly maintained trigger boards cause, where drives consume disproportionately more power at 40–60% load than their design curves predict.

From a maintenance perspective, a failing or degraded trigger board is one of the most common root causes of unexplained energy consumption increases in DC drive systems. Predictive maintenance programs that include periodic verification of gate pulse waveforms — using oscilloscope checks at the thyristor gate terminals — can identify DSAB-01C degradation before it causes a production stoppage. ZYPLC maintains ready stock of the DSAB-01C 64630199 specifically to support rapid replacement scenarios, with units shipped after full functional testing to ensure the replacement board performs identically to the original specification.

Line rhythm optimization is another area where the DSAB-01C contributes indirectly. In synchronized multi-drive lines — where a master drive sets speed reference and follower drives track it — trigger board inconsistencies on any axis introduce speed ripple that disrupts production cadence, forces operators to run lines below rated speed as a safety margin, and increases material waste. Replacing degraded trigger boards with tested DSAB-01C units restores drive synchronization accuracy, allowing lines to run at their designed throughput with lower specific energy consumption per unit of output.

Product Sourcing FAQ

Q1: How does the DSAB-01C reduce energy consumption in DC drive systems?
The DSAB-01C controls the precise firing angle of each thyristor in the converter bridge. Accurate firing minimizes conduction losses, reduces harmonic distortion on the supply network, and keeps the drive operating at its designed efficiency curve across all load points — directly lowering kWh consumption per unit of mechanical output.

Q2: Which ABB drive systems is the DSAB-01C compatible with?
The DSAB-01C is designed for the ABB DSAB series DC drive platform. It is compatible with drive configurations using six-pulse and twelve-pulse thyristor converter bridges within the DSAB architecture. For cross-compatibility with other ABB DC drive families such as DCS550 or DCS800, consult the drive’s hardware manual or contact ZYPLC for technical verification before ordering.

Q3: What is the replacement and testing process for the DSAB-01C?
Every DSAB-01C unit supplied by ZYPLC is functionally tested prior to shipment — gate pulse output, logic supply response, and signal integrity are verified against ABB specifications. Replacement is a board-swap procedure: power down the drive, discharge the DC bus, remove the existing trigger board, install the DSAB-01C, and recommission the drive following ABB’s standard startup checklist. All units are covered by a warranty terms confirmed during quotation from the date of shipment.

Q4: How does a degraded trigger board affect production line efficiency, and when should it be replaced?
A degraded DSAB-01C typically presents as increased drive cabinet temperature, unexplained increases in motor current at constant load, speed ripple on the driven axis, or intermittent drive fault codes related to thyristor firing. Any of these symptoms warrants immediate trigger board inspection. Proactive replacement during scheduled maintenance — rather than waiting for a fault-induced stoppage — avoids unplanned downtime costs that typically far exceed the cost of the board itself. ZYPLC’s availability confirmed by RFQ availability ensures same-day or next-day dispatch to support urgent maintenance requirements.
