ABB DSAO110 57120001-AT Analog Output for Advant

ABB DSAO110 57120001-AT Analog Output for Advant: Compatibility and Replacement Notes

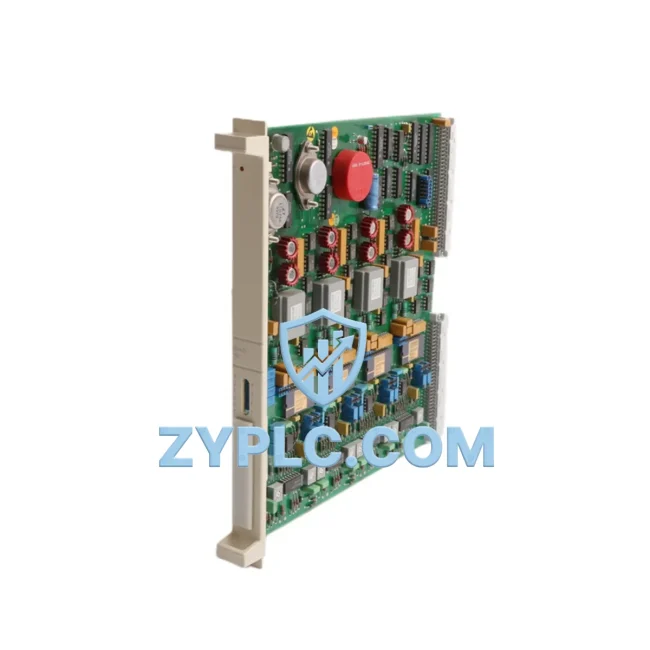

The ABB DSAO110 57120001-AT is a precision analog output module engineered for seamless integration within the ABB Advant and Master distributed control system (DCS) architecture. Rather than functioning as a standalone component, this module occupies a critical position within the I/O layer of a multi-tier automation hierarchy — converting digital control signals from the CPU layer into calibrated 4–20 mA or 0–10 V analog outputs that drive field actuators, control valves, variable frequency drives, and positioners in real-time process environments. Understanding its role within the full control architecture is essential for engineers designing, commissioning, or maintaining systems across manufacturing, power generation, petrochemical, water treatment, mining, metallurgy, and packaging industries.

Product Specification Table

System Compatibility Notes

The DSAO110 57120001-AT does not operate in isolation. Its value is fully realized when considered within the broader Advant control architecture, where each layer contributes to system-wide signal integrity, redundancy, and deterministic response. At the control layer, the ABB AC450 or AC410 controller CPU processes the automation logic and issues setpoint commands that are transmitted across the S100 I/O bus to the DSAO110 module. The module then converts these digital values into precise analog signals that drive downstream field devices.

Power distribution to the I/O subrack is managed by the DSBC172 or DSBC176 bus connection unit, which interfaces the DSAO110 and adjacent modules to the 24 VDC power rail. Redundant power supply configurations using the DSDP150 or DSDP110 power supply modules ensure that a single power failure does not interrupt analog output continuity — a critical requirement in continuous process industries such as petrochemical refining or power plant boiler control.

On the input side, analog input modules such as the DSAI130 or DSAI155 collect process variable feedback — temperature, pressure, flow — and return these values to the CPU for closed-loop PID regulation. The DSAO110 then adjusts its output accordingly, maintaining precise control over valve positions or drive speeds. This closed-loop coordination between DSAI and DSAO modules is the foundation of stable process control in Advant-based systems.

Digital I/O modules such as the DSDI110 and DSDO110 complement the analog layer by managing discrete signals — motor start/stop commands, limit switch feedback, and interlock logic — ensuring that the analog output layer operates within safe boundary conditions defined by the digital control logic. Communication gateways such as the DSCB110 or DSCS141 Fieldbus Communication Module extend the Advant architecture to PROFIBUS DP or FOUNDATION Fieldbus networks, enabling the DSAO110’s outputs to be coordinated with intelligent field devices and remote I/O stations across large plant footprints.

At the human-machine interface layer, operator workstations running ABB Advant Station or compatible SCADA platforms visualize the analog output values generated by the DSAO110, providing operators with real-time feedback on valve positions, drive references, and actuator states. This end-to-end signal chain — from CPU logic to analog output to field actuator to HMI visualization — represents the complete system integration of the DSAO110 within the Advant control hierarchy.

Industrial Application Notes

In continuous process manufacturing — including chemical reactors, distillation columns, and heat exchangers — the DSAO110 57120001-AT provides the analog output signals that position control valves with sub-percent accuracy, enabling tight temperature and pressure regulation across multi-loop control strategies. Its 12-bit resolution ensures that fine setpoint adjustments are faithfully translated into field-level actuator commands without quantization error.

In power generation and utility systems, the module supports turbine governor control, boiler feedwater valve positioning, and generator excitation reference outputs. The galvanic isolation between output channels and the S100 bus protects the control system from ground loops and electrical noise introduced by high-power field equipment — a common challenge in substation and power plant environments.

In oil, gas, and petrochemical facilities, the DSAO110 is deployed in safety-instrumented system (SIS) adjacent architectures where analog output accuracy and channel isolation are mandatory for regulatory compliance. Its compatibility with the Advant redundancy framework allows engineers to configure hot-standby output configurations that maintain process continuity during planned maintenance or unexpected module failures.

In water and wastewater treatment plants, the module drives variable frequency drives (VFDs) controlling pump speed, enabling energy-efficient flow management across distribution networks. The module’s wide operating temperature range and robust backplane mounting make it suitable for outdoor control cabinet installations in harsh environmental conditions.

In mining, metallurgy, and heavy industry, the DSAO110 supports conveyor speed references, furnace temperature setpoints, and hydraulic pressure control — applications where long-term module reliability and consistent analog output accuracy directly impact production throughput and product quality. Availability of verified replacement stock with a 12-Month Warranty ensures that maintenance teams can restore system functionality rapidly without extended procurement lead times.

Product Compatibility FAQ

Q1: Is the DSAO110 57120001-AT compatible with both the Advant Controller 450 and the Master DCS platform?
Yes. The DSAO110 is designed for the ABB S100 I/O bus architecture, which is shared across the Advant Controller 400 series (AC410, AC450) and the Master DCS platform. It mounts in standard Advant S100 I/O subracks and communicates via the backplane bus without requiring additional interface adapters. Engineers migrating between Master and Advant controller generations can retain existing DSAO110 modules, reducing hardware replacement costs during control system upgrades.

Q2: Can the DSAO110 be used in a redundant output configuration, and what companion modules are required?
Redundant analog output configurations in the Advant architecture typically require a redundancy switch module and dual DSAO110 units installed in adjacent subrack slots, with the active module driving the field output and the standby module maintaining a synchronized output value. The DSBC172 bus connection unit supports redundant I/O bus configurations, and the AC450 CPU’s redundancy management software handles automatic switchover without process bump. This architecture is recommended for critical control loops in power generation and petrochemical applications where output continuity is a safety requirement.

Q3: What does the 12-Month Warranty cover, and how does it support long-term maintenance planning?
The 12-Month Warranty covers hardware defects, component failures, and functional non-conformance under normal operating conditions from the date of shipment. For maintenance engineers managing aging Advant DCS installations, this warranty provides assurance that replacement modules sourced through ZYPLC meet functional specifications and will perform reliably within the existing control architecture. Combined with pre-shipment functional testing and system integration support — which includes guidance on subrack slot assignment, bus address configuration, and engineering tool parameter download — the warranty reduces commissioning risk and supports long-term spare parts inventory planning for extended plant lifecycles.
