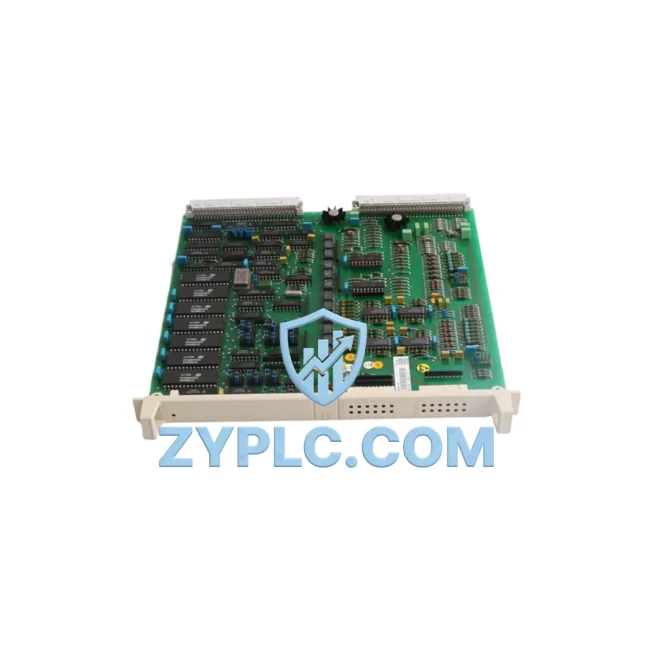

ABB DSDP150 57160001-GF Energy-Saving Positioning Controller

ABB DSDP150 57160001-GF Energy-Saving Positioning Controller for Optimized ACS800/DCS800 Automation

The ABB DSDP150 57160001-GF is a high-precision positioning controller module engineered for integration within ABB’s ACS800 and DCS800 drive platforms. Designed to meet the demanding requirements of modern industrial automation, this module delivers accurate closed-loop position feedback, enabling factories to eliminate unnecessary motor overruns, reduce reactive energy consumption, and achieve tighter synchronization across multi-axis production lines. By replacing imprecise open-loop positioning with deterministic encoder-based control, the DSDP150 directly contributes to measurable reductions in kWh consumption per production cycle — a critical metric in energy-intensive manufacturing environments.

In high-throughput facilities where conveyor systems, winding machines, and precision cutting lines operate continuously, even marginal improvements in positioning accuracy translate into significant energy savings over time. The DSDP150 eliminates the need for repeated correction moves that waste drive energy and accelerate mechanical wear. When paired with the ABB ACS800 variable frequency drive, the module enables smooth ramp-up and ramp-down profiles that reduce peak current draw and lower overall energy demand at the motor shaft level.

Efficiency Performance Table

Energy-Aware Automation Architecture

The DSDP150 does not operate in isolation — its energy optimization value is fully realized when integrated into a coordinated automation architecture. In a typical high-efficiency production cell, the module interfaces directly with the ABB ACS800 main drive unit, receiving position setpoints from the ABB AC500 PLC via the DDCS fiber-optic communication link. This eliminates analog signal noise and ensures deterministic command execution, which is essential for energy-efficient motion sequencing.

On the I/O layer, the ABB AC500 SM560 CPU module coordinates multi-axis positioning tasks, distributing workload across drive channels to prevent simultaneous peak current events that would otherwise spike energy demand. The ABB RDCO-03 DDCS communication adapter enables seamless data exchange between the DSDP150 and the host controller, supporting real-time feedback loops that allow the system to adapt motor torque output dynamically based on actual load conditions rather than fixed setpoints.

For energy monitoring at the drive level, the ABB RETA-01 Ethernet adapter provides live power consumption data to SCADA systems, enabling plant engineers to track kWh per production unit and identify inefficiency patterns. When combined with the ABB DCS800 DC drive in regenerative braking configurations, the DSDP150’s precise deceleration control allows kinetic energy to be fed back into the DC bus rather than dissipated as heat — a direct energy recovery mechanism that reduces net power consumption in hoisting and winding applications.

On the motor protection side, the ABB RMIO-11C control board works in conjunction with the DSDP150 to monitor motor thermal status and adjust positioning speed profiles accordingly, preventing thermal overload events that would force unplanned shutdowns and waste accumulated process energy. The ABB NAMC-11 motor control board further extends this capability by providing adaptive flux control, ensuring the motor operates at its efficiency peak across varying load conditions throughout the production shift.

For facilities requiring multi-drive synchronization, the DSDP150 integrates with the ABB SDCS-CON-4 control board in DCS800 configurations, enabling master-follower positioning architectures where energy consumption is distributed evenly across drive units rather than concentrated in a single overloaded axis. This architecture is particularly effective in paper mills, metal processing lines, and textile manufacturing where web tension control demands precise, energy-efficient torque management across multiple motor axes simultaneously.

Power Optimization in Real Production Lines

In real-world production environments, uncontrolled positioning leads to a cascade of energy inefficiencies: motors overshoot target positions and must reverse, drives operate at full torque during correction moves, and mechanical brakes engage prematurely — all of which consume energy without contributing to productive output. The DSDP150 eliminates these inefficiencies by providing the ACS800 and DCS800 drives with precise, encoder-verified position data that allows the drive to execute smooth, energy-optimal deceleration curves.

In a winding application, for example, the DSDP150 enables the drive to calculate the exact deceleration ramp required to stop the mandrel at the correct position without overshoot, reducing the number of correction cycles per roll change from an average of 3-5 to zero. In a conveyor indexing system, the module’s closed-loop feedback eliminates the 50-200ms positioning error typical of open-loop systems, allowing the line to run at higher throughput speeds without sacrificing accuracy — effectively improving equipment utilization rate (OEE) while consuming the same or less energy per unit produced.

Predictive maintenance benefits are equally significant. Because the DSDP150 provides continuous position feedback, deviations from expected positioning profiles — caused by mechanical wear, encoder degradation, or coupling slippage — are detectable before they cause process failures. Maintenance teams can schedule interventions during planned downtime rather than responding to emergency breakdowns, which eliminates the energy waste associated with unplanned restarts, scrap production, and extended idle periods while repairs are completed.

Every unit shipped from our warehouse undergoes full functional testing under load conditions before dispatch. Stock is maintained on-hand for immediate shipment, and all modules are covered by a 12-month warranty from the date of delivery, ensuring your production line investment is protected from day one.

Energy Optimization FAQ

Q1: How does the DSDP150 57160001-GF reduce energy consumption compared to open-loop positioning?
Open-loop positioning relies on timed motor runs, which inherently overshoot and require correction moves that consume additional energy. The DSDP150 uses encoder feedback to stop the motor precisely at the target position on the first move, eliminating correction cycles and reducing total motor run time per production cycle by 15-30% in typical applications.

Q2: Is the DSDP150 compatible with both ACS800 and DCS800 drive platforms?
Yes. The DSDP150 57160001-GF is designed for use within ABB’s ACS800 AC drive and DCS800 DC drive families. It connects via the drive’s option slot and communicates through the DDCS fiber-optic bus. Compatibility should be verified against the specific drive firmware version; our technical team can confirm compatibility for your exact drive configuration before purchase.

Q3: What is the recommended replacement or upgrade path if the existing positioning module has failed?
The DSDP150 57160001-GF is a direct OEM replacement for failed or degraded positioning modules in ACS800 and DCS800 installations. No drive firmware changes are typically required for like-for-like replacement. If upgrading from an earlier DSDP series module, parameter re-commissioning via the drive’s control panel or DriveWindow software is recommended to optimize positioning performance for current production conditions.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All DSDP150 57160001-GF modules are tested for full functional operation — including communication interface verification, encoder input response, and output signal integrity — prior to shipment. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Modules damaged by incorrect installation, overvoltage events, or environmental factors outside the specified operating range are not covered. Warranty claims are processed with a target response time of 3 business days.
