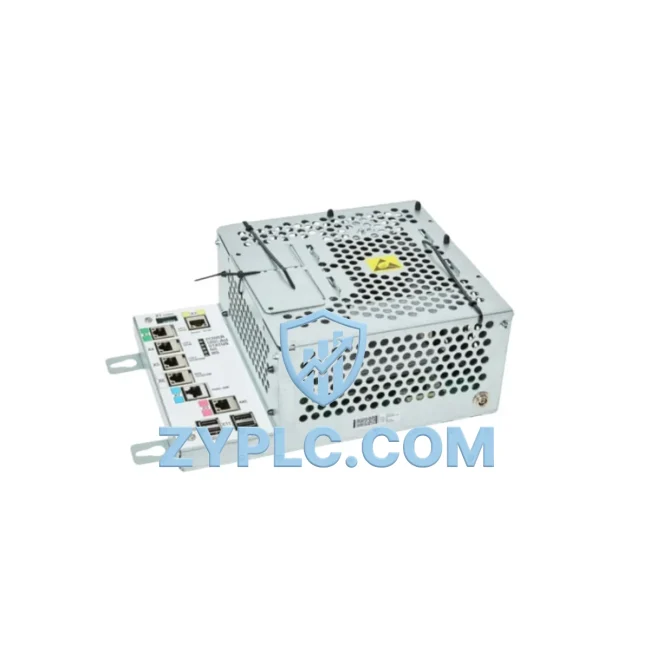

ABB DSQC1000 3HAC042766-001 Energy-Saving Robot Computer for IRC5

ABB DSQC1000 3HAC042766-001 Energy-Saving Robot Computer for Optimized IRC5 Automation

The ABB DSQC1000 (part number 3HAC042766-001) is the central computing unit of the IRC5 robot controller platform, engineered to deliver precise motion coordination, real-time process feedback, and measurable energy efficiency across demanding industrial automation environments. Unlike peripheral I/O or communication modules, the DSQC1000 sits at the core of the IRC5 controller cabinet, orchestrating every axis movement, safety interlock, and drive command with deterministic timing. For plant engineers focused on reducing energy waste, improving equipment utilization, and extending robot system service life, this module represents a critical investment in long-term operational efficiency.

In modern manufacturing facilities — whether automotive body shops, electronics assembly lines, food processing plants, or metal fabrication cells — energy consumption from robotic systems is a significant and often underestimated cost center. The DSQC1000 addresses this directly by enabling tighter synchronization between the IRC5 controller and the ABB drive units (such as the DSQC663 drive module and DSQC601 axis computer), ensuring that motor torque commands are issued with precision and that unnecessary holding currents are minimized during idle or low-load phases. This translates into measurable reductions in per-cycle energy draw without sacrificing throughput or repeatability.

Efficiency Performance Table

Energy-Aware Automation Architecture

The DSQC1000 does not operate in isolation — its energy efficiency value is fully realized when integrated within a well-designed IRC5 system architecture. At the drive layer, the DSQC663 drive module receives optimized torque reference signals from the DSQC1000, allowing servo motors to operate closer to their efficiency curves rather than at fixed maximum output. The DSQC601 axis computer works in tandem to distribute motion calculations, reducing computational overhead and enabling faster, smoother trajectory execution that inherently lowers peak current draw.

At the I/O layer, the DSQC652 digital I/O board and DSQC643 analog I/O module feed real-time process signals back to the DSQC1000, enabling adaptive control responses. When a sensor signals that a conveyor has paused or a part feeder is empty, the DSQC1000 can instruct the robot to enter a low-power standby posture rather than maintaining full servo engagement — a simple but highly effective energy-saving behavior in high-mix, variable-cycle production environments.

Communication efficiency is equally important. The DSQC688 PROFIBUS adapter and DSQC679 teach pendant interface allow the IRC5 system to exchange production data with upstream PLCs, SCADA systems, and MES platforms without introducing latency that would force the robot to hold position unnecessarily. When cycle times are tightly coordinated with line-side equipment, idle energy consumption drops significantly. Integration with an ABB Panel PC or third-party HMI via Ethernet further enables operators to monitor real-time energy consumption per robot cycle, identify outlier cycles caused by mechanical drag or worn tooling, and schedule predictive maintenance before efficiency losses compound.

For facilities running multiple IRC5 controllers in a coordinated cell, the DSQC1000’s network synchronization capability ensures that robots do not simultaneously accelerate to peak velocity — a common cause of demand spikes on facility power infrastructure. Staggered motion profiles, managed at the controller level, can reduce peak kVA demand and lower electricity costs under time-of-use tariff structures.

Power Optimization in Real Production Lines

In automotive welding lines, where IRB 6640 or IRB 6700 robots perform continuous spot welding operations across three shifts, the DSQC1000 enables energy logging at the controller level. Maintenance teams can extract cycle-by-cycle power data via the IRC5 Ethernet port and feed it into energy management dashboards. Deviations from baseline energy consumption — often the first indicator of bearing wear, cable drag, or tooling imbalance — can be flagged automatically, allowing corrective action before a failure causes unplanned downtime. In a 20-robot welding line, reducing unplanned stops by even one per shift per week can recover hundreds of hours of productive capacity annually.

In electronics assembly, where IRB 1600 or IRB 2600 robots handle pick-and-place operations at high cycle rates, the DSQC1000’s deterministic motion control ensures that acceleration and deceleration profiles are optimized for minimum energy per pick rather than maximum speed. This is particularly valuable in cleanroom environments where HVAC loads are sensitive to heat generated by robot drive systems — lower drive losses mean lower ambient heat, which in turn reduces cooling energy demand.

In food and beverage packaging lines, where robots operate in washdown environments and must comply with strict hygiene protocols, the DSQC1000’s reliable operation reduces the frequency of controller resets and unplanned restarts — each of which wastes energy during the re-homing and re-synchronization sequence. A stable, well-maintained DSQC1000 running on a tested and warranted replacement unit from ZYPLC ensures that the IRC5 controller remains in continuous productive operation, minimizing both energy waste and labor cost associated with fault recovery.

ZYPLC supplies the DSQC1000 3HAC042766-001 from verified inventory, with full functional testing completed prior to shipment. Each unit is backed by a 12-Month Warranty, providing procurement teams and maintenance engineers with the confidence to plan replacements without budget uncertainty. Fast global shipping ensures that critical spare units reach your facility before production schedules are impacted.

Energy Optimization FAQ

Q1: How does replacing a faulty DSQC1000 improve energy efficiency compared to running a degraded unit?
A degraded DSQC1000 may cause erratic drive commands, increased servo hunting, and extended cycle times — all of which increase energy consumption per part produced. A tested replacement unit restores deterministic motion control, allowing the IRC5 system to execute optimized trajectories as programmed, recovering both energy efficiency and throughput simultaneously.

Q2: Is the DSQC1000 3HAC042766-001 compatible with all IRC5 controller variants?
The 3HAC042766-001 is designed for the IRC5 single-cabinet and dual-cabinet controller platforms and is compatible with ABB robot models including the IRB 1600, IRB 2600, IRB 4600, IRB 6640, and IRB 6700 series. Compatibility with specific software versions of RobotWare should be confirmed against your controller’s current configuration. ZYPLC’s technical team can assist with compatibility verification prior to purchase.

Q3: What does the 12-Month Warranty from ZYPLC cover for the DSQC1000?
The 12-Month Warranty covers functional defects identified under normal operating conditions within the IRC5 controller environment. Each unit undergoes pre-shipment functional testing. In the event of a warranty claim, ZYPLC provides replacement or repair support to minimize disruption to your production schedule. Contact plc.sales@zyplc.com for warranty terms and claim procedures.

Q4: Can the DSQC1000 be used as a long-term spare to reduce energy losses from emergency downtime?
Yes. Holding a tested DSQC1000 as a certified spare eliminates the energy and productivity losses associated with extended downtime while sourcing a replacement under emergency conditions. ZYPLC recommends that facilities operating multiple IRC5 controllers maintain at least one spare DSQC1000 in inventory, particularly in high-utilization environments where robot uptime directly impacts line OEE and energy cost per unit produced.
