ABB DSQC1018 3HAC050363-001 System-Ready Main Computer for IRC5 Architecture

ABB DSQC1018 3HAC050363-001 System-Ready Main Computer for IRC5 Architecture: Control System Architecture and Upstream-Downstream Coordination

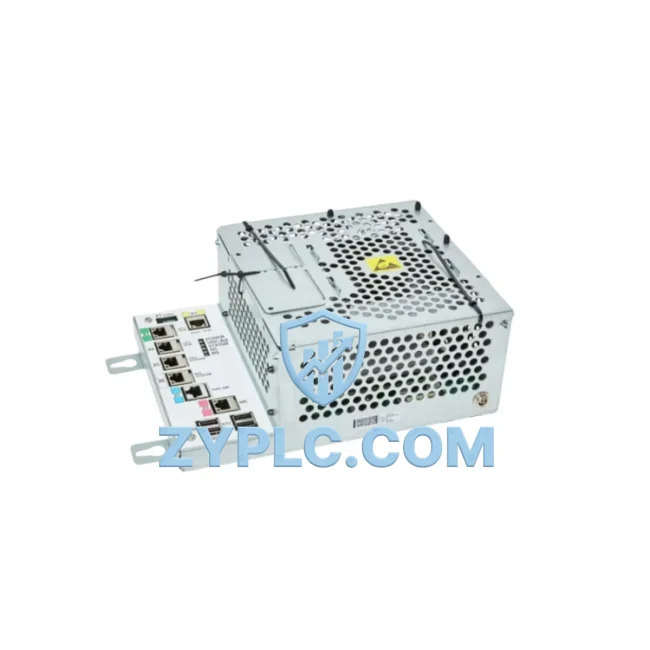

The ABB DSQC1018 (part number 3HAC050363-001) is the central processing unit of the IRC5 robot controller platform, engineered to serve as the computational backbone of ABB’s modular industrial robot control architecture. Rather than functioning as a standalone component, the DSQC1018 operates at the apex of a layered automation hierarchy — coordinating signal flow between the drive system, I/O modules, communication gateways, operator interfaces, and the mechanical execution layer of the robot arm. In high-throughput manufacturing environments, the integrity of this central computer directly determines the reliability, scalability, and long-term maintainability of the entire robotic cell.

Designed specifically for the IRB6700 series — ABB’s flagship heavy-payload industrial robot — the DSQC1018 manages real-time motion interpolation, axis synchronization, safety supervision, and process program execution. Its architecture supports seamless integration with upstream MES and SCADA systems while maintaining deterministic control over downstream servo drives and end-effector tooling. For system integrators and maintenance engineers, sourcing a verified DSQC1018 with a confirmed 12-Month Warranty ensures that the control architecture remains consistent across planned maintenance cycles and unplanned replacement events.

Architecture Specification Table

Coordinated Control System Design

The DSQC1018 does not operate in isolation — its value is realized through tight integration with every layer of the IRC5 control architecture. At the drive layer, the main computer communicates with the DSQC668 drive unit and DSQC663 axis computer to deliver synchronized multi-axis motion profiles for the IRB6700’s six-axis kinematic chain. The DSQC1018 arbitrates between the motion planner and the physical servo amplifiers, ensuring that acceleration curves, torque limits, and position feedback loops remain within programmed tolerances even under variable payload conditions up to 150 kg or 235 kg depending on the robot variant.

At the I/O layer, the DSQC1018 interfaces with the DSQC652 digital I/O board and DSQC651 analog I/O board, enabling the robot controller to receive process signals from sensors, safety light curtains, conveyor encoders, and vision systems. These signals are processed in real time by the main computer’s task scheduler, which allocates CPU cycles across motion tasks, background logic tasks, and interrupt-driven safety routines simultaneously.

For network integration, the DSQC1018 supports the DSQC688 fieldbus adapter, enabling the IRC5 controller to participate in PROFIBUS-DP or DeviceNet plant networks alongside PLCs, distributed I/O racks, and SCADA servers. In automotive body-in-white lines and heavy fabrication cells, this network capability allows the IRB6700 to receive part-present signals, weld schedule parameters, and conveyor synchronization triggers directly from the plant control layer without requiring dedicated hardwired interlocks.

The FlexPendant (DSQC679) connects to the DSQC1018 via a dedicated USB-based pendant interface, providing operators with real-time program editing, jog control, and diagnostic access. The main computer manages the pendant communication protocol, ensuring that operator inputs are validated against active safety zones and program state before execution. In multi-robot cells, the DSQC1018 also supports the MultiMove option, coordinating motion between multiple IRC5 controllers through a shared Ethernet backbone.

From a power architecture perspective, the DSQC1018 receives regulated 24 VDC from the IRC5 internal power supply unit (DSQC661), which in turn draws from the cabinet’s main transformer. Proper power sequencing — managed by the main computer’s startup firmware — ensures that all downstream modules including the DSQC668 drive unit and DSQC652 I/O boards are initialized in the correct order, preventing transient faults during controller power-on cycles.

Application in Layered Automation Systems

In automotive manufacturing, the IRB6700 equipped with a DSQC1018 main computer is deployed in spot welding, arc welding, material handling, and press tending applications. The main computer’s high-speed task execution supports weld timer synchronization with external weld controllers, enabling cycle times below 1.5 seconds per weld point in high-volume body shop lines. The DSQC1018’s ability to manage multiple concurrent tasks — motion, I/O, communication, and safety — without dedicated co-processors makes it the preferred replacement unit for maintenance teams managing large fleets of IRC5 controllers.

In heavy fabrication and structural steel processing, the IRB6700’s payload capacity combined with the DSQC1018’s motion coordination capability supports plasma cutting, laser cutting head guidance, and large-part positioner synchronization. The main computer manages the coordinated motion between the robot arm and external servo positioners through the IRC5 external axis interface, maintaining TCP accuracy across extended work envelopes.

In process industries including petrochemical plant maintenance, power generation equipment assembly, and mining equipment fabrication, the DSQC1018 supports long-duration continuous operation with minimal intervention. Its firmware architecture includes watchdog timers, memory error correction, and automatic fault logging to the RobotWare event log, enabling maintenance engineers to perform root-cause analysis without requiring on-site ABB service personnel for initial diagnostics.

For system integrators managing multi-site robot fleets, maintaining a verified spare DSQC1018 with a 12-Month Warranty in the site spare parts inventory reduces mean time to repair (MTTR) from days to hours. ZYPLC supplies the DSQC1018 (3HAC050363-001) with full traceability documentation, enabling direct drop-in replacement without controller reconfiguration beyond standard RobotWare license transfer procedures.

Architecture Engineering FAQ

Q1: Is the DSQC1018 (3HAC050363-001) compatible with all IRB6700 variants, and does it require RobotWare reconfiguration after replacement?
The DSQC1018 is the standard main computer for all IRB6700 variants including the IRB6700-150/2.85, IRB6700-200/2.60, and IRB6700-235/2.65. After physical replacement, the RobotWare system parameters and robot configuration files stored on the existing CompactFlash or system SD card are transferred to the new unit. A full system restore from backup is recommended to ensure that calibration data, tool definitions, and safety zone configurations are correctly applied. No hardware-level reconfiguration of downstream modules such as the DSQC668 drive unit or DSQC652 I/O boards is required.

Q2: Can the DSQC1018 support redundant controller configurations, and what additional hardware is required?
The IRC5 platform supports hot-standby redundancy through ABB’s IRC5 Redundancy option, which requires two complete IRC5 controller cabinets each equipped with a DSQC1018 main computer. The redundancy synchronization is managed over a dedicated Ethernet crosslink between the two main computers, with automatic failover in the event of a primary controller fault. This configuration is commonly deployed in continuous-process applications such as automotive sealing lines and paint shop conveyors where unplanned downtime carries significant production cost. ZYPLC can supply matched pairs of DSQC1018 units for redundant installations.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance planning for the DSQC1018?
The 12-Month Warranty provided by ZYPLC covers manufacturing defects, component failure under normal operating conditions, and functional non-conformance to ABB’s published specifications for the DSQC1018. Warranty claims are processed through ZYPLC’s technical support team, reachable at plc.sales@zyplc.com or +86 19859288691. For long-term maintenance planning, ZYPLC recommends establishing a site-level spare parts agreement that includes at least one DSQC1018 unit per five IRC5 controllers in the fleet, aligned with ABB’s recommended preventive maintenance intervals of 8,000–10,000 operating hours for IRC5 main computer modules.
