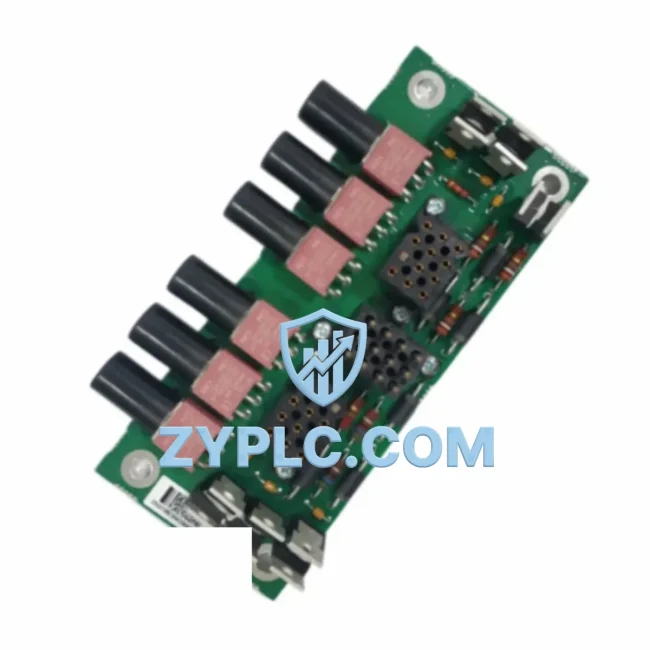

ABB DSQC1050 3HAC064474-001 System-Ready Brake Control for IRC5 Architecture

ABB DSQC1050 3HAC064474-001 System-Ready Brake Control for IRC5 Architecture

The ABB DSQC1050 (part number 3HAC064474-001) is a precision-engineered brake plate module designed to operate as an integral component within the ABB IRC5 robot controller architecture. Rather than functioning as a standalone accessory, this module occupies a critical position in the servo drive and motion control layer of the IRC5 system, directly governing the brake engagement and release sequences for ABB industrial robot axes. In multi-axis robotic cells — whether deployed in automotive body welding, precision assembly, palletizing, or arc welding applications — the reliability of the brake control subsystem determines the safety, repeatability, and uptime of the entire robotic workcell.

Understanding the DSQC1050’s role requires viewing it within the full IRC5 control hierarchy. The IRC5 controller integrates a main computer unit (MCU), axis computer boards, drive units, I/O modules, and safety circuits into a unified cabinet architecture. The DSQC1050 interfaces directly with the drive system, receiving brake control signals from the axis computer and translating them into precise electrical commands that engage or release the electromagnetic brakes on each robot joint. This coordination is essential during power-down sequences, emergency stops, and controlled holds — ensuring that robot arms do not drift or drop under gravity when drives are de-energized.

From a system architecture perspective, the DSQC1050 works in close coordination with components such as the DSQC1000 main computer unit, DSQC662 I/O module, DSQC679 teach pendant interface, DSQC608 power supply unit, and DSQC369 axis computer board. The brake plate module receives its logic signals through the IRC5 internal backplane bus, ensuring synchronized operation with the drive units — including the DSQC601 drive unit and DSQC602 rectifier unit — that power the servo motors on each robot axis. This tight integration means that replacing or upgrading the DSQC1050 must be approached as a system-level task, with attention to firmware compatibility, connector pinout verification, and brake circuit calibration post-installation.

In layered automation architectures, the IRC5 controller sits at the motion control layer, receiving trajectory commands from higher-level systems such as RAPID program execution engines, PLC-based cell controllers (often Siemens S7 or Allen-Bradley ControlLogix platforms), or MES/SCADA supervisory systems. The DSQC1050 operates transparently within this hierarchy — its brake control functions are abstracted away from the application programmer but are fundamental to the safe execution of every motion instruction. When the IRC5 executes a MoveJ or MoveL instruction and then holds position, the brake plate module is responsible for locking the joints securely, preventing any unintended movement that could compromise product quality or operator safety.

Architecture Specification Table

Coordinated Control System Design

The DSQC1050 achieves its full value only when considered within the coordinated design of the IRC5 controller system. At the core of the IRC5 architecture sits the DSQC1000 main computer unit, which runs the ABB RAPID runtime environment and manages all motion planning, I/O coordination, and system supervision. The DSQC1000 communicates with the DSQC369 axis computer board, which handles real-time servo loop calculations and generates the brake control commands that the DSQC1050 executes at the hardware level.

Power distribution within the IRC5 cabinet is managed by the DSQC608 power supply unit, which provides regulated 24 VDC logic power to the brake circuits, I/O modules, and control boards. The DSQC601 drive unit and DSQC602 rectifier unit form the drive layer, converting AC mains power into the DC bus voltage that feeds the servo amplifiers for each robot axis. When an emergency stop or controlled power-down is initiated, the DSQC1050 brake plate ensures that brake engagement occurs in the correct sequence relative to drive de-energization — a timing-critical operation that prevents mechanical shock and protects both the robot and the workpiece.

On the I/O and communication side, the DSQC662 digital I/O module handles field-level signals from sensors, safety interlocks, and peripheral equipment, while fieldbus adapter modules such as the DSQC688 PROFIBUS adapter or DSQC695 EtherNet/IP adapter connect the IRC5 to plant-level PLC networks. The DSQC679 FlexPendant interface unit provides the human-machine interface layer, allowing operators and engineers to jog axes, monitor brake status, and execute diagnostic routines. All of these components share the IRC5 internal communication bus, and the DSQC1050 brake plate’s reliable operation is a prerequisite for safe manual jogging and automatic program execution alike.

For system integrators managing spare parts inventories across multi-robot installations, maintaining a stock of DSQC1050 units alongside other high-wear IRC5 modules — such as the DSQC662 I/O module, DSQC608 power supply, and DSQC369 axis computer — is a recognized best practice for minimizing unplanned downtime. The 12-Month Warranty provided with each DSQC1050 unit from ZYPLC supports this strategy by reducing the financial risk of holding critical spare stock.

Application in Layered Automation Systems

The ABB DSQC1050 3HAC064474-001 finds application across a wide range of industrial sectors where ABB IRC5-based robots are deployed in demanding, continuous-operation environments.

In automotive manufacturing, IRC5-controlled robots perform spot welding, seam sealing, and body assembly operations on high-speed transfer lines. The brake plate module’s reliable hold function is critical during tool changes and line stops, where robot arms must remain stationary under load for extended periods without drive power. In arc welding and cutting applications, precise brake engagement prevents torch drift between weld passes, directly affecting weld quality and repeatability.

In electronics and precision assembly environments, IRC5 robots equipped with force-controlled end effectors rely on the brake system to maintain exact positional holds during component insertion and inspection cycles. The DSQC1050’s consistent brake response contributes to sub-millimeter repeatability across thousands of daily cycles.

In process industries — including petrochemical, pharmaceutical, and food processing — IRC5 robots operate in environments with strict safety requirements. The brake plate module supports functional safety compliance by ensuring that robot axes are mechanically locked during safety-rated stops (Category 0 and Category 1 stops per IEC 62061 and ISO 13849), preventing any residual motion after the drive system is de-energized.

In logistics and palletizing applications, high-payload IRC5 robots handle heavy loads at speed. The brake system must reliably hold loads at height during pallet pattern changes and conveyor synchronization pauses. A degraded or failed brake plate in this context creates both a safety hazard and a production bottleneck — making the availability of verified replacement DSQC1050 units with 12-Month Warranty coverage an operational necessity.

For mining, metallurgy, and heavy industry applications, where IRC5 robots operate in high-vibration, high-temperature environments, the DSQC1050’s robust design and verified compatibility with the IRC5 architecture ensure consistent performance even under challenging ambient conditions.

Architecture Engineering FAQ

Q1: Is the DSQC1050 3HAC064474-001 compatible with all IRC5 controller variants, including the IRC5 Compact and Panel Mounted versions?
The DSQC1050 is designed for the standard IRC5 single-cabinet and dual-cabinet controller platforms. Compatibility with IRC5 Compact and Panel Mounted variants depends on the specific robot model and cabinet configuration. Before ordering, provide your IRC5 serial number and robot model to our technical team at plc.sales@zyplc.com for a verified compatibility check. Our engineers will confirm the correct part number and any required adapter hardware for your specific architecture.

Q2: What is the recommended procedure for replacing the DSQC1050 in a live production environment, and are there any firmware or calibration steps required after installation?
Replacement of the DSQC1050 should be performed with the IRC5 controller fully powered down and locked out per your site’s LOTO (Lockout/Tagout) procedure. After physical installation, the IRC5 system should be powered up and a brake test routine executed via the FlexPendant (DSQC679) to verify correct brake engagement and release on all axes. In most IRC5 configurations, no firmware update is required for the brake plate module itself, but the axis computer (DSQC369) calibration data should be verified to ensure brake timing parameters remain within specification. ZYPLC provides post-sale technical support for installation and commissioning queries within the 12-Month Warranty period.

Q3: How does ZYPLC’s 12-Month Warranty and Contextual Integration support work for the DSQC1050, and what does it cover?
Every DSQC1050 3HAC064474-001 unit supplied by ZYPLC carries a 12-Month Warranty covering manufacturing defects and functional failure under normal operating conditions within the IRC5 architecture. Contextual Integration support means that our technical team verifies each unit’s compatibility within your specific IRC5 system context — including controller generation, drive configuration, and robot model — before shipment. In the event of a warranty claim, ZYPLC provides rapid replacement dispatch via DHL or FedEx to minimize production downtime. Contact our team at +86 19859288691 or plc.sales@zyplc.com for warranty registration and support.
