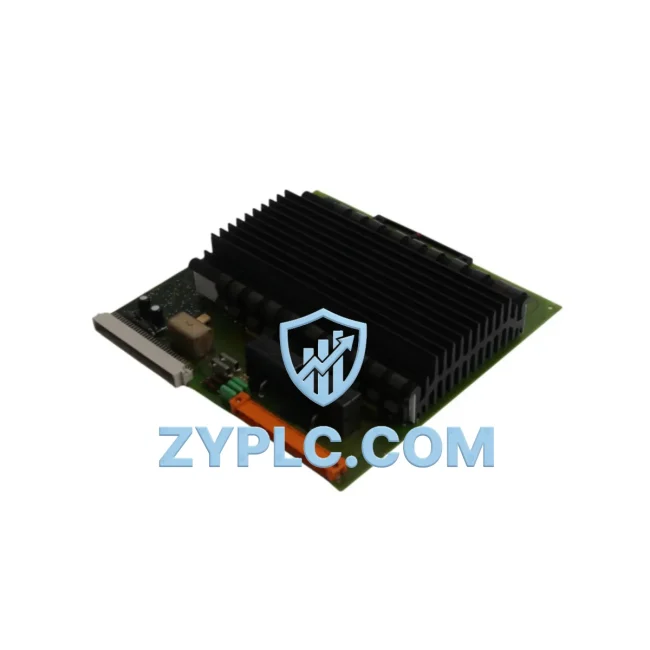

ABB DSQC266T System-Ready Servo Drive for DSQC Series Architecture

ABB DSQC266T System-Ready Servo Drive for DSQC Series Architecture: Control System Architecture and Upstream-Downstream Coordination

The ABB DSQC266T is a high-performance servo drive unit engineered for seamless integration within the ABB DSQC modular control architecture. Rather than functioning as a standalone component, the DSQC266T occupies a critical position in the motion control layer of industrial automation systems — bridging the command intelligence of the IRC5 or S4C+ robot controller with the physical execution demands of servo motors and mechanical axes. Understanding its role requires examining the full system stack: from the CPU and communication backbone down through the I/O layer, power distribution, and ultimately to the actuator level where motion is realized.

In a complete ABB robot control system, the DSQC266T works in close coordination with the main computer unit (such as the DSQC639 or DSQC645), the axis computer (DSQC668), and the drive system power supply (DSQC609). The servo drive receives interpolated motion commands from the axis computer, converts them into precise current and voltage waveforms, and delivers controlled power to each motor axis. This tight integration ensures that position feedback, torque control, and velocity regulation are all synchronized within the IRC5 controller’s real-time execution environment. Any disruption in this chain — whether from a degraded drive unit, a mismatched firmware version, or an incompatible backplane connection — can cascade into axis faults, reduced path accuracy, or complete motion stoppage.

The DSQC266T is designed to slot into the ABB drive module rack alongside companion units such as the DSQC264 rectifier unit and the DSQC265 capacitor unit, forming a complete drive train assembly. The rectifier converts incoming AC supply into a stable DC bus, the capacitor unit buffers energy during dynamic braking and acceleration transients, and the DSQC266T manages the final inverter stage for each axis. This modular architecture allows engineers to replace individual drive channels without disturbing the entire drive cabinet, significantly reducing mean time to repair (MTTR) in production environments.

Architecture Specification Table

Coordinated Control System Design

Deploying the DSQC266T effectively requires a holistic view of the ABB IRC5 drive cabinet architecture. At the top of the hierarchy sits the main computer unit — typically a DSQC639 or DSQC645 — which runs the RobotWare operating system and manages program execution, safety supervision, and system-level communication. Below this, the DSQC668 axis computer handles real-time interpolation and servo loop closure, issuing torque and velocity references to the drive layer at high update rates.

The DSQC266T receives these references via the internal drive communication bus and translates them into gate-drive signals for the IGBT inverter stage. Alongside it in the drive rack, the DSQC264 rectifier unit maintains the DC bus voltage, while the DSQC265 capacitor unit provides energy storage for regenerative braking events. For systems with extended I/O requirements, the DSQC652 I/O unit and DSQC651 DeviceNet gateway handle field-level signal routing, ensuring that sensor feedback and actuator commands flow reliably between the robot controller and peripheral equipment.

In multi-robot cells or coordinated motion applications, the DSQC658 communication board enables high-speed data exchange between controllers, supporting synchronized path execution across multiple arms. The DSQC662 fieldbus adapter extends connectivity to PROFIBUS or EtherNet/IP networks, allowing the IRC5 system to participate in plant-wide SCADA or DCS architectures. At the human-machine interface layer, the FlexPendant (IRC5 teach pendant) provides operators with real-time drive status, axis load monitoring, and fault diagnostics — all of which depend on the DSQC266T reporting accurate current and temperature data upstream.

This interconnected design philosophy means that sourcing a replacement DSQC266T from a reliable supplier with verified stock and a 12-Month Warranty is not merely a procurement decision — it is a system integrity decision. A drive unit that has not been properly tested or that carries latent faults can introduce intermittent axis errors that are difficult to diagnose and costly to resolve in production.

Application in Layered Automation Systems

The DSQC266T finds application across a wide range of industrial sectors where ABB IRC5 or S4C+ robot systems are deployed as part of larger layered automation architectures.

In automotive manufacturing, ABB robots equipped with DSQC266T drive units perform spot welding, body assembly, and paint application tasks on high-speed transfer lines. The drive unit’s ability to maintain precise torque control during rapid acceleration and deceleration cycles is essential for maintaining weld quality and path repeatability at production rates exceeding 60 jobs per hour.

In electronics and semiconductor assembly, the DSQC266T supports high-precision pick-and-place and dispensing operations where positional accuracy at the sub-millimeter level is required. The servo drive’s low-latency response to axis computer commands ensures that fine motion profiles are executed without overshoot or settling delay.

In petrochemical and process industries, ABB robot systems with DSQC-series drive architectures are used for valve manipulation, sampling, and hazardous material handling in environments where human access is restricted. The modular drive design allows maintenance teams to swap out a DSQC266T during planned shutdowns without requiring full system reconfiguration, minimizing downtime in continuous-process facilities.

In metal fabrication and foundry applications, the drive unit handles the high inertia loads associated with heavy part manipulation, die casting extraction, and grinding operations. The DC bus architecture shared with the DSQC264 rectifier provides the energy headroom needed for high-torque acceleration without tripping overcurrent protection.

In food and beverage packaging lines, the DSQC266T supports hygienic-design robot cells where frequent washdown cycles demand robust cabinet sealing and reliable drive performance across temperature and humidity variations. The 12-Month Warranty offered by ZYPLC provides procurement teams with the assurance needed to justify spare-part investment in these demanding environments.

Architecture Engineering FAQ

Q1: Is the DSQC266T compatible with both IRC5 and S4C+ controller platforms, and are there any firmware or hardware revision considerations?
The DSQC266T is designed for use within ABB’s DSQC-series drive architecture, which spans both the S4C+ and IRC5 controller generations. However, hardware revisions (indicated by suffix letters or date codes on the unit label) may affect compatibility with specific axis computer firmware versions. Before installation, engineers should verify that the drive unit revision matches the axis computer (DSQC668 or DSQC656) and the RobotWare version running on the main computer unit. ZYPLC’s technical team can assist with revision matching prior to shipment to ensure contextual integration with your existing system architecture.

Q2: What is the recommended procedure for replacing a DSQC266T in a live production environment, and how does the modular rack design support minimal downtime?
The IRC5 drive module rack is designed for channel-level replacement without disturbing adjacent drive units. The recommended procedure involves placing the affected axis in a safe, de-energized state via the IRC5 safety chain, discharging the DC bus capacitors (monitored via the DSQC265 capacitor unit status LED), and then extracting the DSQC266T from its rack slot. The replacement unit should be installed with the controller in maintenance mode, followed by a drive calibration sequence via the FlexPendant. Full axis commissioning, including resolver offset verification and load identification, should be completed before returning the system to automatic operation. The 12-Month Warranty from ZYPLC covers the replacement unit throughout this commissioning period.

Q3: How does ZYPLC’s 12-Month Warranty and pre-shipment testing process ensure long-term reliability for the DSQC266T in critical automation infrastructure?
Every DSQC266T supplied by ZYPLC undergoes a structured inspection and functional test protocol before shipment. This includes visual inspection for physical damage, power-on verification of internal DC bus regulation, gate-drive signal integrity checks, and communication bus handshake testing where applicable. Units that do not meet specification are quarantined and not offered for sale. The 12-Month Warranty covers defects in materials and workmanship arising under normal operating conditions, providing engineering and procurement teams with a documented quality assurance baseline. ZYPLC maintains inventory of DSQC-series components to support rapid dispatch for both planned maintenance and emergency replacement scenarios.
