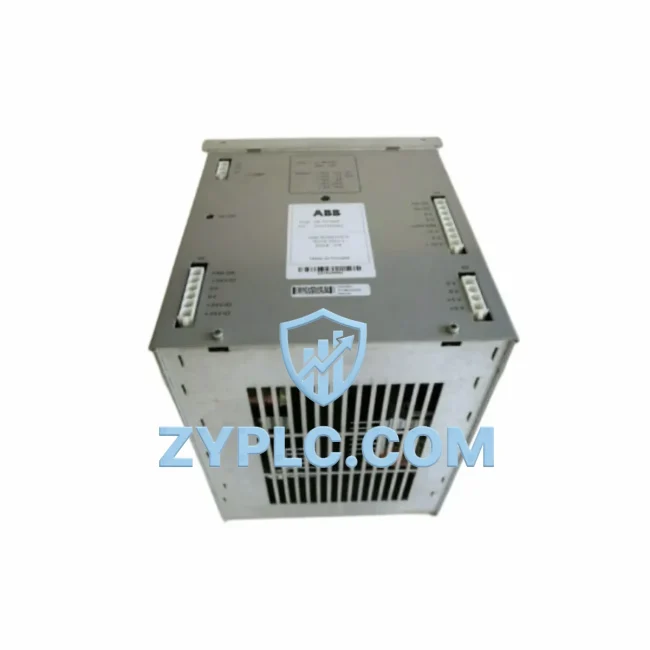

ABB DSQC334 3HAB5845-1 System-Ready Power Supply for S4C+ Architecture

ABB DSQC334 3HAB5845-1 System-Ready Power Supply for S4C+ Control Architecture

The ABB DSQC334 (3HAB5845-1) is a dedicated power supply module engineered for deployment within ABB’s S4C+ and IRC5 robot controller platforms. In a fully integrated industrial control system, power integrity is the foundation upon which every other layer depends — from the CPU and I/O modules to the communication gateways, HMI panels, and servo drives. The DSQC334 fulfills this foundational role by delivering stable, regulated DC power to the controller backplane, ensuring that upstream and downstream components operate within their specified electrical tolerances at all times.

Within the S4C+ architecture, the DSQC334 works in close coordination with the main computer board (DSQC373 or DSQC562), the axis computer (DSQC346), and the I/O units (DSQC328, DSQC332) mounted on the same controller rack. Its regulated output directly supports the signal integrity of digital and analog I/O channels, preventing voltage fluctuation-induced faults that can disrupt process continuity in high-cycle manufacturing environments. The module’s design also accommodates the power demands of communication interface boards such as the DSQC352 (DeviceNet) and DSQC378 (Profibus), which require clean, stable supply rails to maintain fieldbus synchronization.

Architecture Specification Table

Coordinated Control System Design

The DSQC334 does not operate in isolation — it is an integral node in a layered control architecture. At the control layer, the DSQC373 main computer board relies on the DSQC334’s +5V and +15V rails to execute motion planning, program logic, and system diagnostics. At the I/O layer, modules such as the DSQC328 digital I/O board and DSQC332 analog I/O board draw regulated power from the same backplane bus, enabling precise signal conditioning for sensors, actuators, and process instrumentation.

At the network layer, fieldbus interface cards including the DSQC352 (DeviceNet master) and DSQC378 (Profibus DP) depend on stable power delivery to maintain deterministic communication cycles with PLCs, remote I/O stations, and SCADA systems. Any ripple or dropout in the supply rail can introduce latency or packet loss on the fieldbus, which in turn affects the synchronization of servo drives and end-effectors at the execution layer.

For redundancy-critical installations, the DSQC334 is typically paired with an external UPS module or a secondary power feed routed through the controller cabinet’s power distribution terminal block. This arrangement ensures that a primary supply interruption does not propagate to the CPU or I/O layers, preserving program state and preventing uncontrolled axis movement. The DSQC346 axis computer, which manages real-time interpolation for up to six robot axes, is particularly sensitive to power transients — making the DSQC334’s regulated output essential for maintaining trajectory accuracy during high-speed operations.

At the human-machine interface layer, the FlexPendant (IRC5 teach pendant) and any panel-mounted operator terminals connected via the controller’s service port also benefit from the stable power environment created by the DSQC334. Voltage instability at the controller level can manifest as HMI freezes, communication timeouts, or erratic touchscreen behavior — issues that are eliminated when the power supply module is functioning within specification.

Application in Layered Automation Systems

The DSQC334 finds application across a broad range of industrial sectors where ABB S4C+ and IRC5 robot controllers are deployed as the primary motion control platform.

In automotive manufacturing, S4C+ controllers equipped with DSQC334 power supplies drive spot welding, arc welding, and body assembly robots operating in multi-shift, high-duty-cycle environments. The module’s thermal stability ensures consistent performance across extended production runs without requiring mid-shift maintenance interventions.

In electronics and semiconductor assembly, where sub-millimeter positioning accuracy is mandatory, the DSQC334’s clean DC output prevents ground noise from coupling into the axis computer’s encoder feedback circuits, preserving the positional resolution of the robot’s joint encoders.

In petrochemical and process industries, ABB robots equipped with DSQC334 modules handle material transfer, valve actuation assistance, and inspection tasks in environments where power quality is often compromised by large motor loads and variable-frequency drives operating on the same electrical infrastructure. The module’s input voltage tolerance accommodates these supply variations without triggering protective shutdowns.

In water treatment and utilities, where continuous operation is critical and maintenance windows are narrow, the DSQC334’s proven reliability and the availability of tested replacement stock through ZYPLC’s inventory program allow maintenance teams to execute rapid module swaps during scheduled outages, minimizing unplanned downtime.

In metal processing and foundry applications, the module operates reliably in high-ambient-temperature controller cabinets, supporting robots engaged in casting extraction, grinding, and surface treatment — processes that demand consistent power delivery over long operational cycles.

Architecture Engineering FAQ

Q1: Is the DSQC334 (3HAB5845-1) compatible with both S4C+ and IRC5 controller platforms?
The DSQC334 with part number 3HAB5845-1 is primarily designed for the ABB S4C+ controller platform. While some IRC5 installations may use similar power supply architectures, engineers should verify the specific power supply slot configuration and backplane connector pinout against the IRC5 controller documentation before substitution. ZYPLC’s technical team can assist with compatibility verification prior to order placement.

Q2: How does replacing the DSQC334 affect system calibration and program data?
The DSQC334 is a power supply module and does not store robot programs, calibration data, or system parameters. Replacing the module does not affect the data held in the DSQC373 main computer’s flash memory or the system’s battery-backed RAM. However, it is recommended to perform a controlled shutdown, back up the system configuration via the FlexPendant or RobotStudio, and verify all I/O signals and axis positions after power restoration to confirm system integrity.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance?
All DSQC334 units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. The warranty includes technical support for installation, commissioning, and fault diagnosis. For long-term maintenance planning, ZYPLC maintains a managed inventory program for S4C+ and IRC5 spare parts, enabling customers to reserve critical modules — including DSQC334, DSQC373, DSQC346, and DSQC328 — for scheduled maintenance cycles, reducing lead time risk in production-critical environments.
