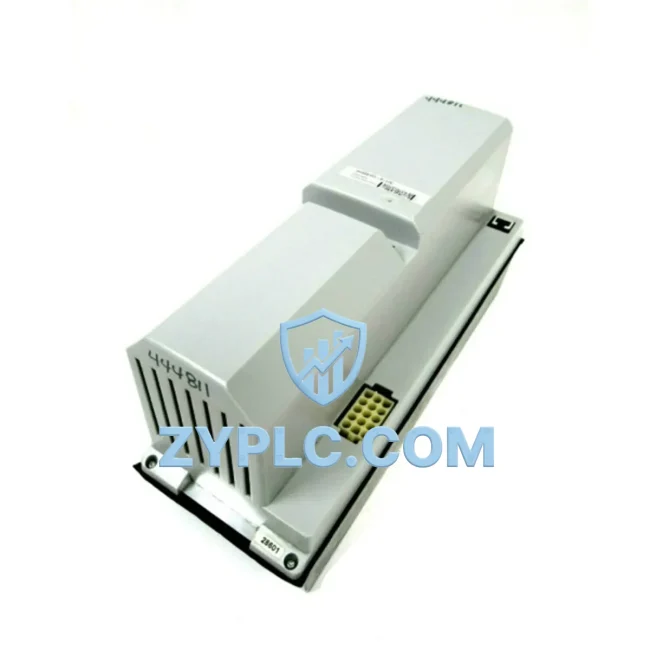

The ABB DSQC346G is a precision-engineered servo drive interface module purpose-built for deployment within the ABB IRC5 robot controller architecture. Rather than functioning as a standalone component, the DSQC346G occupies a critical position in the layered automation hierarchy — bridging the motion control layer and the drive execution layer to ensure deterministic signal transmission, synchronized axis coordination, and long-term system reliability. In industrial environments where uptime is non-negotiable, the DSQC346G delivers the structural consistency that modern robotic control systems demand.

Within the IRC5 controller cabinet, the DSQC346G interfaces directly with the drive unit stack, coordinating servo reference signals across multiple robot axes. Its role in the control architecture is to translate high-level motion commands from the main computer module — typically the DSQC639 or DSQC1000 main computer board — into precise, low-latency drive instructions that govern motor torque, velocity, and position. This contextual integration ensures that the entire motion chain, from path planning to physical actuator response, operates as a unified system rather than a collection of independent components.

The module is designed to operate within the IRC5 single cabinet and dual cabinet configurations, supporting both standard and compact controller variants. Its electrical interface is compatible with the ABB drive unit backplane, and it communicates via the internal SREA (Servo Reference and Encoder Adapter) bus, which provides high-speed, noise-immune signal routing between the controller and the servo drives. This architecture eliminates the latency and signal degradation risks associated with external cabling, making the DSQC346G an essential element of any high-precision IRC5 installation.

Architecture Specification Table

Coordinated Control System Design

The DSQC346G does not operate in isolation — its value is realized through its coordinated role within the complete IRC5 control system architecture. At the top of the hierarchy, the DSQC1000 or DSQC639 main computer board executes the RobotWare motion kernel, generating real-time axis trajectories and motion profiles. These commands are passed down through the internal communication backbone to the DSQC346G, which translates them into servo reference signals distributed to each drive unit in the cabinet.

The drive units themselves — such as the DSQC508 or DSQC374 drive modules — receive these signals and regulate the power electronics that drive the robot’s servo motors. The DSQC346G also manages encoder feedback routing, collecting position and velocity data from each axis and returning it to the main computer for closed-loop control. This bidirectional signal flow is the foundation of IRC5’s high-precision motion performance.

Power distribution within the IRC5 cabinet is managed by the DSQC609 power supply unit, which provides regulated 24 VDC to the DSQC346G and other logic-level modules. The DSQC662 I/O module handles digital and analog I/O for peripheral devices, while the DSQC688 fieldbus adapter enables DeviceNet or PROFIBUS connectivity to external PLCs and SCADA systems. For applications requiring human-machine interface access, the FlexPendant (IRC5 teach pendant) connects via the DSQC679 teach pendant interface board, providing operators with real-time system status and motion control access.

In multi-robot or coordinated motion applications, the DSQC346G’s role becomes even more critical. When multiple IRC5 controllers are networked via the DSQC615 Ethernet switch module or integrated into a MultiMove configuration, the servo interface module must maintain precise timing synchronization across all axes. Any degradation in the DSQC346G’s signal integrity would propagate through the entire coordinated motion system, making module quality and verified compatibility essential selection criteria.

Application in Layered Automation Systems

The ABB DSQC346G finds application across a broad spectrum of industrial automation environments where the IRC5 platform is deployed as the primary motion control architecture.

In automotive manufacturing, IRC5-controlled robots equipped with the DSQC346G perform spot welding, arc welding, material handling, and assembly operations on high-speed production lines. The module’s deterministic signal routing ensures that weld timing and path accuracy meet the micron-level tolerances required for body-in-white assembly.

In electronics and semiconductor manufacturing, the DSQC346G supports high-speed pick-and-place and precision dispensing applications where axis synchronization and repeatability are critical. The module’s low-latency servo interface enables the sub-millisecond response times required for vision-guided robotic operations.

In food and beverage packaging, IRC5 robots with DSQC346G interfaces handle palletizing, case packing, and secondary packaging at rates that demand continuous, fault-free servo coordination. The module’s robust design supports the washdown-adjacent environments common in food processing facilities.

In metal fabrication and heavy industry, the DSQC346G enables IRC5 robots to perform plasma cutting, laser cutting, and heavy material handling with the force control and path accuracy that these processes require. Its compatibility with the IRC5 force control software option makes it suitable for grinding, deburring, and polishing applications.

In process industries including petrochemical, pharmaceutical, and water treatment, IRC5 robots with DSQC346G interfaces are deployed for hazardous material handling, inspection, and maintenance tasks in environments where human access is restricted. The module’s reliability and 12-Month Warranty support the long maintenance intervals required in these sectors.

Architecture Engineering FAQ

Q1: Is the DSQC346G compatible with all IRC5 controller variants, and can it be used in a dual cabinet configuration?
The DSQC346G is designed for use within the ABB IRC5 controller family, including the standard single cabinet, dual cabinet, and compact IRC5 variants. In dual cabinet configurations, the module is installed in the drive cabinet and interfaces with the drive unit backplane in the same manner as in single cabinet systems. Compatibility should always be verified against the specific IRC5 system version and RobotWare release in use. Our technical team can assist with configuration verification prior to installation.

Q2: What is the recommended procedure for replacing a DSQC346G in a live production environment, and how does the 12-Month Warranty apply?
Replacement of the DSQC346G should be performed with the IRC5 controller in a safe, powered-down state following ABB’s standard lockout/tagout procedures. After physical installation, the system requires a cold start and axis calibration verification to confirm correct encoder feedback routing. The 12-Month Warranty covers functional defects in the module itself and applies from the date of shipment. Warranty claims are processed through our technical support team, and replacement units are dispatched to minimize production downtime.

Q3: How does the DSQC346G support long-term maintenance planning and spare parts inventory strategy for IRC5 installations?
For facilities operating multiple IRC5 robots, maintaining a spare DSQC346G in inventory is a recognized best practice for minimizing unplanned downtime risk. The module’s standardized interface across IRC5 variants means a single spare can serve multiple robot installations within the same controller generation. Our stock availability and 12-Month Warranty on all supplied units support a predictable maintenance budget and reduce the risk of extended lead times for critical spare parts. Contextual Integration with the broader IRC5 spare parts ecosystem — including DSQC639, DSQC609, and DSQC662 — allows for a consolidated procurement strategy.
