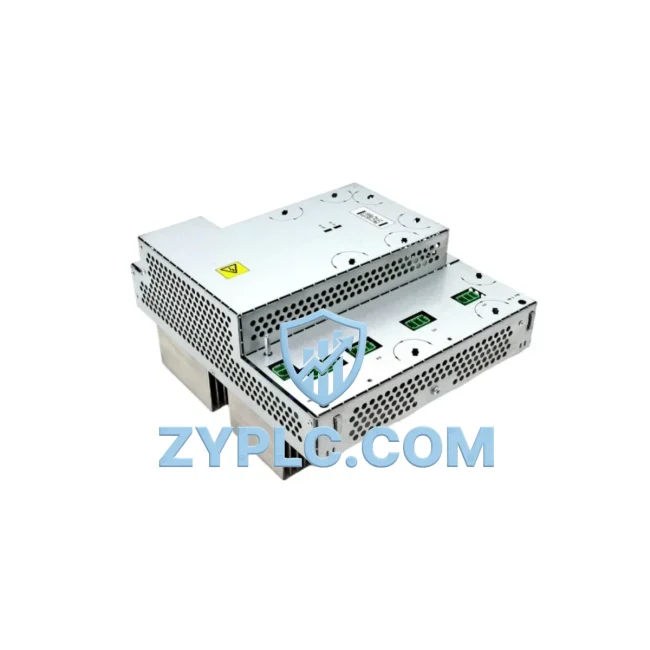

ABB DSQC406 3HAC035301-001/03 System-Ready Servo Drive for IRC5 Architecture

ABB DSQC406 3HAC035301-001/03 System-Ready Servo Drive for IRC5 Architecture

In a modern robotic automation system, every layer of the control architecture must operate in precise synchrony. The ABB DSQC406 (3HAC035301-001/03) Servo Drive Unit is engineered to fulfill a critical role within the IRC5 robot controller platform — bridging the gap between high-level motion commands issued by the main computer and the physical execution of axis movement at the motor level. This is not simply a power amplifier; it is a tightly integrated component of ABB’s layered control philosophy, designed to maintain system consistency, enable modular expansion, and support long-term maintainability across demanding industrial environments.

Architecture Specification Table

Coordinated Control System Design

The DSQC406 does not operate in isolation. Within the IRC5 controller cabinet, it works in close coordination with the DSQC400 Drive Unit power supply module, which conditions and distributes DC bus voltage to each axis drive. The main computer board — typically the DSQC639 or DSQC652 computer unit — issues real-time motion trajectories via the internal drive communication bus, and the DSQC406 translates these commands into precise current waveforms delivered to the servo motor.

On the I/O layer, the DSQC652 I/O module or DSQC651 DeviceNet I/O unit handles digital and analog signal exchange with external sensors, end-of-arm tooling, and safety interlocks. These signals feed back into the motion controller, allowing the DSQC406 to adjust torque and velocity in real time based on process feedback. The DSQC406 also interfaces with the resolver or encoder feedback from ABB’s standard servo motors — such as those used in the IRB 6700 and IRB 4600 robot families — ensuring closed-loop position accuracy at every axis.

For system redundancy and fault tolerance, the IRC5 Multi-Cabinet Controller configuration allows multiple DSQC406 units to be distributed across drive cabinets, each managing a subset of robot axes. This architecture supports up to six axes of coordinated motion, with the DSQC400 power distribution module ensuring balanced load sharing. The DSQC406 communicates fault status and thermal conditions back to the main computer, enabling predictive maintenance alerts through ABB’s RobotStudio or connected SCADA systems.

At the human-machine interface layer, operators interact with the IRC5 FlexPendant — ABB’s dedicated teach pendant — which displays real-time axis status, drive fault codes, and motor current readings sourced directly from the DSQC406 telemetry. This tight integration between the drive unit and the HMI layer eliminates data silos and gives maintenance engineers immediate visibility into drive health without requiring external diagnostic tools.

The DSQC406 is also compatible with ABB’s SafeMove2 safety module, which monitors axis speed, position, and standstill conditions. When SafeMove2 detects a boundary violation, it sends a safe stop signal through the safety backplane, and the DSQC406 executes a controlled deceleration — protecting both the robot and surrounding personnel without requiring a full system power-down.

Application in Layered Automation Systems

The DSQC406 servo drive finds application across a wide range of industrial sectors where ABB IRC5-based robots are deployed. In automotive manufacturing, it drives the precision welding and assembly robots that operate on high-throughput body-in-white lines, where axis repeatability of ±0.05 mm is non-negotiable. In electronics manufacturing, the same drive unit supports pick-and-place robots handling delicate PCB components, where smooth velocity profiles and minimal vibration are essential to product integrity.

In the metals and heavy industry sector, DSQC406-equipped robots perform material handling, forging assistance, and surface treatment tasks in environments with high ambient temperatures and significant electromagnetic interference. The IRC5 cabinet’s shielded architecture and the DSQC406’s robust EMC design ensure reliable operation even in these challenging conditions. Similarly, in food and beverage packaging lines, the drive unit supports hygienic-design robots operating in washdown environments, where consistent motion performance directly impacts line throughput and OEE.

For process industries such as petrochemical and pharmaceutical manufacturing, the DSQC406 enables precise dispensing, inspection, and material transfer operations. In these environments, the ability to perform remote diagnostics via the IRC5’s Ethernet service port — without interrupting production — is a key operational advantage. Maintenance teams can retrieve drive logs, check motor current signatures, and validate axis calibration data remotely, reducing unplanned downtime and extending the service interval of the overall robot system.

Architecture Engineering FAQ

Q1: Is the DSQC406 (3HAC035301-001/03) compatible with all IRC5 controller variants?
The DSQC406 is designed for the ABB IRC5 platform, including the Single Cabinet Controller (M2004 and later) and the Multi-Cabinet Controller configuration. It is not directly compatible with the older S4C+ or S4 controller generations. Before installation, verify the IRC5 firmware version and drive bus configuration using ABB RobotStudio or the FlexPendant system information menu to ensure full compatibility with your specific robot model and software revision.

Q2: How does the DSQC406 integrate into an existing IRC5 system without disrupting production?
Replacement of a DSQC406 unit follows ABB’s standard hot-swap procedure for IRC5 drive modules. The process involves powering down the controller to a safe state, removing the faulty drive unit from the cabinet backplane, installing the replacement DSQC406, and performing an axis calibration sequence via the FlexPendant. In most cases, the IRC5 system retains axis configuration data in the main computer’s non-volatile memory, so recalibration time is minimized. Our units are pre-tested and shipped with a full functional verification report to support rapid commissioning.

Q3: What does the 12-Month Warranty cover, and what support is available during the warranty period?
Every DSQC406 unit supplied by ZYPLC is covered by a 12-Month Warranty from the date of shipment. This warranty covers manufacturing defects, component failures under normal operating conditions, and functional non-conformance identified during installation. During the warranty period, ZYPLC provides technical support for installation guidance, fault diagnosis, and replacement coordination. Units are pre-tested prior to shipment using IRC5-compatible test rigs to validate drive output, feedback signal integrity, and communication bus response — ensuring that every unit arrives ready for immediate system integration.
