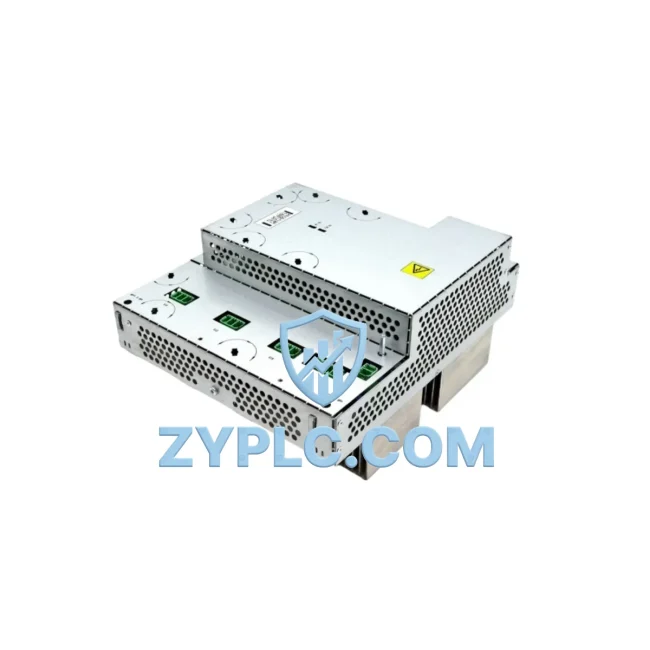

ABB DSQC406 3HAC035301-001 System-Ready Drive Unit for IRC5 Architecture

ABB DSQC406 3HAC035301-001 System-Ready Drive Unit for IRC5 Control Architecture

The ABB DSQC406 (3HAC035301-001) is a purpose-engineered drive unit designed to operate as a core power and motion control component within the ABB IRC5 robot controller architecture. Rather than functioning as a standalone module, the DSQC406 is conceived as an integral node in a layered automation system — coordinating signal flow between the control layer, I/O layer, power distribution layer, and the mechanical execution layer of a multi-axis robotic cell. Its role in the system is to receive motion commands from the main computer unit, condition and amplify drive signals, and deliver precisely regulated power to the servo motors of each robot axis. This contextual integration capability makes the DSQC406 a critical enabler of system-wide consistency, especially in high-cycle manufacturing environments where motion repeatability and drive stability directly impact product quality and throughput.

In modern industrial automation deployments — whether in automotive body-in-white welding lines, electronics assembly cells, palletizing stations, or arc welding systems — the drive architecture must support both deterministic real-time control and long-term thermal and electrical stability. The DSQC406 is engineered to meet these demands within the IRC5 single-cabinet and dual-cabinet controller configurations, supporting axis group management and synchronized multi-robot operation when paired with the appropriate system software and hardware stack.

Architecture Specification Table

Coordinated Control System Design

The DSQC406 does not operate in isolation. Its performance and reliability are directly tied to the coherence of the surrounding IRC5 system architecture. At the control layer, the ABB DSQC668 main computer unit (or its predecessor DSQC639) issues real-time motion trajectories via the internal system bus. These commands are received and executed by the DSQC406 drive unit, which translates digital motion references into regulated servo power outputs for each robot joint.

Power integrity is maintained by the ABB DSQC662 power supply unit, which provides stable DC bus voltage to the drive section. In redundant or high-availability configurations, a secondary power path or UPS module may be integrated to ensure uninterrupted drive operation during grid fluctuations. The ABB DSQC400 and DSQC401 drive units serve as complementary axis drive modules within the same IRC5 cabinet, and understanding their interoperability with the DSQC406 is essential for multi-robot or extended-axis configurations.

At the I/O layer, the ABB DSQC652 digital I/O board manages discrete signal exchange between the robot controller and external field devices — safety gates, end-of-arm tooling, conveyor interlocks, and vision system triggers. The DSQC406 drive unit responds to enable/disable signals routed through this I/O layer, ensuring that motion is only initiated when all safety and process conditions are confirmed. For analog process signals, the ABB DSQC646 analog I/O module provides the necessary signal conditioning interface.

Network and communication stability is managed at the fieldbus layer. The ABB DSQC688 or DSQC679 Ethernet/IP and DeviceNet gateway modules bridge the IRC5 controller to plant-level SCADA systems, MES platforms, and PLC networks. This connectivity allows the DSQC406-driven robot cell to receive production orders, report cycle data, and participate in coordinated multi-machine workflows without manual intervention.

At the human-machine interface layer, the ABB FlexPendant (IRC5 variant) provides operators with direct access to motion programs, drive diagnostics, and system status. Engineers can monitor drive current, axis load, and thermal status in real time, enabling proactive maintenance scheduling before drive faults escalate into unplanned downtime. The teach pendant communicates with the main computer over a dedicated USB/Ethernet link, keeping the HMI layer cleanly separated from the drive control path.

Terminal and wiring infrastructure — including ABB IRC5 backplane connectors and cabinet-internal cable harnesses — must be inspected and verified during DSQC406 replacement procedures. Proper torque on connector housings and correct cable routing through the cabinet’s EMC shielding zones are prerequisites for stable drive operation and long-term reliability.

Application in Layered Automation Systems

Automotive Manufacturing: In body-in-white welding lines, the DSQC406 supports high-speed, high-precision spot welding robots operating in synchronized multi-robot cells. Drive consistency across all axes is critical for weld quality and cycle time repeatability. The IRC5 architecture with DSQC406 drive units enables coordinated motion across 6+ axes with sub-millisecond path accuracy.

Electronics Assembly: In PCB handling and component placement systems, the DSQC406 provides the fine motion control required for delicate pick-and-place operations. Low-speed torque stability and smooth velocity profiles — both dependent on drive unit quality — are essential for preventing component damage and maintaining placement accuracy.

Power Generation and Utilities: In power plant maintenance robotics and cable management automation, the DSQC406 supports heavy-payload robots operating in thermally challenging environments. The IRC5 cabinet’s thermal management system, combined with the drive unit’s internal protection circuits, ensures reliable operation across extended duty cycles.

Petrochemical and Process Industries: In hazardous area automation — where robots perform inspection, valve actuation, or material handling in explosive atmospheres — the IRC5 system’s safety architecture, anchored by properly functioning drive units like the DSQC406, provides the deterministic motion control required for safe and repeatable operation.

Palletizing and Packaging Lines: High-throughput palletizing systems demand continuous drive operation across multi-shift production schedules. The DSQC406’s role in maintaining consistent axis torque and velocity under varying payload conditions directly impacts stack quality, line efficiency, and end-of-line throughput. Preventive replacement of aging drive units — supported by ZYPLC’s 12-Month Warranty and in-stock availability — minimizes the risk of unplanned line stoppages.

Metal Fabrication and Welding: Arc welding and laser cutting robots require precise torch path control, which depends on the drive unit’s ability to maintain smooth, jerk-free motion profiles. The DSQC406, when properly integrated into the IRC5 architecture, supports the motion quality standards required for consistent weld bead geometry and cut edge quality.

Architecture Engineering FAQ

Q1: Is the ABB DSQC406 (3HAC035301-001) compatible with all IRC5 controller variants?
The DSQC406 is designed for use within the ABB IRC5 controller family, including single-cabinet and dual-cabinet configurations. Compatibility depends on the specific IRC5 hardware revision and the RobotWare software version installed. Before installation, verify the controller’s hardware generation and confirm that the DSQC406 part number matches the drive slot specification in the IRC5 system documentation. ZYPLC’s technical team can assist with compatibility verification prior to shipment.

Q2: What is the recommended procedure for replacing a DSQC406 drive unit in a live production environment?
Drive unit replacement in an IRC5 cabinet should follow ABB’s standard maintenance procedure: power down the controller via the main disconnect, discharge the DC bus capacitors (minimum 5-minute wait after power-off), document all cable connections and connector positions, remove the faulty unit, install the replacement DSQC406, and restore all connections per the original wiring diagram. After power-up, perform a full axis calibration and motion test before returning the robot to production. All ZYPLC-supplied DSQC406 units are tested and verified prior to shipment, reducing commissioning time.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term spare parts availability?
ZYPLC’s 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions for all supplied DSQC406 units. Warranty claims are processed through direct contact with our technical team at [email protected] or +86 19859288691. For long-term maintenance planning, ZYPLC maintains stock of critical IRC5 drive components — including DSQC406 and related modules — to support customers with multi-year spare parts programs. We recommend establishing a consignment stock arrangement for high-utilization robot lines to eliminate lead-time risk during unplanned drive failures.
