ABB DSQC500 3HAC3616-1 Industrial Network Interface for IRC5 Systems

ABB DSQC500 3HAC3616-1 Industrial Network Interface for IRC5 Systems: Enabling Smart Factory Data Links

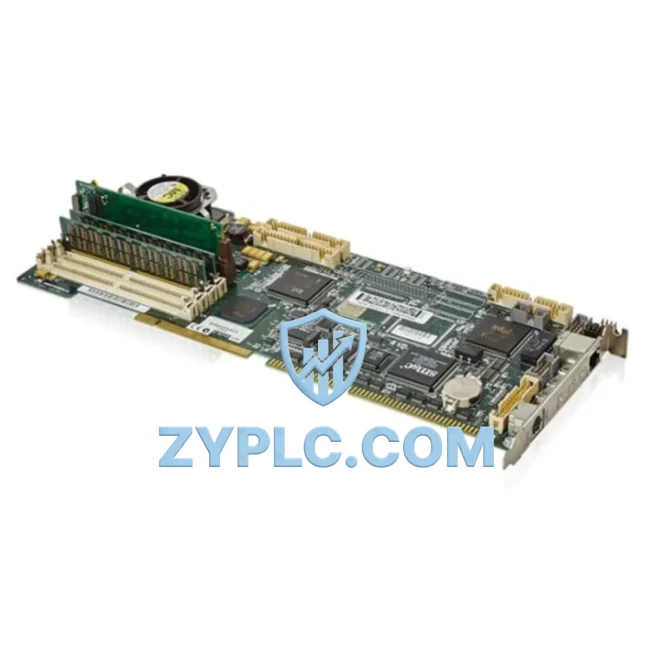

The ABB DSQC500 3HAC3616-1 Monitor Main Computer Board is a mission-critical industrial network interface module engineered for ABB IRC5 robot controller platforms. As the central communication and computation hub within the IRC5 cabinet, the DSQC500 3HAC3616-1 orchestrates real-time data exchange between the robot’s motion control system, field devices, and upper-level supervisory networks. In modern smart factory environments where production transparency, remote diagnostics, and zero-downtime operation are non-negotiable, this board serves as the backbone of the entire automation data chain — from signal acquisition at the end-effector level all the way to SCADA dashboards and MES reporting layers.

Designed and manufactured by ABB in Sweden, the DSQC500 3HAC3616-1 integrates seamlessly into the IRC5 Single Cabinet Controller and IRC5 Compact Controller architectures. Its robust design supports continuous industrial operation across automotive assembly, electronics manufacturing, food processing, and heavy-industry welding applications where communication reliability directly impacts production yield and OEE metrics.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory cell, the ABB DSQC500 3HAC3616-1 sits at the center of a layered communication architecture. At the field level, the IRC5 controller receives discrete I/O signals from proximity sensors, vision system triggers, and safety light curtains through the ABB DSQC652 I/O board, which feeds real-time status data directly to the DSQC500 main computer for processing. Simultaneously, the ABB DSQC378B DeviceNet gateway module bridges the robot’s internal bus to the plant-wide DeviceNet network, enabling the PLC — typically a Siemens S7-1500 or Allen-Bradley ControlLogix — to read robot state, program number, and fault codes without interrupting the motion cycle.

For PROFIBUS-DP environments, the ABB DSQC510 fieldbus adapter connects to the DSQC500 backplane, allowing the IRC5 controller to participate as a PROFIBUS slave device under a Siemens ET 200SP remote I/O master or a Siemens S7-300 PLC rack. This configuration is common in automotive body-in-white lines where dozens of robot cells must synchronize with conveyor PLCs and transfer press controllers over a single PROFIBUS segment.

At the supervisory level, the DSQC500 3HAC3616-1 supports Ethernet connectivity through the IRC5’s integrated WAN port, enabling direct communication with Wonderware InTouch or Ignition SCADA platforms via OPC-UA or ABB’s proprietary Robot Web Services (RWS) API. This allows SCADA operators to monitor cycle times, joint temperatures, payload data, and alarm histories in real time without requiring physical access to the robot cabinet. When integrated with an ABB FlexPendant TP (teach pendant), operators can also acknowledge alarms and trigger program changes remotely through the SCADA HMI interface.

For edge computing deployments, the DSQC500’s Ethernet port can connect to an industrial edge gateway — such as a Moxa UC-8112 or Advantech UNO-2372G — which aggregates data from multiple IRC5 controllers and forwards structured JSON payloads to cloud MES or ERP systems. This architecture eliminates data silos between the robot layer and the enterprise layer, enabling production planners to access real-time OEE, MTBF, and throughput data from any browser-based dashboard.

Drive-level integration is equally seamless: the IRC5 controller communicates with ABB ACS880 servo drives and ABB MU motor units through the internal drive bus, with the DSQC500 coordinating torque commands, speed references, and fault feedback across all robot axes simultaneously. This tight integration ensures sub-millisecond synchronization between the motion planner and the physical actuators — a requirement for high-speed pick-and-place and precision welding applications.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy robot installations is protocol fragmentation: older IRC5 cells may run DeviceNet while newer PLC infrastructure has migrated to PROFINET or Ethernet/IP. The ABB DSQC500 3HAC3616-1, combined with the appropriate DSQC fieldbus expansion module, acts as a protocol gateway that bridges these incompatible networks without requiring a full controller replacement. This dramatically reduces integration costs and project timelines for brownfield automation upgrades.

Data isolation between the robot layer and the SCADA/MES layer is another common pain point. Without a properly functioning main computer board, robot status data — including fault codes, cycle counts, and program identifiers — remains trapped inside the IRC5 cabinet and invisible to plant-level monitoring systems. The DSQC500 3HAC3616-1 resolves this by maintaining a live data mirror accessible via Ethernet, enabling continuous uplink to SCADA platforms and eliminating the need for manual data collection rounds on the shop floor.

Remote diagnostics capability is a key value driver for maintenance teams managing multi-robot facilities. With the DSQC500 operational, ABB’s RobotStudio software can connect to the IRC5 controller over the plant network to perform virtual commissioning, backup/restore operations, and real-time fault analysis — all without dispatching a technician to the robot cell. This capability is especially valuable for facilities with robots installed in hazardous or hard-to-access locations such as paint booths, press rooms, or cleanrooms.

Production line transparency is further enhanced through the DSQC500’s support for ABB’s Condition Monitoring and Diagnostics (CMD) package, which tracks joint wear, lubrication intervals, and brake health in real time. This data feeds directly into predictive maintenance workflows, allowing maintenance planners to schedule interventions during planned downtime windows rather than reacting to unexpected failures — a critical capability for achieving the 85%+ OEE targets demanded by Tier 1 automotive suppliers.

System scalability is also a core strength: as production volumes grow and new robot cells are added to the line, each IRC5 controller with a functioning DSQC500 3HAC3616-1 can be onboarded to the plant network within hours, with SCADA templates and PLC function blocks reused across cells to minimize engineering effort.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB DSQC500 3HAC3616-1 support for SCADA and PLC integration?
The DSQC500 3HAC3616-1 supports Ethernet-based communication natively through the IRC5 controller’s WAN port, enabling OPC-UA, Robot Web Services (RWS), and FTP-based data exchange with SCADA platforms such as Ignition, Wonderware, and Siemens WinCC. For fieldbus integration, the DSQC500 works in conjunction with DSQC expansion modules to support DeviceNet, PROFIBUS-DP, Ethernet/IP, and Interbus-S protocols, making it compatible with the majority of PLC and remote I/O architectures found in modern industrial facilities.

Q2: How does the DSQC500 3HAC3616-1 ensure network stability in high-cycle production environments?
The DSQC500 3HAC3616-1 is designed for 24/7 continuous operation in industrial environments with high EMI, vibration, and temperature variation. Its internal watchdog circuits and redundant communication pathways ensure that transient network faults do not interrupt the robot’s motion execution. In the event of a network timeout, the IRC5 controller maintains its last valid state and generates a structured alarm event that is logged locally and transmitted to the SCADA system once connectivity is restored — ensuring no production data is lost during brief network interruptions.

Q3: Can the ABB DSQC500 3HAC3616-1 be expanded to support additional communication protocols as factory requirements evolve?
Yes. The IRC5 controller’s modular architecture allows additional DSQC fieldbus adapter boards to be installed alongside the DSQC500 main computer board, enabling protocol expansion without replacing the main computer. This means a facility that currently uses DeviceNet can add PROFINET or Ethernet/IP capability by installing the appropriate DSQC adapter module, protecting the existing investment in the IRC5 platform while accommodating evolving network standards.

Q4: What pre-shipment testing and warranty coverage is provided for the ABB DSQC500 3HAC3616-1?
Every ABB DSQC500 3HAC3616-1 unit supplied by ZYPLC undergoes full functional verification prior to shipment, including power-on testing, communication interface validation, and visual inspection for component integrity. All units are covered by a 12-month warranty against manufacturing defects and functional failures. Global shipping is available via DHL and FedEx with full tracking, and our technical team provides pre-sales compatibility consultation and post-sales integration support to ensure successful deployment in your IRC5 robot system.
