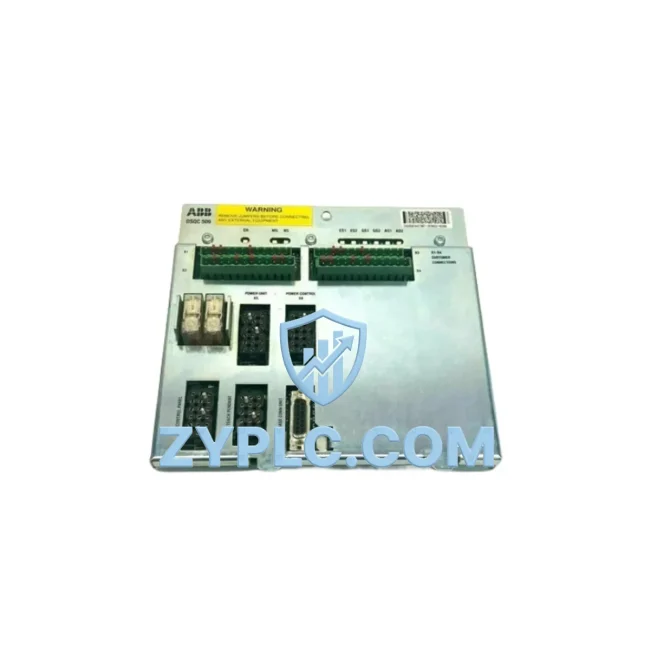

ABB DSQC509 3HAC5687-1/05 System-Ready Base Panel Connection Unit for S4C+ Architecture

ABB DSQC509 3HAC5687-1/05 System-Ready Base Panel Connection Unit for S4C+ Control Architecture

The ABB DSQC509 3HAC5687-1/05 is a critical base panel connection unit engineered for seamless integration within the ABB S4C+ robot controller architecture. Rather than functioning as a standalone component, the DSQC509 occupies a foundational role in the control system hierarchy — bridging the main computer board, I/O modules, drive units, and operator panel into a unified, coherent signal pathway. In multi-axis robotic cells and complex automation lines, the integrity of this connection layer directly determines system uptime, diagnostic accuracy, and long-term maintainability.

Within the S4C+ platform, the DSQC509 serves as the physical and electrical backbone of the base panel assembly. It provides the structured interconnection points through which the DSQC500 main computer, DSQC532 axis computer, and DSQC508 power distribution board communicate and coordinate. Signal routing through the base panel ensures that encoder feedback, safety interlock signals, and drive command data travel through a controlled, noise-isolated path — a requirement in high-cycle manufacturing environments such as automotive body welding, press tending, and material handling lines.

System architects specifying replacement or spare components for S4C+ installations will find the DSQC509 indispensable when addressing base panel degradation caused by thermal cycling, connector wear, or physical damage during maintenance. Its direct compatibility with the S4C+ cabinet form factor eliminates the need for adapter harnesses or custom wiring modifications, preserving the original signal integrity and grounding topology of the controller.

In layered automation architectures, the base panel connection unit also plays a role in supporting the DSQC611 fieldbus adapter and DSQC679 teach pendant interface, ensuring that communication between the operator interface layer and the motion control layer remains stable under continuous production loads. When paired with the DSQC563 I/O board and DSQC545 power supply unit, the DSQC509 contributes to a fully redundant signal distribution scheme that supports predictive maintenance strategies and minimizes unplanned downtime.

For facilities managing mixed fleets of ABB IRB 6400, IRB 4400, or IRB 2400 robots on the S4C+ platform, maintaining a stocked DSQC509 as a critical spare reduces mean time to repair (MTTR) significantly. The component’s role in the base panel means that a failure here can cascade across the entire controller, making proactive inventory management essential for high-availability production environments.

ZYPLC supplies the ABB DSQC509 3HAC5687-1/05 with a 12-Month Warranty, full functional testing prior to shipment, and Contextual Integration support to assist engineers in verifying compatibility within their specific S4C+ system configuration. Our technical team can provide cross-reference documentation, installation guidance, and system architecture consultation to ensure the component is deployed correctly within your control cabinet.

Architecture Specification Table

Coordinated Control System Design

The DSQC509 does not operate in isolation — its value is realized through its coordination with the full suite of S4C+ controller components. In a typical S4C+ system architecture, the base panel connection unit interfaces directly with the DSQC500 main computer board, which handles program execution, path planning, and system supervision. The DSQC532 axis computer relies on the base panel’s signal routing to deliver interpolated motion commands to the drive units with microsecond-level timing precision.

Power distribution within the cabinet is managed by the DSQC508 power distribution board and the DSQC545 power supply unit, both of which connect through the base panel assembly. The DSQC509 ensures that power rails and logic signals are correctly segregated, preventing cross-interference that could trigger nuisance faults or, in worst cases, damage sensitive logic boards.

On the I/O layer, the DSQC563 digital I/O board and DSQC652 analog I/O board feed process signals — limit switches, proximity sensors, pressure transducers, and valve commands — through the base panel into the main computer’s I/O processing pipeline. The DSQC509’s connector integrity is therefore directly linked to the reliability of every field device in the workcell.

For systems requiring fieldbus connectivity to PLCs or SCADA platforms, the DSQC611 DeviceNet/Profibus adapter mounts within the S4C+ cabinet and communicates through the base panel bus. Maintaining a healthy DSQC509 is a prerequisite for stable fieldbus communication, particularly in high-polling-rate applications such as press line synchronization or conveyor tracking.

The operator interface layer, represented by the DSQC679 FlexPendant teach pendant, also depends on the base panel connection unit for its communication path to the main computer. Any degradation in the DSQC509’s connector contacts can manifest as intermittent teach pendant disconnections — a safety-critical fault that halts production and requires immediate investigation.

Application in Layered Automation Systems

The ABB DSQC509 3HAC5687-1/05 finds application across a broad range of industrial sectors where the S4C+ platform remains in active service. In automotive manufacturing, S4C+ robots continue to operate on body-in-white welding lines, sealer application stations, and assembly transfer systems. The base panel connection unit is a frequent maintenance item in these environments due to the high thermal and vibration loads imposed by continuous three-shift operation.

In power generation and electrical equipment manufacturing, S4C+ robots are used for transformer core assembly, busbar handling, and switchgear component placement. The precision motion control enabled by a fully functional base panel is essential for maintaining positional repeatability in these applications.

The petrochemical and process industries deploy S4C+ robots in hazardous area handling, drum filling, and valve actuation applications. In these environments, controller reliability is paramount, and maintaining a spare DSQC509 in the plant’s critical spare parts inventory is standard practice for ISO 55001-aligned asset management programs.

Water treatment and utilities facilities use ABB robots for pipe handling, valve assembly, and pump maintenance automation. The S4C+ platform’s proven reliability in these environments makes the DSQC509 a long-term spare requirement for facilities with extended equipment lifecycles.

In metals and mining, S4C+ robots handle ladle pouring, billet transfer, and grinding operations. The harsh environment demands that every controller component, including the base panel connection unit, meets the highest standards of electrical integrity and mechanical robustness.

Architecture Engineering FAQ

Q1: Is the DSQC509 3HAC5687-1/05 compatible with all S4C+ controller variants?
The DSQC509 3HAC5687-1/05 is designed for the ABB S4C+ controller platform and is compatible with S4C+ cabinets used with IRB 2400, IRB 4400, IRB 6400, and related robot models. It is not interchangeable with S4 (non-plus) or IRC5 platform components. Always verify the controller generation and base panel revision before ordering. ZYPLC’s technical team can assist with compatibility verification based on your controller serial number and software version.

Q2: What are the signs of DSQC509 failure, and how does it affect the overall control architecture?
Common failure indicators include intermittent axis faults, teach pendant communication errors, unexplained I/O signal dropouts, and controller startup failures that cannot be attributed to software or drive-level faults. Because the DSQC509 is the central connection hub of the base panel, its failure can produce symptoms across multiple system layers simultaneously, making diagnosis challenging without a systematic approach. Replacing the DSQC509 with a verified unit — such as those supplied by ZYPLC with pre-shipment functional testing — is often the most efficient path to restoring system integrity.

Q3: What does the 12-Month Warranty cover, and how does Contextual Integration support the installation process?
ZYPLC’s 12-Month Warranty covers the DSQC509 against defects in materials and workmanship under normal operating conditions within the S4C+ controller environment. The warranty period begins from the date of shipment. Contextual Integration support includes pre-shipment functional verification, compatibility documentation, and post-installation technical consultation to ensure the component is correctly seated, connected, and recognized by the S4C+ system. Our engineering team is available to assist with installation procedures, fault code interpretation, and system recommissioning following base panel replacement.
