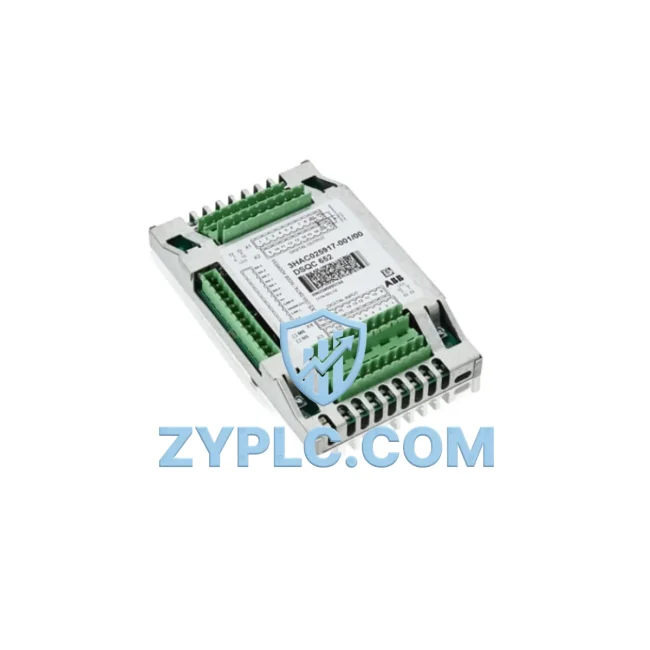

ABB DSQC652 3HAC025917-001 Digital I/O Module for IRC5

ABB DSQC652 3HAC025917-001 Digital I/O Module for IRC5: Compatibility and Replacement Notes

The ABB DSQC652 (3HAC025917-001) is a dedicated digital I/O module engineered for seamless integration within the ABB IRC5 robot controller architecture. Rather than functioning as a standalone peripheral, the DSQC652 occupies a critical position in the layered automation hierarchy — bridging the control layer, I/O layer, and execution layer to deliver deterministic signal management, system-wide consistency, and long-term maintainability across demanding industrial environments.

In a fully realized IRC5-based control system, the DSQC652 operates in close coordination with the IRC5 main computer unit (DSQC1000 or DSQC562), the axis computer (DSQC668), and the drive system. Digital input and output signals processed by the DSQC652 are routed through the internal DeviceNet or EtherNet/IP communication backbone, ensuring that field-level signals from sensors, actuators, and safety interlocks are accurately reflected in the controller’s execution cycle without latency or data loss. This tight integration is what makes the DSQC652 indispensable in high-throughput manufacturing and process automation architectures.

Product Specification Table

System Compatibility Notes

The DSQC652 achieves its full potential when deployed as part of a coordinated IRC5 system architecture. At the control layer, the IRC5 main computer (DSQC1000) executes the RAPID program and manages all I/O signal states. The DSQC652 receives these commands via the internal DeviceNet bus and translates them into physical 24 VDC switching signals directed at field devices — conveyor drives, pneumatic valves, gripper solenoids, and safety light curtains.

At the power layer, the DSQC609 power distribution unit and DSQC604 I/O power supply work in tandem to ensure stable 24 VDC delivery to the DSQC652 and connected field devices. Voltage fluctuations at this layer directly affect I/O signal integrity, making proper power architecture a prerequisite for reliable DSQC652 operation.

For systems requiring expanded I/O capacity, the DSQC652 can be deployed alongside additional DSQC651 (analog I/O) and DSQC653 (digital I/O with relay outputs) modules on the same DeviceNet segment, allowing engineers to scale the I/O architecture without modifying the controller’s core software or hardware configuration. This modular expansion capability is a defining feature of the IRC5 platform and directly supports the DSQC652’s role in flexible, scalable automation cells.

At the network layer, the DSQC688 DeviceNet gateway or DSQC679 fieldbus adapter enables the IRC5 system — including all connected DSQC652 modules — to communicate with upstream SCADA systems, MES platforms, or distributed control systems (DCS) via EtherNet/IP or PROFIBUS. This system integration ensures that I/O states are visible and controllable from the plant-wide supervisory layer, supporting both real-time monitoring and historical data logging.

The FlexPendant (IRC5 teach pendant) and RobotStudio engineering software provide the human-machine interface layer, allowing engineers to map, monitor, and simulate DSQC652 I/O signals during commissioning and ongoing maintenance. Signal mapping errors — a common source of commissioning delays — can be identified and corrected in simulation before physical deployment, significantly reducing startup time.

In redundant architecture designs, dual IRC5 controllers with mirrored DSQC652 I/O configurations provide hot-standby capability for critical production lines. Should the primary controller fail, the standby system assumes control with no loss of I/O state, ensuring continuous production without manual intervention.

Industrial Application Notes

Automotive Manufacturing: In body-in-white welding lines and assembly cells, the DSQC652 manages discrete I/O signals for weld gun activation, part presence detection, fixture clamping, and conveyor indexing. Its deterministic signal response supports the tight cycle times required in high-volume automotive production.

Electronics and Semiconductor Assembly: Precision pick-and-place systems rely on the DSQC652 to coordinate vacuum gripper control, component presence sensing, and reject gate actuation. The module’s 24 VDC digital outputs provide the clean switching signals required by sensitive pneumatic and electromechanical actuators in cleanroom environments.

Food and Beverage Packaging: In palletizing and case-packing lines, the DSQC652 interfaces with photoelectric sensors, servo drive enable signals, and safety door interlocks. Its integration with the IRC5 safety controller (SafeMove) ensures that I/O-triggered safety functions — such as speed reduction and protective stop — are executed with the required response times.

Metal Fabrication and Press Tending: Press tending robots equipped with IRC5 controllers use the DSQC652 to manage press trigger signals, part ejection confirmation, and die protection inputs. The module’s robust 24 VDC I/O architecture withstands the electrical noise common in press shop environments.

Pharmaceutical and Chemical Process Control: In regulated manufacturing environments, the DSQC652 supports validation-ready I/O architectures where signal traceability and audit logging are mandatory. Integration with plant DCS via the DSQC688 gateway ensures that all I/O events are captured in the plant historian for compliance reporting.

Product Compatibility FAQ

Q1: Is the DSQC652 (3HAC025917-001) compatible with all IRC5 controller variants, including the IRC5 Compact and IRC5 Panel Mounted Controller?
A: The DSQC652 is designed for the standard IRC5 controller cabinet and communicates via the internal DeviceNet backplane. Compatibility with IRC5 Compact and Panel Mounted variants depends on the specific cabinet configuration and available DeviceNet node addresses. Engineers should verify the DeviceNet node allocation in RobotStudio before deploying additional DSQC652 modules in compact or panel-mounted installations. ZYPLC’s technical team can assist with compatibility verification prior to order.

Q2: Can the DSQC652 be used in a redundant IRC5 architecture, and what configuration is required?
A: Yes. In redundant IRC5 configurations, a mirrored DSQC652 module is installed in the standby controller cabinet with identical I/O mapping. The IRC5 redundancy software (RobotWare Redundancy option) manages state synchronization between the primary and standby controllers, including I/O states. Physical wiring must be duplicated to both DSQC652 modules, and DeviceNet node addresses must be assigned consistently across both cabinets. ZYPLC supplies matched pairs of DSQC652 modules for redundant architecture projects.

Q3: What does the 12-Month Warranty cover for the DSQC652, and what is the replacement process?
A: ZYPLC’s 12-Month Warranty covers manufacturing defects, component failures, and functional non-conformance under normal operating conditions. If a DSQC652 module fails within the warranty period, ZYPLC will provide a replacement unit after fault verification. The replacement process begins with a technical assessment — customers submit a fault description and, where possible, diagnostic data from the IRC5 event log. Replacement units are dispatched with priority shipping to minimize production downtime. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification.
