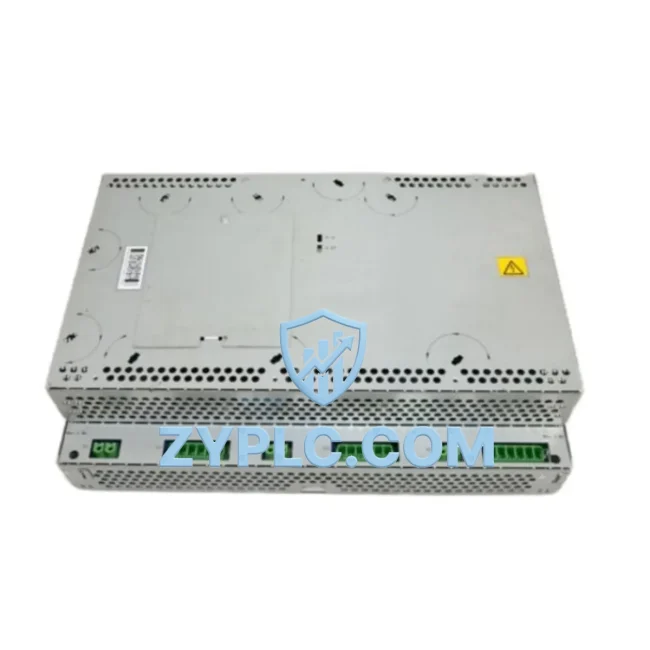

ABB DSQC663 3HAC029818-001 Energy-Saving Drive Unit IRC5

ABB DSQC663 3HAC029818-001 Energy-Saving Drive Unit for Optimized IRC5 Automation

The ABB DSQC663 (part number 3HAC029818-001) is a high-performance axis drive unit engineered for the ABB IRC5 robot controller platform. Designed to deliver precise motor control with minimized energy consumption, this drive unit plays a central role in reducing idle-state power draw, optimizing motion cycle timing, and extending the operational lifespan of robotic cells on the production floor. Whether deployed in automotive body welding, electronics assembly, or palletizing lines, the DSQC663 enables factories to achieve measurable reductions in per-cycle energy cost while maintaining the motion accuracy demanded by modern industrial automation.

Unlike generic replacement drives, the DSQC663 is purpose-built for ABB’s IRC5 architecture, ensuring seamless integration with the IRC5 single cabinet controller and IRC5 compact controller variants. Its firmware-level compatibility with ABB’s RobotWare operating system means that axis calibration, torque profiling, and regenerative braking parameters are preserved without manual reconfiguration — a critical factor in minimizing commissioning downtime and protecting production throughput.

Efficiency Performance Table

Energy-Aware Automation Architecture

The DSQC663 does not operate in isolation — its energy efficiency contribution is best understood within the broader IRC5 drive and control architecture. The unit receives its DC bus power from the ABB DSQC609 drive unit or the DSQC662 rectifier/capacitor module, which conditions incoming three-phase AC supply into a stable DC rail. Coordinated operation between the DSQC663 and the DSQC609 allows the system to recover braking energy during deceleration phases, feeding it back into the shared DC bus rather than dissipating it as heat — a meaningful efficiency gain in high-cycle applications.

At the controller level, the ABB DSQC652 I/O unit manages digital and analog signal exchange between the robot program and external production equipment, enabling the IRC5 to respond to line-state signals and suppress unnecessary axis movement during upstream stoppages. This reduces the number of powered idle cycles that consume energy without contributing to output. The DSQC651 analog I/O board further supports integration with external sensors and process instruments, allowing energy-aware motion profiles to be triggered based on real production conditions rather than fixed timers.

For communication and supervisory control, the DSQC688 DeviceNet gateway and DSQC679 teach pendant interface allow plant engineers to monitor axis load, cycle time, and fault history from both the robot controller and connected SCADA or MES platforms. When paired with ABB’s Panel Board DSQC643, operators gain local visibility into drive status and can implement energy-saving standby modes during scheduled breaks or shift changeovers without interrupting the robot program sequence.

In multi-robot cells, the IRC5 MultiMove controller coordinates motion across several DSQC663-equipped axes simultaneously, optimizing the overall motion envelope to reduce peak current demand and smooth out energy consumption spikes that would otherwise stress the facility’s power infrastructure. This architecture is particularly valuable in automotive assembly lines where six or more robots operate in close proximity and power demand synchronization directly affects energy billing under time-of-use tariff structures.

Power Optimization in Real Production Lines

In a typical automotive spot-welding cell running two shifts per day, unoptimized axis drives account for a disproportionate share of total robot energy consumption — not during active welding, but during the inter-weld repositioning and wait states that make up 30–45% of cycle time. The DSQC663’s precise torque control allows the IRC5 motion planner to execute repositioning moves at the minimum required velocity, reducing resistive losses in the motor windings and lowering average current draw across the shift.

Factories operating ABB IRB 6700 or IRB 4600 series robots have reported that replacing degraded or counterfeit axis drives with genuine DSQC663 units restores motion repeatability to within ±0.05 mm, eliminating the micro-corrections and re-attempts that inflate cycle time and energy use simultaneously. A single percentage point of cycle time reduction across a 20-robot line translates directly into measurable energy savings and increased parts-per-shift output — without any changes to the robot program or tooling.

Predictive maintenance integration is another area where the DSQC663 delivers operational value. The drive’s internal diagnostics, accessible via the IRC5 FlexPendant or ABB RobotStudio offline programming environment, surface early indicators of bearing wear, thermal stress, and insulation degradation in connected servo motors. Acting on these signals before a fault occurs prevents unplanned downtime events that typically consume 4–8 hours of maintenance labor and disrupt the production schedule of downstream assembly stations.

All DSQC663 units supplied by ZYPLC undergo a full outgoing functional test prior to shipment, verifying axis enable response, current regulation accuracy, and communication handshake with the IRC5 controller board. This testing protocol ensures that replacement units perform to specification from the first power-on, avoiding the hidden commissioning costs associated with untested surplus parts. Combined with a 12-month warranty covering manufacturing defects and premature failure, the DSQC663 from ZYPLC represents a low-risk, high-value procurement decision for maintenance engineers managing IRC5 robot fleets.

Energy Optimization FAQ

Q1: How does the DSQC663 contribute to energy savings compared to a degraded or counterfeit drive?
A degraded drive unit exhibits increased switching losses and poor current regulation, causing the servo motor to draw more current than the motion profile requires. A genuine DSQC663 restores factory-spec PWM efficiency, reducing per-cycle energy consumption and lowering motor operating temperature — which in turn extends motor winding life and reduces cooling load on the controller cabinet.

Q2: Is the DSQC663 3HAC029818-001 compatible with all IRC5 controller variants?
The DSQC663 is designed for the ABB IRC5 single cabinet and IRC5 compact controller platforms running RobotWare 5.x and 6.x. Compatibility with specific robot models (IRB 1600, IRB 2600, IRB 4600, IRB 6700, etc.) depends on the axis configuration and drive system layout. We recommend confirming your controller serial number and RobotWare version before ordering.

Q3: What is the recommended replacement procedure, and how long does commissioning take?
Replacement of the DSQC663 follows ABB’s standard axis drive swap procedure: power down the IRC5 controller, discharge the DC bus via the DSQC609 bleed resistor circuit, swap the drive unit, and perform an axis calibration using the FlexPendant or RobotStudio. In most cases, a trained ABB service engineer can complete the replacement and return the robot to production within 2–4 hours.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects, premature component failure, and functional non-conformance identified during normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. To initiate a warranty claim, contact ZYPLC with the unit serial number, fault description, and proof of purchase. Replacement or repair is processed within 5–7 business days upon receipt of the returned unit.
