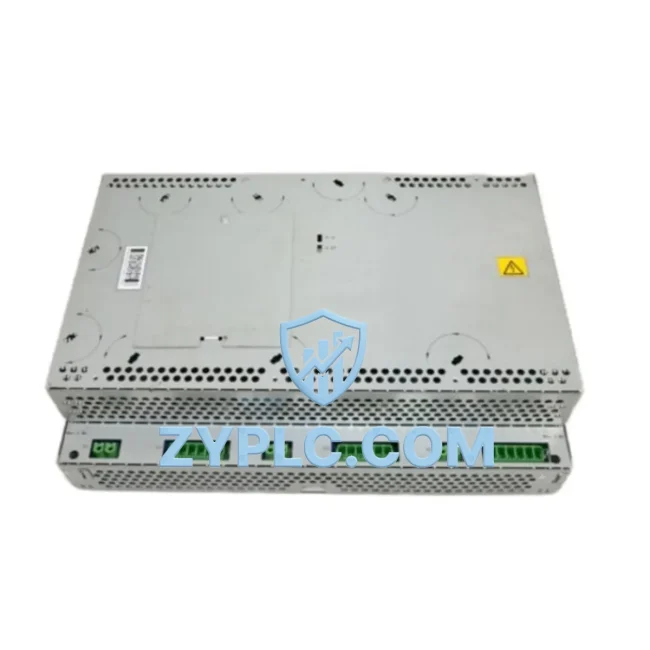

ABB DSQC663 3HAC029818-001 System-Ready Controller for IRC5 Architecture

ABB DSQC663 3HAC029818-001 System-Ready Controller for IRC5 Architecture: Control System Architecture and Upstream-Downstream Coordination

The ABB DSQC663 (3HAC029818-001) is a dedicated robot controller board engineered for seamless integration within the ABB IRC5 modular control architecture. Rather than functioning as a standalone component, the DSQC663 occupies a critical position within the layered automation hierarchy — bridging the computational control layer with the I/O execution layer, coordinating signal flow across the robot’s motion control, safety supervision, and communication subsystems. Understanding its role within the full system architecture is essential for engineers responsible for commissioning, maintenance, and long-term operational continuity of ABB robotic cells.

In modern industrial automation environments — spanning automotive body-in-white lines, arc welding stations, palletizing systems, and precision assembly cells — the IRC5 controller platform is recognized for its scalability and multi-robot coordination capability. The DSQC663 board serves as the axis computer and drive interface module within this platform, managing real-time communication between the main computer unit and the drive system. Its correct operation is foundational to the performance of every downstream component in the robotic cell.

Architecture Specification Table

Coordinated Control System Design

The DSQC663 does not operate in isolation. Its value is realized through its precise coordination with the surrounding IRC5 system architecture. At the control layer, the DSQC663 interfaces directly with the IRC5 main computer — typically the DSQC1000 or DSQC1018 main computer unit — receiving motion trajectory data and translating it into real-time drive commands. This tight coupling ensures deterministic axis control with microsecond-level synchronization across all robot joints.

At the drive layer, the DSQC663 communicates with the ABB DSQC662 rectifier unit and the individual drive modules (such as the DSQC668 or DSQC673 drive units) that power each servo axis. Any degradation in the DSQC663’s signal integrity directly affects torque regulation, speed control, and position accuracy across all axes — making it one of the most maintenance-critical boards in the IRC5 cabinet.

The power distribution layer, anchored by the DSQC661 power supply unit, provides regulated 24 VDC to the DSQC663 and associated logic boards. Ensuring power supply integrity is a prerequisite for stable DSQC663 operation, particularly in environments with fluctuating grid conditions or high-frequency switching loads from adjacent drive systems.

At the I/O layer, the IRC5 system typically incorporates DSQC652 digital I/O boards or DSQC651 analog I/O modules, which handle field-level signals from sensors, end-effectors, and safety interlocks. While the DSQC663 does not directly manage these I/O signals, its stable operation is a prerequisite for the main computer to correctly arbitrate I/O states and execute conditional motion logic.

For multi-robot or coordinated motion applications, the IRC5 system may include the DSQC604 fieldbus adapter or PROFIBUS/DeviceNet communication boards, enabling the robot controller to participate in plant-wide automation networks. The DSQC663’s role in maintaining real-time axis data integrity is essential for the controller to respond correctly to network-level commands from a supervisory PLC or DCS system.

At the human-machine interface layer, operators interact with the IRC5 system via the FlexPendant teach pendant, which communicates with the main computer over the internal controller network. Fault codes related to axis computer failures — often traceable to DSQC663 degradation — are surfaced through the FlexPendant’s event log, making rapid board replacement a key factor in minimizing unplanned downtime.

Application in Layered Automation Systems

The ABB DSQC663 finds application across a broad spectrum of industrial sectors where the IRC5 platform is deployed as the primary robot control architecture.

In automotive manufacturing, IRC5-controlled robots perform spot welding, sealing, and material handling on high-speed transfer lines. The DSQC663’s role in maintaining axis synchronization is critical for maintaining weld quality and cycle time consistency. A failed or degraded DSQC663 can halt an entire production line, making rapid replacement stock availability a strategic maintenance priority.

In arc welding and fabrication environments, the IRC5 system coordinates torch motion with wire feed and shielding gas control. The DSQC663 ensures that the robot’s TCP (Tool Center Point) follows the programmed weld path with the precision required to meet structural integrity standards. Replacement of a faulty DSQC663 with a tested unit — backed by a 12-Month Warranty — allows maintenance teams to restore production without extended recalibration cycles.

In electronics assembly and semiconductor handling, where cleanroom-compatible IRC5 Compact controllers are used, the DSQC663 supports the high-resolution motion control required for component placement and inspection tasks. System architects in these environments prioritize Contextual Integration — ensuring that replacement boards are fully compatible with the existing IRC5 software version and axis configuration.

In food and beverage packaging lines, IRC5-controlled robots perform pick-and-place, case packing, and palletizing operations in continuous multi-shift environments. The DSQC663’s reliability directly impacts OEE (Overall Equipment Effectiveness) metrics, and maintaining a spare unit in the maintenance inventory is a recognized best practice for facilities operating under lean maintenance strategies.

In process industries such as petrochemical, water treatment, and power generation, where robotic systems are used for inspection, valve operation, and hazardous material handling, the IRC5 platform’s robustness is valued for its ability to operate in demanding environmental conditions. The DSQC663’s compatibility with the full IRC5 ecosystem ensures that system upgrades and board replacements can be executed without disrupting the broader control architecture.

Architecture Engineering FAQ

Q1: Is the DSQC663 (3HAC029818-001) compatible with all IRC5 controller variants, including IRC5 Compact and IRC5 Panel Mounted?
The DSQC663 is designed for the ABB IRC5 controller platform and is compatible with IRC5 Single Cabinet, IRC5 Compact, and IRC5 Panel Mounted configurations, subject to the specific RobotWare version and hardware revision installed in the target system. Prior to installation, engineers should verify the controller’s hardware generation and software version to confirm full Contextual Integration. Our technical team can assist with compatibility verification as part of the 12-Month Warranty support process.

Q2: What is the recommended procedure for replacing the DSQC663 in a live production environment, and how does the 12-Month Warranty apply?
Replacement of the DSQC663 should be performed with the IRC5 controller in a de-energized state, following ABB’s standard lockout/tagout procedures. After physical installation, the IRC5 system requires a controlled restart and axis calibration verification via the FlexPendant. The 12-Month Warranty covers functional defects in the supplied board under normal operating conditions and does not cover damage resulting from incorrect installation, overvoltage events, or environmental contamination. Warranty claims are processed through ZYPLC’s technical support channel.

Q3: How does ZYPLC ensure long-term supply availability for the DSQC663, and what support is available for legacy IRC5 systems?
ZYPLC maintains dedicated inventory of ABB IRC5 series components, including the DSQC663, to support both active production facilities and legacy system maintenance programs. For facilities operating older IRC5 hardware generations where OEM supply has been discontinued, ZYPLC provides tested replacement units with full 12-Month Warranty coverage and Contextual Integration documentation. Long-term supply agreements and priority stock reservation are available for customers with high-volume or mission-critical maintenance requirements.
