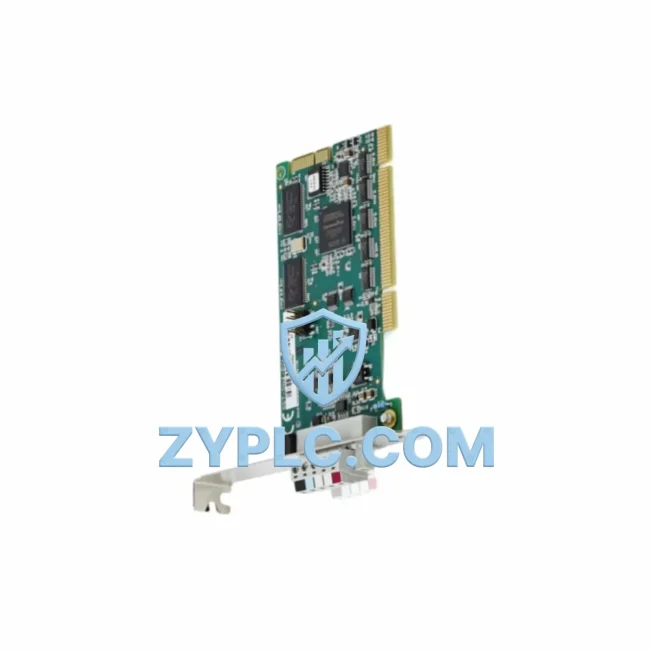

The ABB DSQC697 (3HAC037084-001) is a high-efficiency option board engineered for ABB IRC5 robot controllers, delivering precision I/O expansion and communication optimization across demanding industrial automation environments. In modern manufacturing, where energy costs and equipment utilization directly impact profitability, the DSQC697 plays a critical role in reducing idle-state power draw, streamlining signal processing, and enabling tighter integration between the robot controller and the broader automation architecture.

Unlike generic expansion modules, the DSQC697 is purpose-built for the IRC5 platform, ensuring minimal latency in I/O response and deterministic communication cycles. This translates directly into improved production line throughput — fewer missed cycles, reduced inter-process wait times, and more consistent robot motion profiles that lower mechanical wear and energy consumption per production unit.

Efficiency Performance Table

Energy-Aware Automation Architecture

The DSQC697 option board is most effective when deployed as part of a fully integrated ABB IRC5 automation cell. Within such an architecture, the IRC5 main computer module — typically the DSQC639 or DSQC656 — handles core motion planning and program execution, while the DSQC697 extends the controller’s I/O capacity and fieldbus connectivity without adding unnecessary processing overhead to the main CPU. This division of responsibility is fundamental to energy-aware design: each module handles only what it is optimized for, eliminating redundant computation cycles that waste power.

On the drive side, ABB IRC5 systems commonly pair with ABB ACS880 or ACS580 series variable frequency drives (VFDs) to regulate motor speed and torque in real time. When the DSQC697 facilitates faster, more reliable I/O feedback from sensors and actuators, the VFD can respond with greater precision — reducing motor overshoot, shortening deceleration ramps, and cutting regenerative energy losses. In high-cycle applications such as spot welding or press-tending, this feedback loop can meaningfully reduce per-cycle energy consumption.

For power monitoring, the DSQC697’s expanded I/O channels can interface with ABB B23 or B24 series energy meters, enabling real-time power consumption data to be fed back into the robot program or upstream SCADA systems. This closes the energy monitoring loop: the controller not only executes motion but actively participates in energy accounting. Combined with the ABB AC500 PLC series managing line-level sequencing, the entire cell operates with coordinated energy awareness rather than isolated device-level efficiency.

Communication integrity is equally important. The DSQC697 supports fieldbus protocols that allow seamless integration with ABB Ability™ Connected Services gateways and industrial Ethernet switches, enabling remote diagnostics and predictive maintenance scheduling. When paired with an ABB CP600 HMI panel, operators gain real-time visibility into robot cycle states, I/O status, and energy consumption trends — all from a single interface. This reduces the need for manual inspection rounds, lowering labor overhead and the risk of unplanned downtime.

On the safety and power supply side, the IRC5 controller’s internal DSQC604 power supply module works in tandem with the DSQC697 to ensure stable 24 VDC distribution across all option boards. Voltage stability directly affects I/O signal integrity; fluctuations that cause false triggers or missed signals force the robot to pause, restart sequences, or enter safe-stop states — all of which consume energy without producing output. The DSQC697’s low-power design minimizes its contribution to the overall bus load, preserving headroom for other critical modules.

Power Optimization in Real Production Lines

In automotive body shop applications, ABB IRC5 robots equipped with the DSQC697 option board have demonstrated measurable improvements in cycle time consistency. By expanding the available I/O channels, the controller can monitor more process variables simultaneously — weld gun pressure, part presence sensors, conveyor position encoders — without multiplexing delays. Eliminating multiplexing reduces the controller’s scan cycle time, which in turn allows the robot to begin its next motion earlier, improving line takt time without increasing motor speed or torque demand.

In material handling and palletizing lines, the DSQC697 enables more granular control over gripper actuators and conveyor interlocks. Rather than running conveyors at fixed speeds regardless of downstream demand, the system can use I/O signals routed through the DSQC697 to implement demand-driven conveyor control — slowing or stopping upstream sections when the robot cell is processing, and resuming at full speed only when the robot signals readiness. This alone can reduce conveyor motor energy consumption by 15–30% in typical palletizing applications.

Predictive maintenance is another area where the DSQC697 contributes to long-term energy efficiency. By connecting additional diagnostic sensors — vibration monitors on robot joints, temperature sensors on drive cabinets — through the expanded I/O, maintenance teams receive early warning of developing faults. Addressing a bearing issue before it causes a catastrophic failure avoids the energy-intensive process of emergency repair, line restart, and quality rework that follows unplanned downtime.

Every unit shipped from our facility undergoes a full functional test and outgoing inspection, verifying I/O channel integrity, communication protocol handshake, and power consumption within specification. This ensures that the DSQC697 you receive performs at rated efficiency from day one, with no burn-in period required. All units are covered by a 12-month warranty, and our inventory is maintained to support rapid dispatch for urgent production line requirements.

Energy Optimization FAQ

Q1: How does the DSQC697 contribute to energy savings in an IRC5 robot cell?
The DSQC697 reduces I/O polling overhead by providing dedicated fieldbus communication channels, allowing the IRC5 controller to process signals faster and with less CPU load. This enables tighter motion synchronization, shorter cycle times, and reduced idle-state energy consumption across the robot cell.

Q2: Is the DSQC697 compatible with all IRC5 controller variants?
The DSQC697 (3HAC037084-001) is designed for the ABB IRC5 controller family, including single-cabinet and dual-cabinet configurations. Compatibility with specific IRC5 variants (M2004, M2004 Panel Mounted, IRC5 Compact) should be verified against the robot’s software version and existing option board configuration. Contact us for pre-purchase compatibility confirmation.

Q3: Can the DSQC697 replace an older DSQC688 or DSQC652 option board?
Direct substitution depends on the fieldbus protocol and I/O mapping of the existing installation. The DSQC697 offers updated communication capabilities compared to earlier option boards, but RobotWare configuration changes may be required. We recommend providing your IRC5 serial number and current option board list for a compatibility assessment before ordering.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All DSQC697 units are functionally tested prior to shipment, including I/O channel verification, communication protocol handshake testing, and power consumption measurement. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units showing damage from incorrect installation voltage or ESD mishandling are assessed case by case. Contact our team for warranty claims or technical support.
