ABB DSTC190 57520001-ER System-Ready Communications Unit for S800 Architecture

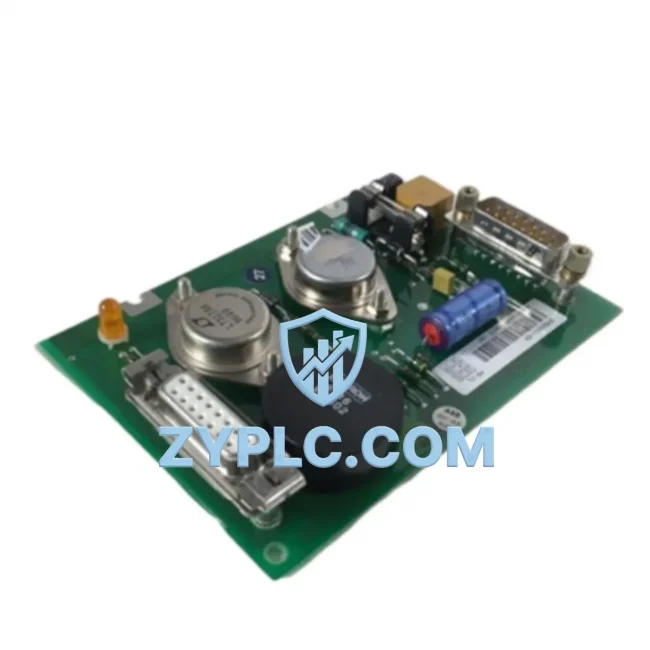

The ABB DSTC190 57520001-ER is a high-integrity Communications Connection Unit engineered for deployment within the ABB S800 I/O system and AC 800M controller platform. In modern distributed control architectures, the reliability of inter-module communication is as critical as the processing power of the controller itself. The DSTC190 serves as the communications backbone interface between the S800 I/O clusters and the supervisory control layer, ensuring deterministic signal exchange, low-latency data transfer, and robust fault isolation across the entire automation hierarchy.

Within a fully integrated control system, the DSTC190 does not operate in isolation. It functions as a coordinating node that bridges the field I/O layer with the controller network, enabling the AC 800M CPU modules — such as the PM861 and PM864 — to maintain continuous, synchronized communication with distributed I/O stations. This architectural role is fundamental to achieving the system consistency, scalability, and redundancy that demanding industrial environments require.

Architecture Specification Table

Coordinated Control System Design

The DSTC190 57520001-ER achieves its full value when considered within the broader S800 and AC 800M control architecture. At the controller layer, the AC 800M PM864 or PM861 CPU modules serve as the primary processing units, executing control logic and managing communication schedules. The DSTC190 acts as the communications gateway that connects these controllers to the distributed S800 I/O clusters, carrying process data across the network with deterministic timing.

Power integrity for the DSTC190 and its associated I/O modules is maintained through the SD821 or SD822 power supply units, which provide regulated 24 VDC to the S800 backplane. Alongside the DSTC190, the S800 cluster typically includes analog input modules such as the AI810 and AI830A for process variable acquisition, digital output modules like the DO810 for actuator control, and the TB820 or TB840 media redundancy modules that ensure communication continuity in the event of a network path failure.

For systems requiring high-availability operation, the DSTC190 is often deployed in conjunction with redundant communication paths supported by the CI854 PROFIBUS DP communication interface module. This redundancy architecture ensures that a single point of failure in the communication network does not interrupt process control. The CI854 and DSTC190 together form a resilient communication layer that supports hot-standby operation, critical in continuous process industries where unplanned downtime carries significant operational and safety consequences.

At the human-machine interface layer, operator workstations running ABB’s System 800xA platform receive real-time process data routed through the AC 800M controllers and the DSTC190 communication chain. This end-to-end data flow — from field sensor through S800 I/O, across the DSTC190 communications link, through the PM864 controller, and up to the 800xA HMI — represents the complete signal path that the DSTC190 helps maintain with high reliability.

Terminal modules and marshalling components within the control cabinet, including the TU810V1 and TU830V1 I/O termination units, connect field wiring to the S800 I/O modules without disturbing the communication layer managed by the DSTC190. This modular design philosophy allows engineers to replace or expand I/O capacity without interrupting the communications infrastructure, significantly reducing maintenance downtime and simplifying system upgrades.

Application in Layered Automation Systems

The DSTC190 57520001-ER is well-suited for a wide range of industrial automation environments where reliable distributed I/O communication is non-negotiable. In power generation and transmission facilities, the module supports the integration of protection relay signals and generator control I/O into the plant-wide DCS, enabling operators to monitor and control critical electrical infrastructure from a unified control platform.

In petrochemical and refinery applications, the DSTC190 facilitates the connection of field instruments — including pressure transmitters, flow meters, and temperature sensors — to the AC 800M control system. The module’s robust communication design ensures that process variable data reaches the controller with the consistency and speed required for closed-loop regulatory control of distillation columns, heat exchangers, and reactor systems.

Water and wastewater treatment plants benefit from the DSTC190’s ability to support geographically distributed I/O clusters connected over extended PROFIBUS segments. Pump stations, chemical dosing systems, and filtration controls can all be integrated into a single AC 800M-based control architecture, with the DSTC190 maintaining communication integrity across the distributed network.

In mining and minerals processing, where environmental conditions are demanding and equipment reliability is paramount, the DSTC190’s industrial-grade design supports continuous operation in high-vibration, high-dust environments. Conveyor systems, crusher controls, and flotation cell automation can all be managed through S800 I/O clusters linked via the DSTC190 to the central control system.

Metallurgical and steel plant applications leverage the DSTC190 for integrating furnace temperature control, rolling mill drive coordination, and cooling system management into a unified DCS architecture. The module’s support for redundant communication paths is particularly valuable in these environments, where process continuity directly impacts product quality and energy efficiency.

Architecture Engineering FAQ

Q1: Is the DSTC190 57520001-ER compatible with both the S800 I/O system and the AC 800M controller platform?
Yes. The DSTC190 is designed as the communications interface between the S800 I/O cluster and the AC 800M controller network. It is fully compatible with AC 800M CPU modules including the PM861 and PM864, and integrates directly with S800 I/O modules via the cluster backplane. Engineers should verify the firmware revision of the AC 800M controller against the DSTC190 hardware revision to confirm compatibility for specific system configurations.

Q2: Can the DSTC190 be used in a redundant communication architecture, and what additional components are required?
Yes. The DSTC190 supports deployment in redundant communication architectures when used in conjunction with compatible media redundancy modules such as the TB840 and communication interface modules like the CI854. A redundant configuration requires paired DSTC190 units and appropriate network topology planning. Our engineering team can provide system architecture guidance to ensure correct redundancy implementation within your specific control system design.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance requirements?
All DSTC190 57520001-ER units supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment. Each unit undergoes functional testing prior to dispatch to verify communication integrity and electrical performance. For long-term maintenance, ZYPLC maintains stock of the DSTC190 and related S800 components to support planned maintenance cycles and emergency replacement requirements. Our technical team provides pre-sales compatibility consultation and post-sales support to ensure seamless Contextual Integration within your existing control system architecture.
