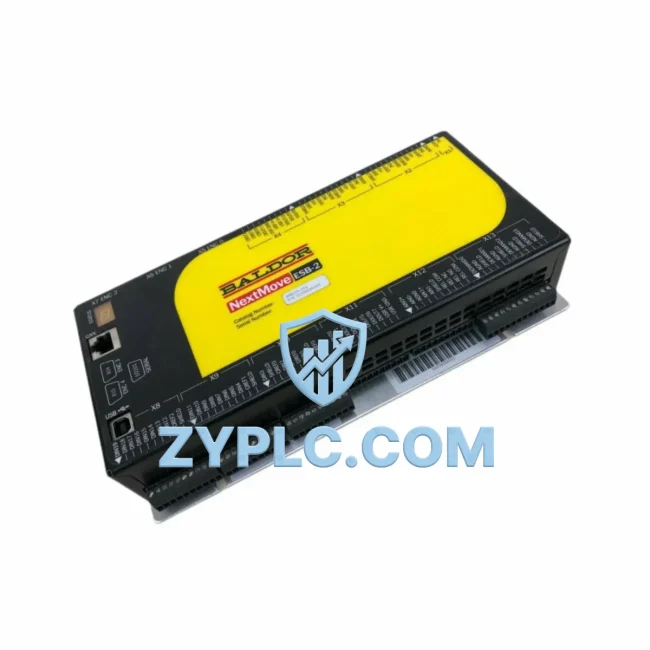

ABB ESB-2 NSB202-501B System-Ready Motion Controller for NSB202 Architecture

ABB ESB-2 NSB202-501B System-Ready Motion Controller: Control System Architecture and Upstream-Downstream Coordination

The ABB ESB-2 NSB202-501B is a dedicated motion controller engineered for deployment within the ABB NSB202 control platform. Rather than functioning as a standalone device, this module is designed to operate as an integral node within a layered industrial automation architecture — coordinating signal flow between the CPU layer, I/O layer, network communication layer, power supply layer, human-machine interface layer, and the final execution layer. Its role in the NSB202 system is to ensure deterministic motion sequencing, synchronized axis control, and reliable feedback processing across the entire control hierarchy.

In modern industrial automation, the value of any motion controller is measured not only by its standalone specifications but by how seamlessly it integrates into the broader system architecture. The ESB-2 NSB202-501B is purpose-built for this philosophy. It supports the NSB202 backplane bus architecture, enabling direct communication with adjacent I/O modules, power supply units, and CPU modules without the need for additional signal converters or protocol bridges. This native compatibility reduces engineering overhead during commissioning, minimizes potential points of failure, and ensures that the motion controller operates within the timing constraints demanded by high-speed manufacturing and process control applications.

Architecture Specification Table

Coordinated Control System Design

The ESB-2 NSB202-501B achieves its highest operational value when deployed as part of a complete NSB202 control system. At the CPU layer, it interfaces directly with the ABB NSB202 central processing unit, receiving motion commands and returning real-time position and status feedback. This tight coupling between the CPU module and the motion controller ensures that axis movements are executed within the scan cycle constraints of the overall control program, eliminating timing drift that can occur when motion controllers operate on separate communication buses.

At the I/O layer, the ESB-2 NSB202-501B coordinates with NSB202 digital input/output modules and analog signal modules to receive encoder feedback, limit switch signals, and drive enable commands. These I/O modules share the same NSB202 backplane, allowing the motion controller to access field signals with minimal latency. In applications requiring precise positioning — such as servo-driven packaging lines or CNC-adjacent material handling systems — this low-latency I/O access is critical to maintaining synchronization between multiple axes.

At the network communication layer, the NSB202 architecture supports integration with higher-level SCADA systems and MES platforms through industrial Ethernet gateways and fieldbus communication modules. The ESB-2 NSB202-501B participates in this network hierarchy by exposing motion status data and diagnostic information to the supervisory layer, enabling operators to monitor axis performance, detect fault conditions, and initiate controlled shutdowns from the HMI or SCADA workstation without interrupting the motion sequence in progress.

At the power supply layer, the NSB202 series power supply modules provide regulated DC power to the backplane, ensuring that the ESB-2 NSB202-501B and adjacent modules receive stable voltage even during load transients caused by motor acceleration or deceleration. In redundant power configurations — where dual NSB202 power supply units are deployed — the motion controller continues to operate without interruption during a single power supply failure, supporting the high-availability requirements of continuous process industries.

At the human-machine interface layer, operators interact with the motion system through HMI panels connected to the NSB202 network. The ESB-2 NSB202-501B exposes motion parameters, fault codes, and axis status to the HMI, allowing maintenance engineers to perform jog operations, parameter adjustments, and diagnostic routines directly from the panel without requiring a laptop or programming terminal on the plant floor. This capability significantly reduces mean time to repair (MTTR) during unplanned downtime events.

At the execution layer, the ESB-2 NSB202-501B drives servo amplifiers, variable frequency drives (VFDs), and stepper motor drivers through its command output interfaces. In multi-axis configurations, it coordinates the motion profiles of multiple drives simultaneously, ensuring that gantry systems, conveyor synchronization applications, and coordinated pick-and-place mechanisms operate with the positional accuracy required by modern manufacturing tolerances. Terminal modules and relay output modules within the NSB202 rack provide the discrete signal interfaces needed to interlock the motion system with safety circuits, pneumatic actuators, and mechanical brakes.

Application in Layered Automation Systems

Manufacturing & Assembly Lines: In automotive and electronics manufacturing, the ESB-2 NSB202-501B controls servo-driven assembly stations where precise positioning and repeatable motion profiles are essential. Integrated within the NSB202 architecture, it synchronizes with vision system triggers, conveyor encoders, and robotic arm controllers to maintain production throughput and quality consistency across multi-shift operations.

Power Generation & Utilities: In power plant auxiliary systems — including fuel handling conveyors, valve actuator control, and turbine auxiliary equipment — the ESB-2 NSB202-501B provides reliable motion control within the plant’s distributed control system (DCS) architecture. Its compatibility with the NSB202 redundant CPU configuration ensures that motion control functions remain available even during planned maintenance of the primary CPU module.

Petrochemical & Process Industries: In refinery and chemical plant environments, the ESB-2 NSB202-501B manages the motion of metering pumps, agitator drives, and positioning actuators within hazardous area control systems. The NSB202 platform’s support for intrinsically safe I/O modules and ATEX-rated enclosures allows the motion controller to be deployed in Zone 2 classified areas when installed within appropriately certified control cabinets.

Water & Wastewater Treatment: Municipal water treatment facilities use the ESB-2 NSB202-501B to control the motion of sluice gate actuators, pump speed references, and filter backwash mechanisms. Integrated with NSB202 analog I/O modules monitoring flow rates, pressure, and turbidity, the motion controller adjusts actuator positions in response to process variable changes, supporting closed-loop control strategies that optimize treatment efficiency and reduce energy consumption.

Mining & Metallurgy: In ore processing and metal smelting facilities, the ESB-2 NSB202-501B controls conveyor drives, crusher feed systems, and ladle transfer mechanisms. The robust design of the NSB202 platform — combined with the motion controller’s ability to interface with high-power VFDs and soft starters — makes it suitable for the demanding electrical environment of heavy industry, where voltage transients and electromagnetic interference are common challenges.

Packaging & Material Handling: High-speed packaging lines require motion controllers capable of executing complex cam profiles and electronic gearing functions. The ESB-2 NSB202-501B, operating within the NSB202 control architecture, delivers the deterministic motion execution needed for film wrapping machines, cartoning lines, and palletizing systems where axis synchronization tolerances are measured in fractions of a millisecond.

Architecture Engineering FAQ

Q1: Is the ESB-2 NSB202-501B compatible with existing NSB202 racks and backplanes already installed in my facility?
Yes. The ESB-2 NSB202-501B is designed for direct installation into the NSB202 rack system without requiring backplane modifications or firmware upgrades to adjacent modules. It communicates natively over the NSB202 internal bus, ensuring full compatibility with existing NSB202 CPU modules, I/O modules, and power supply units already deployed in your control cabinet. Before installation, verify that your NSB202 CPU firmware version supports the ESB-2 motion controller module — consult the ABB NSB202 system compatibility matrix or contact our technical team for confirmation.

Q2: Can the ESB-2 NSB202-501B be used in a redundant control architecture, and what happens to motion control during a CPU failover event?
The NSB202 platform supports CPU redundancy configurations where a standby CPU module takes over control in the event of a primary CPU failure. The ESB-2 NSB202-501B maintains its last commanded state during the failover transition, and the standby CPU resumes motion control within the system’s configured switchover time. For applications requiring bumpless transfer — where motion must continue without interruption during failover — it is recommended to configure the motion controller’s hold-last-value behavior and to test the failover sequence during commissioning. Our engineering team can provide guidance on redundancy configuration specific to your NSB202 system architecture.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance and spare parts availability for the ESB-2 NSB202-501B?
Every ESB-2 NSB202-501B supplied by ZYPLC is covered by a 12-Month Warranty from the date of shipment. This warranty covers functional defects identified during normal operation under the specified environmental and electrical conditions. Each unit undergoes functional testing prior to shipment to verify motion command processing, backplane communication, and I/O interface integrity. For long-term maintenance planning, ZYPLC maintains inventory of NSB202 series components — including CPU modules, power supply units, I/O modules, and communication gateways — to support your facility’s spare parts program. Contact our team at plc.sales@zyplc.com or +86 19859288691 to discuss stocking agreements and lead time commitments for your site.
