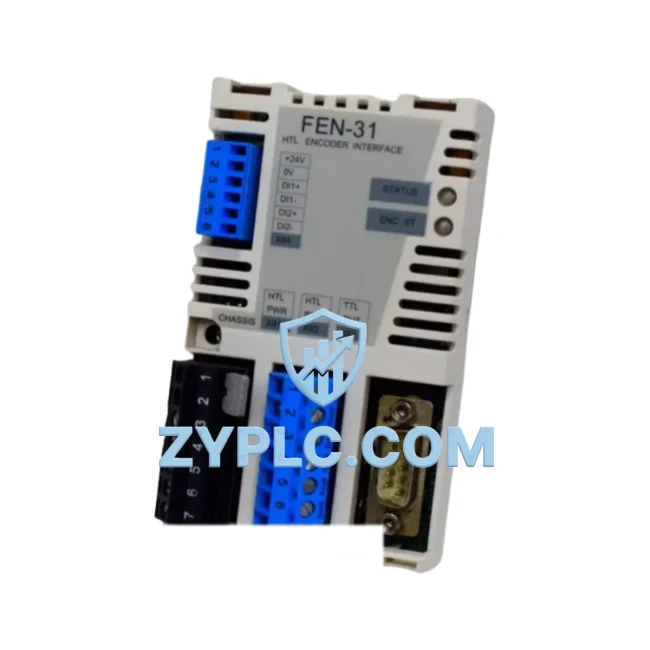

ABB FEN-31 68978840 System-Ready Encoder Interface for ACS880 Architecture

ABB FEN-31 68978840 System-Ready Encoder Interface for ACS880 Architecture

The ABB FEN-31 68978840 is a precision-engineered encoder interface module designed to operate as a critical feedback component within the ABB ACS880 industrial drive architecture. Rather than functioning as a standalone accessory, the FEN-31 is conceived as a system-level element — one that bridges the motor feedback layer with the drive control layer, enabling closed-loop vector control with the accuracy and reliability demanded by modern industrial automation environments. In high-performance motion control applications, the integrity of encoder signal transmission directly determines the quality of torque regulation, speed stability, and positioning repeatability. The FEN-31 fulfills this role with a robust hardware design validated for continuous operation in demanding industrial conditions.

Understanding the FEN-31’s value requires viewing it within the full control system hierarchy of an ACS880-based installation. At the control layer, the ACS880 drive CPU processes real-time feedback from the FEN-31 to execute direct torque control (DTC) algorithms. The FEN-31 slots into the drive’s option slot, communicating via the drive’s internal extension bus, which ensures deterministic, low-latency signal exchange between the encoder and the drive’s control board. This tight integration eliminates the signal degradation risks associated with external encoder conditioning circuits and supports the ACS880’s advanced motor control modes, including speed-sensorless and encoder-based closed-loop operation.

At the I/O and feedback layer, the FEN-31 supports multiple encoder types, including TTL incremental encoders, HTL incremental encoders, and absolute encoders with SSI or EnDat interfaces, depending on the specific variant configuration. This versatility allows system engineers to standardize on a single interface module across diverse motor feedback technologies, reducing spare parts complexity and simplifying commissioning workflows. When paired with ABB’s ACH580 or ACS580 drives in adjacent machine cells, the FEN-31’s compatibility profile supports cross-platform encoder standardization within the same production line or process area.

From a network and communication perspective, the FEN-31 does not operate in isolation from the broader automation network. In a typical ACS880 system architecture, the drive communicates upstream with a PLC or DCS via fieldbus adapters such as the FENA-21 Ethernet adapter or the FPBA-01 PROFIBUS adapter. The FEN-31’s encoder data is processed by the drive and made available to the supervisory control layer through these communication interfaces, enabling the PLC — such as an ABB AC500 series controller or a Siemens S7-300/400 — to monitor motor speed, position, and load in real time. This data flow supports predictive maintenance strategies and energy optimization routines at the system level.

At the power layer, the ACS880 drive’s internal power supply provides the necessary voltage rails for the FEN-31 module, eliminating the need for external encoder power conditioning. This integrated power architecture reduces wiring complexity and improves system reliability by minimizing the number of external power supply components. In redundant drive configurations, where a standby ACS880 unit is maintained in hot-standby mode, the FEN-31 module in each drive unit ensures that encoder feedback is immediately available upon drive switchover, supporting uninterrupted process continuity.

For human-machine interface (HMI) integration, the encoder data processed through the FEN-31 can be surfaced on ABB’s CP600 series HMI panels or third-party SCADA systems via OPC-UA or Modbus TCP gateways. Operators gain real-time visibility into motor speed trends, encoder pulse counts, and fault diagnostics, enabling faster response to process deviations. At the execution layer, the FEN-31’s high-resolution encoder feedback directly governs the performance of servo motors, induction motors, and permanent magnet motors connected to the ACS880, ensuring that actuator response matches the control system’s command signals with minimal lag.

In terms of system expandability, the FEN-31 is compatible with the ACS880’s modular option slot architecture, which also accommodates I/O extension modules such as the FIO-01 digital I/O module and the FIO-11 analog I/O module. This modularity allows engineers to expand the drive’s I/O capabilities without replacing the base drive unit, protecting capital investment and simplifying future system upgrades. The FEN-31 also supports the ACS880’s Safe Torque Off (STO) safety function, ensuring that encoder feedback remains available during safety-related stop sequences without compromising the drive’s functional safety integrity level.

Long-term maintenance efficiency is a key consideration in the selection of the FEN-31 for ACS880 installations. The module’s plug-in design allows field replacement without specialized tools, reducing mean time to repair (MTTR) in the event of a module fault. Maintenance teams can carry the FEN-31 as a standard spare part alongside other ACS880 option modules, such as the FDPI-02 drive panel interface or the FCAN-01 CANopen adapter, creating a compact and cost-effective spare parts inventory strategy. All FEN-31 modules supplied by ZYPLC are covered by a 12-Month Warranty, providing procurement teams with confidence in component quality and supply chain reliability.

Architecture Specification Table

Coordinated Control System Design

The FEN-31 68978840 achieves its full performance potential when integrated within a coordinated ACS880 control system architecture. A typical high-performance installation begins with the ACS880-01 single drive unit as the core power conversion element, with the FEN-31 installed in option slot 1 to provide closed-loop encoder feedback for direct torque control. The drive’s control board communicates with an upstream ABB AC500 PM591 CPU module via a FENA-21 Ethernet/IP adapter installed in option slot 2, enabling the PLC to issue speed and torque references while receiving real-time encoder position data.

At the I/O layer, an FIO-01 digital I/O extension module installed in option slot 3 provides additional digital inputs for encoder marker pulse monitoring and drive enable/disable signals from the safety relay circuit. For applications requiring analog speed references, an FIO-11 analog I/O module supplements the FEN-31’s digital feedback with 4–20 mA process variable signals from upstream flow or pressure transmitters. In multi-drive installations, the ACS880 multidrive cabinet architecture allows multiple drive modules to share a common DC bus, with each drive unit equipped with its own FEN-31 module for independent motor feedback — a configuration commonly used in coordinated winder, unwinder, and draw roll systems in paper and textile manufacturing.

For safety-critical applications, the FEN-31 operates in conjunction with the ACS880’s FSO-12 functional safety module, which monitors encoder feedback to implement Safe Speed Monitoring (SSM) and Safe Direction (SDI) safety functions in accordance with IEC 62061 and ISO 13849. The FDPI-02 drive panel interface module provides local parameter access and fault diagnostics during commissioning, while the FCAN-01 CANopen adapter supports integration with CANopen-based machine safety networks. Terminal blocks and shielded encoder cables routed through the control cabinet’s cable management system complete the installation, with cable shields terminated at the drive’s PE rail to minimize electromagnetic interference on the encoder signal lines.

Application in Layered Automation Systems

The ABB FEN-31 68978840 finds application across a broad spectrum of industrial sectors where precise motor speed and position feedback is essential to process quality and equipment reliability. In manufacturing and assembly automation, the FEN-31 enables the ACS880 to deliver the sub-millisecond torque response required for servo-class positioning in robotic welding positioners, CNC spindle drives, and precision conveyor indexing systems. The module’s support for absolute encoder interfaces is particularly valuable in applications where motor position must be retained across power cycles without homing routines.

In the power generation and utilities sector, ACS880 drives equipped with FEN-31 modules are deployed in boiler feed pump drives, cooling water pump systems, and induced draft fan applications, where closed-loop speed control ensures process stability across varying load conditions. The FEN-31’s robust signal conditioning circuitry maintains encoder signal integrity in the electrically noisy environments typical of power plant switchgear rooms and motor control centers.

In the petrochemical and oil and gas industries, the FEN-31 supports ACS880 drives installed in compressor trains, extruder drives, and agitator systems, where precise speed regulation is critical to product quality and process safety. The module’s compatibility with the ACS880’s STO safety function ensures compliance with IEC 61511 functional safety requirements for process industry applications. In water and wastewater treatment facilities, FEN-31-equipped ACS880 drives control submersible pump motors and aeration blowers, with encoder feedback enabling energy-optimized variable speed operation across the full pump curve.

Mining and minerals processing applications leverage the FEN-31’s high-frequency encoder input capability for conveyor belt drives, crusher drives, and hoist systems, where accurate speed feedback is essential for load sharing between parallel drive systems and for anti-slip control on inclined conveyors. In metallurgical rolling mills and continuous casting lines, the FEN-31 enables the ACS880 to deliver the dynamic torque performance required for tension control in multi-stand rolling configurations. Packaging and material handling lines benefit from the FEN-31’s fast encoder processing for registration control, label application, and high-speed sorting systems.

Architecture Engineering FAQ

Q1: Is the ABB FEN-31 68978840 compatible with all ACS880 drive variants, and can it be used with other ABB drive platforms?
The FEN-31 is designed primarily for the ACS880 single drive and multidrive platform, where it installs into the drive’s standard option slot. It is not directly compatible with ACS580 or ACH580 drives, which use a different option slot architecture and require the FEN-31’s predecessor or alternative encoder interface modules. For ACS880 installations, the FEN-31 supports all standard ACS880 frame sizes from R1 to R11, provided the option slot is available and not occupied by a conflicting module. Engineers should verify the drive’s option slot configuration using the ACS880 hardware manual before ordering.

Q2: What commissioning steps are required to activate closed-loop encoder control with the FEN-31 in an ACS880 system?
After physical installation of the FEN-31 in the drive’s option slot, commissioning requires configuration of the drive’s encoder interface parameters via the ACS880’s control panel or the Drive Composer PC tool. Key parameters include encoder type selection (TTL/HTL/SSI/EnDat), encoder pulse count per revolution, and encoder signal filtering settings. The drive’s motor control mode must be switched from open-loop to closed-loop vector control, and the encoder feedback channel must be assigned to the speed feedback source. A motor identification run (ID run) should be performed after encoder configuration to optimize the drive’s motor model parameters. ZYPLC’s technical support team can provide commissioning guidance for complex multi-drive architectures.

Q3: What does the 12-Month Warranty cover for the FEN-31 68978840, and what is the process for warranty claims?
All FEN-31 68978840 modules supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects, component failures, and functional non-conformance under normal operating conditions. The warranty does not cover damage resulting from incorrect installation, operation outside specified electrical or environmental limits, or unauthorized modification of the module. To initiate a warranty claim, customers should contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with the module’s serial number, purchase order reference, and a description of the observed fault. ZYPLC will arrange for module inspection and, where the fault is confirmed as warranty-eligible, will provide a replacement module or repair service at no additional cost.
