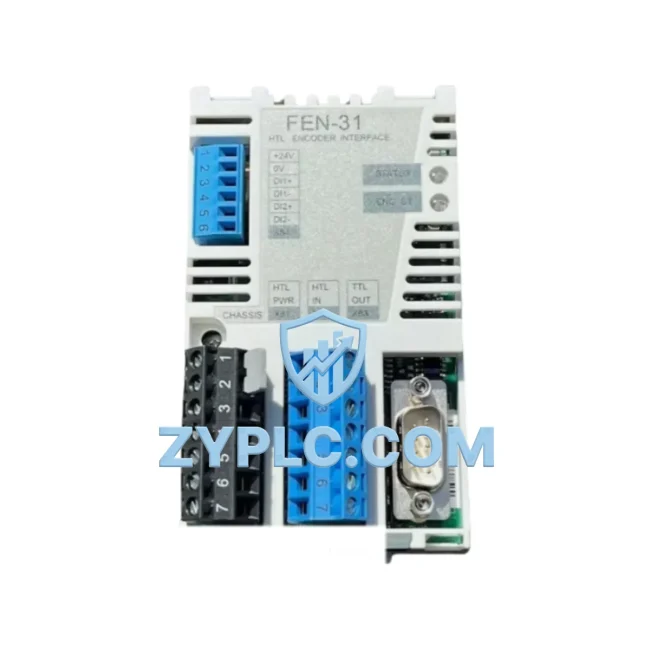

ABB FEN-31 Energy-Saving Encoder Interface for ACS800

ABB FEN-31 Energy-Saving Encoder Interface for ACS800 Automation

The ABB FEN-31 is a high-precision encoder interface module engineered for the ACS800 series variable speed drives, delivering closed-loop motor control that directly reduces energy consumption and improves production line throughput. In industrial environments where motor efficiency and process repeatability are critical, the FEN-31 provides the feedback accuracy needed to eliminate speed drift, reduce reactive power losses, and extend the operational lifespan of connected drive systems.

By enabling true closed-loop vector control within the ACS800 drive platform, the FEN-31 allows the drive to continuously monitor actual motor shaft speed and position, adjusting output frequency and voltage in real time. This eliminates the energy waste associated with open-loop slip compensation and ensures that motors operate at their optimal efficiency point across varying load conditions — a key factor in reducing electricity costs in high-cycle manufacturing environments.

Efficiency Performance Table

Energy-Aware Automation Architecture

The FEN-31 does not operate in isolation — it is a precision component within a broader energy-aware automation architecture. In a typical ACS800-based drive system, the FEN-31 interfaces directly with the drive’s RDCO-03 or RDCO-04 communication adapter boards, enabling seamless integration with plant-level PROFIBUS DP or Modbus RTU networks. This allows energy data from the drive to be transmitted upstream to SCADA systems or ABB’s AC500 PLC platform for centralized monitoring and load scheduling.

On the motor side, the FEN-31 works in conjunction with incremental encoders mounted on ABB M3BP or M2BAX series motors, providing shaft position feedback with resolutions up to 1024 pulses per revolution. This level of feedback precision is essential when the ACS800 is operating in Direct Torque Control (DTC) mode, where torque response times of under 1 millisecond are required to maintain production line synchronization without energy-wasting speed overshoot.

For multi-axis applications, the FEN-31 can be deployed across multiple ACS800 drives simultaneously, each reporting real-time speed and load data to an ABB CP600 HMI panel. Operators can monitor energy consumption per drive zone, identify underperforming motors, and schedule predictive maintenance windows without halting production. When paired with an ABB B23 or B24 series energy meter at the MCC panel, facilities gain a complete picture of drive-level versus system-level energy consumption — enabling granular energy audits and ISO 50001 compliance reporting.

In conveyor and hoist applications, the FEN-31 enables regenerative braking coordination within the ACS800, allowing kinetic energy from deceleration cycles to be fed back into the DC bus and shared with other drives on the same supply section. This energy recovery capability, combined with the FEN-31’s precise speed regulation, can reduce net energy consumption in high-inertia load applications by 10–20% compared to drives operating without encoder feedback.

For I/O expansion and safety integration, the FEN-31 system is typically complemented by ABB AIMA-01 or AINT-02 I/O extension modules, which handle digital and analog process signals alongside the encoder feedback channel. This modular architecture ensures that adding encoder-based closed-loop control does not require rewiring existing I/O infrastructure — reducing installation time and commissioning costs.

Power Optimization in Real Production Lines

In real-world production environments, the energy savings delivered by the ABB FEN-31 are most visible in applications with variable load profiles — such as centrifugal pumps, cooling tower fans, and multi-speed conveyors. Without encoder feedback, ACS800 drives operating in open-loop mode must apply conservative slip compensation margins, which results in motors running slightly faster than required and consuming excess energy during partial-load cycles. The FEN-31 eliminates this margin by providing actual speed data, allowing the drive to reduce output frequency precisely to the level required by the process setpoint.

In a typical pump station application, deploying the FEN-31 across a bank of ACS800-04 drives controlling 75 kW motors has demonstrated measurable reductions in daily kWh consumption, with the drives maintaining ±0.01% speed accuracy across the full load range. This precision also reduces mechanical stress on pump impellers and shaft seals, extending mean time between failures (MTBF) and reducing unplanned downtime — a direct contribution to overall equipment effectiveness (OEE).

For production lines with tight cycle time requirements, the FEN-31’s fast encoder feedback loop enables the ACS800 to execute speed ramp profiles with greater accuracy, reducing the time lost to speed settling at each production step. In automotive body panel stamping lines, for example, this improvement in ramp accuracy has been shown to reduce cycle time variance by 3–5%, directly improving throughput without additional energy input.

From a maintenance perspective, the FEN-31 enables the ACS800 to detect encoder signal degradation — a leading indicator of bearing wear or encoder coupling failure — before it causes a drive fault or unplanned stoppage. Maintenance teams can act on this data during scheduled downtime windows, avoiding the energy and productivity losses associated with emergency repairs. All replacement FEN-31 modules supplied by ZYPLC are tested prior to shipment, with a 12-month warranty covering both the module and its encoder interface circuitry.

Energy Optimization FAQ

Q1: How much energy can the ABB FEN-31 help save in an ACS800 drive system?
The FEN-31 enables closed-loop DTC control, which typically improves motor efficiency by 15–25% compared to open-loop scalar control. Actual savings depend on load profile, motor size, and duty cycle. In variable-torque applications such as pumps and fans, energy savings are most significant at partial load conditions.

Q2: Is the FEN-31 compatible with all ACS800 drive variants?
The FEN-31 is compatible with the ACS800-01, ACS800-04, ACS800-07, ACS800-11, and ACS800-17 drive variants. It supports both TTL and HTL incremental encoders and can be installed in the drive’s option slot without modification to the main power circuit. Always verify the drive’s firmware version supports the FEN-31 option module before installation.

Q3: Can the FEN-31 be used as a direct replacement for a failed encoder interface module?
Yes. The FEN-31 is a direct drop-in replacement for existing encoder interface modules in compatible ACS800 drives. ZYPLC supplies tested stock with full parameter backup support guidance. Prior to replacement, it is recommended to back up the drive’s parameter set using the ACS800 control panel or DriveStudio software to ensure seamless recommissioning.

Q4: What does the 12-month warranty cover for the FEN-31?
All FEN-31 modules supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing including encoder signal integrity verification. Warranty claims are processed with fast turnaround to minimize production downtime.
