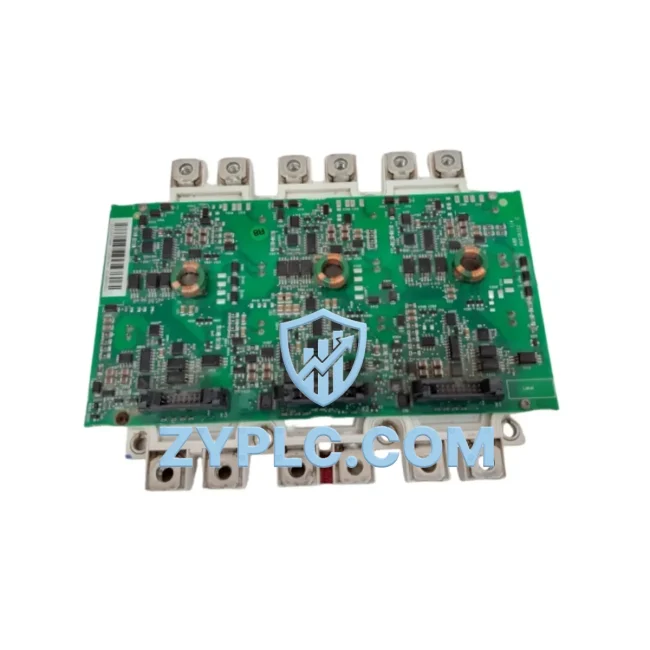

ABB FS450R12KE3 AGDR-71C System-Ready Gate Driver for ACS880 Architecture

ABB FS450R12KE3 AGDR-71C System-Ready Gate Driver for ACS880 Architecture: Control System Architecture and Upstream–Downstream Coordination

In modern industrial automation, the reliability of a drive system is never determined by a single component in isolation — it is the product of precise coordination across every layer of the control architecture. The ABB FS450R12KE3 AGDR-71C Gate Driver Board occupies a critical position within this hierarchy: it serves as the direct interface between the digital control layer and the high-power IGBT switching stage, translating logic-level commands into the precise gate pulses that govern inverter output. Understanding this board’s role requires examining the full system context in which it operates — from the CPU and fieldbus layer down through the power conversion stage and into the load.

The AGDR-71C is specifically engineered to pair with the FS450R12KE3 IGBT module, a 1200 V / 450 A half-bridge power semiconductor widely deployed in medium-power industrial drives. Together, these two components form the switching core of the inverter stage in ABB’s ACS880 industrial drive series — a platform designed for demanding process applications including compressors, pumps, fans, hoists, and extruders. The gate driver board manages turn-on and turn-off timing with nanosecond-level precision, enforces dead-time control to prevent shoot-through, and provides galvanic isolation between the low-voltage control domain and the high-voltage power domain. These functions are not optional enhancements — they are fundamental to safe, efficient, and long-term inverter operation.

Within the ACS880 architecture, the AGDR-71C receives its switching commands from the AINT-02 or AINT-14 inverter control board, which itself interfaces with the drive’s main control unit — typically the ZCU-12 or ZCU-14 control unit running the DDCS (Distributed Drive Control System) communication protocol. This layered signal path ensures that every gate pulse is synchronized with the drive’s modulation strategy, whether operating in direct torque control (DTC) mode or scalar V/Hz mode. The integrity of this signal chain directly determines the quality of the motor output waveform, the efficiency of energy conversion, and the thermal loading of the IGBT module itself.

From a system architecture perspective, the gate driver board also plays a role in fault propagation and protection coordination. When the AGDR-71C detects an overcurrent condition, a desaturation event, or a supply voltage fault on the isolated gate drive power rail, it immediately blocks the gate signals and transmits a fault signal upstream to the inverter control board. This rapid fault response — typically within microseconds — prevents IGBT destruction and allows the drive’s main control unit to initiate a controlled shutdown sequence. In redundant or parallel inverter configurations, this fault isolation capability is essential for maintaining system availability and preventing cascading failures across multiple power modules.

The power supply architecture supporting the AGDR-71C is equally important to system reliability. The board requires isolated DC supplies for each gate drive channel, typically derived from the drive’s internal APOW-01 or APOW-02 power supply module. Maintaining stable, well-regulated gate drive voltages — typically +15 V for turn-on and −8 V or −15 V for turn-off — is critical for consistent switching behavior across the full operating temperature range. In high-ambient-temperature installations such as steel mills, cement plants, or offshore platforms, thermal management of both the IGBT module and the gate driver board must be addressed through proper heatsink sizing, forced-air or liquid cooling, and adequate derating.

For system integrators working with the ACS880 platform, the AGDR-71C also interacts with the drive’s I/O and feedback layer. Encoder feedback from the motor — processed through the FEN-01 or FEN-11 pulse encoder interface module — feeds into the speed and torque control loops managed by the ZCU control unit, which in turn adjusts the modulation commands sent to the AGDR-71C. This closed-loop architecture enables the precise speed regulation and dynamic torque response that process industries demand. Similarly, the drive’s fieldbus interface — whether FPBA-01 PROFIBUS adapter, FENA-21 EtherNet/IP adapter, or FDNA-01 DeviceNet adapter — connects the ACS880 to the plant-level SCADA or DCS system, enabling remote monitoring, parameter adjustment, and predictive maintenance data collection without interrupting production.

From a maintenance and lifecycle management perspective, the AGDR-71C’s modular design within the ACS880 frame allows for targeted replacement without disturbing the surrounding power stack. Field engineers can swap the gate driver board independently of the IGBT module, the DC bus capacitor bank, or the control unit — reducing mean time to repair (MTTR) and minimizing production downtime. This modularity is a deliberate architectural choice by ABB, reflecting the reality that different components have different service lives and failure modes. Capacitors degrade over time due to electrolytic aging; IGBT modules accumulate thermal cycling fatigue; gate driver boards may fail due to electrostatic discharge, moisture ingress, or component aging on the isolated power supply. Having a reliable supply of genuine replacement AGDR-71C boards — backed by a 12-Month Warranty — is therefore a core element of any serious spare parts strategy for ACS880-based installations.

In multi-drive installations — such as those found in paper mills, petrochemical complexes, or large water treatment facilities — maintaining a standardized spare parts inventory across all drive cabinets reduces the cognitive load on maintenance teams and simplifies procurement. The AGDR-71C’s compatibility across multiple ACS880 frame sizes and its Contextual Integration within the broader ABB drive ecosystem make it a logical choice for standardization. Engineers familiar with the board’s pinout, fault codes, and commissioning procedure can service any cabinet in the facility using the same knowledge base and the same replacement part.

Architecture Specification Table

Coordinated Control System Design

The AGDR-71C does not operate as a standalone device — its value is realized only within a fully coordinated drive system. In a typical ACS880 cabinet, the gate driver board sits at the intersection of the control layer and the power layer, receiving modulation commands from the AINT-02 inverter control board and delivering precisely timed gate pulses to the FS450R12KE3 IGBT module. Above the AINT board, the ZCU-14 main control unit executes the drive’s DTC algorithm and manages all closed-loop control functions. The ZCU communicates with plant systems via the FENA-21 EtherNet/IP adapter or FPBA-01 PROFIBUS adapter, enabling seamless integration into Siemens TIA Portal, Rockwell FactoryTalk, or ABB Ability™ SCADA environments.

Motor feedback is handled by the FEN-01 pulse encoder interface module, which provides speed and position data to the ZCU for closed-loop torque control. The drive’s auxiliary power is distributed by the APOW-01 power supply module, which generates the isolated DC rails required by the AGDR-71C’s gate drive channels. In cabinet-level installations, the AIMA-01 I/O extension module provides additional digital and analog I/O for process interlocks, temperature monitoring, and auxiliary equipment control. For applications requiring dynamic braking, the ABRU-0x braking unit connects to the DC bus and dissipates regenerative energy through an external resistor bank — a configuration commonly used in hoist, crane, and centrifuge applications. In multi-drive common DC bus architectures, the AGDR-71C’s fast fault isolation capability is particularly valuable, as it prevents a single inverter fault from propagating to adjacent drives sharing the same DC bus.

Application in Layered Automation Systems

The ABB FS450R12KE3 AGDR-71C Gate Driver Board finds application across a wide range of process industries where reliable, high-power motor control is essential. In petrochemical and refinery facilities, ACS880 drives equipped with AGDR-71C boards control large compressor trains and pump stations, where unplanned downtime carries significant safety and financial consequences. The board’s fast desaturation protection and fault isolation capability are critical in these environments, where a single drive fault must not cascade into a process shutdown.

In steel mills and metal processing plants, the AGDR-71C supports the high-dynamic torque demands of rolling mill drives, where rapid acceleration and deceleration cycles impose severe thermal stress on the IGBT switching stage. The board’s precise dead-time control minimizes switching losses and reduces IGBT junction temperature, extending module service life in these demanding duty cycles. In water and wastewater treatment facilities, ACS880 drives with AGDR-71C boards control large submersible pumps and blower motors, often in remote or unmanned installations where long MTTR is unacceptable — making the availability of genuine spare boards with a 12-Month Warranty a key procurement criterion.

In mining and mineral processing applications — including conveyor drives, ball mill drives, and slurry pump stations — the AGDR-71C’s robust isolation and protection architecture ensures reliable operation in high-vibration, high-dust environments. For packaging and material handling lines, the board’s compatibility with the ACS880’s multi-drive architecture enables synchronized multi-axis control across an entire production line, with each drive’s gate driver board contributing to the overall system’s motion coordination and energy efficiency.

Architecture Engineering FAQ

Q1: Is the AGDR-71C compatible with all ACS880 frame sizes, and can it be used as a direct replacement in existing installations?
The AGDR-71C is designed for use with the FS450R12KE3 IGBT module and is integrated into specific ACS880 frame sizes that use this power semiconductor. Before ordering a replacement board, engineers should verify the frame size, inverter module type, and existing gate driver board part number from the drive’s nameplate and documentation. In most cases, a genuine ABB AGDR-71C will be a direct drop-in replacement, requiring no firmware changes or parameter adjustments — the board’s hardware configuration is fixed by its design. All units supplied by ZYPLC are covered by a 12-Month Warranty and have been functionally tested prior to shipment.

Q2: What commissioning steps are required after replacing the AGDR-71C in an ACS880 drive?
After physically installing the replacement AGDR-71C and reconnecting all fiber optic and power supply connections, the drive should be powered up in a controlled manner with the motor disconnected if possible. Engineers should verify that the gate drive supply voltages are within specification using the drive’s diagnostic tools or an isolated oscilloscope. The drive’s fault log should be cleared, and a no-load test run should be performed to confirm that all six gate channels are switching correctly and that no desaturation or UVLO faults are present. Full-load commissioning should follow standard ACS880 startup procedures as documented in ABB’s hardware manual for the relevant frame size.

Q3: How does the 12-Month Warranty apply, and what support is available for long-term maintenance planning?
All AGDR-71C units supplied by ZYPLC carry a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. The warranty period begins from the date of shipment. For customers managing large fleets of ACS880 drives, ZYPLC recommends establishing a consignment stock arrangement to ensure immediate availability of critical spare boards without lead-time risk. Our technical team can assist with spare parts planning, cross-referencing, and compatibility verification for multi-site installations. Contact us at [email protected] or +86 19859288691 for volume pricing and long-term supply agreements.
