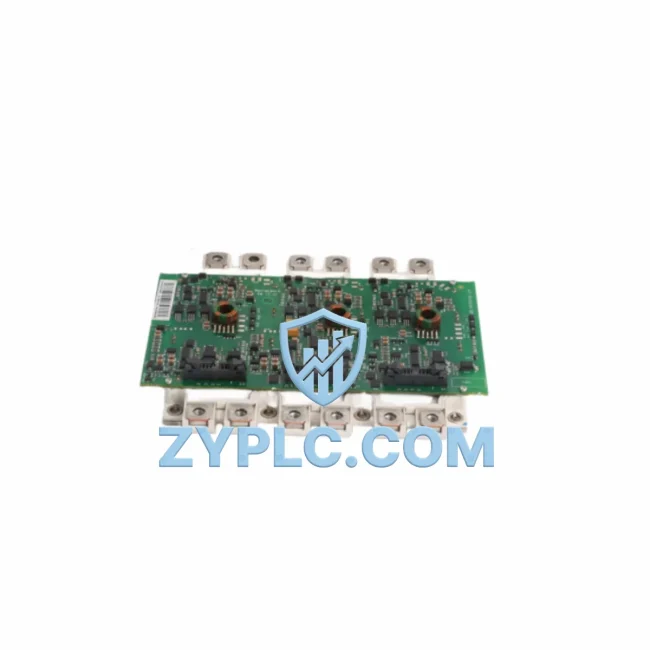

ABB FS450R12KE3/AGDR-71CS System-Ready Gate Driver for IGBT Inverter Architecture

ABB FS450R12KE3/AGDR-71CS System-Ready Gate Driver for IGBT Inverter Architecture

The ABB FS450R12KE3/AGDR-71CS represents a tightly integrated gate driver assembly engineered for deployment within high-power IGBT inverter architectures. Rather than functioning as a standalone component, this assembly is designed to operate as a precision interface layer between the control platform and the power conversion stage — bridging the logic-level command signals from the drive controller to the high-voltage switching events within the IGBT module. In modern industrial automation environments, where system uptime, signal fidelity, and thermal stability are non-negotiable, the FS450R12KE3/AGDR-71CS delivers the electrical isolation, switching accuracy, and fault-response capability required to sustain continuous operation across demanding duty cycles.

The FS450R12KE3 is a 1200V / 450A six-pack IGBT power module manufactured to Infineon’s high-reliability standard, while the AGDR-71CS is ABB’s dedicated gate driver board engineered specifically for this module family. Together, they form a matched gate driver assembly that eliminates the compatibility uncertainties associated with third-party driver substitutions. The AGDR-71CS provides galvanically isolated gate drive signals, integrated desaturation protection, active clamping, and fiber optic interface compatibility — all of which are critical for maintaining switching integrity in variable frequency drive (VFD) and regenerative converter topologies.

Architecture Specification Table

Coordinated Control System Design

The FS450R12KE3/AGDR-71CS assembly does not operate in isolation — its value is fully realized when integrated within a coherent, layered control architecture. In a typical ABB ACS880 or ACS580 variable frequency drive system, the control layer is managed by the RMIO-11C main control board, which generates the PWM command signals that are transmitted via the RDCO-03 fiber optic link board to the AGDR-71CS gate driver. This fiber optic interface eliminates ground loop interference and ensures signal integrity across the high-dV/dt environment of the power stage.

At the power conversion layer, the FS450R12KE3 IGBT module switches the DC bus voltage — typically supplied by a pre-charged capacitor bank using ABB-compatible DC bus capacitors — into the variable-frequency AC output delivered to the motor load. Adjacent to the FS450R12KE3, systems may also incorporate FS300R12KE3 or FS600R12KE3 modules in parallel or complementary phase-leg configurations, depending on the current rating requirements of the application.

For fault management and system diagnostics, the AGDR-71CS communicates desaturation and overcurrent fault signals back to the RMIO board, enabling the drive to execute a controlled shutdown sequence rather than an uncontrolled trip. This closed-loop fault architecture is essential in applications where abrupt motor disconnection could cause mechanical damage or process disruption. In redundant drive configurations, a standby AGDR-72C gate driver board may be pre-installed to enable rapid hot-swap replacement without full system shutdown.

At the human-machine interface layer, ABB CP600 series HMI panels or third-party SCADA systems connected via PROFIBUS or Modbus TCP provide operators with real-time visibility into drive status, gate driver fault codes, and thermal margin data. This integration ensures that maintenance personnel can identify gate driver degradation trends before they escalate into unplanned outages. The overall system architecture — from the AC500 PLC at the control layer, through the RMIO board, fiber optic links, AGDR-71CS gate driver, and FS450R12KE3 power module, down to the motor terminals — represents a fully coordinated signal and power flow chain where each component’s performance directly influences system reliability.

Application in Layered Automation Systems

The FS450R12KE3/AGDR-71CS assembly is deployed across a broad spectrum of industrial automation sectors where high-power motor control, energy conversion efficiency, and system uptime are primary engineering objectives.

In manufacturing and packaging production lines, this gate driver assembly is integrated into multi-axis drive systems controlling conveyor motors, press drives, and winding machines. The precise switching control provided by the AGDR-71CS ensures consistent torque delivery and minimizes harmonic distortion in the plant power distribution network.

In power generation and electrical utility applications, the FS450R12KE3/AGDR-71CS is used in grid-tied inverters, static VAR compensators (SVCs), and active front-end (AFE) rectifier stages. The desaturation protection and active clamping features of the AGDR-71CS are particularly critical in these environments, where a single uncontrolled IGBT failure can cascade into transformer or switchgear damage.

In petrochemical and oil & gas facilities, the assembly is deployed in variable speed pump and compressor drives operating in classified hazardous areas. The robust fault isolation architecture of the AGDR-71CS supports the stringent functional safety requirements of these installations, including SIL-rated shutdown sequences.

In water treatment and municipal infrastructure, the FS450R12KE3/AGDR-71CS supports energy-efficient pump control across water intake, filtration, and distribution systems. The 12-Month Warranty and global spare parts availability through ZYPLC ensure that municipal operators can maintain system continuity without extended lead times for replacement components.

In mining, metallurgy, and heavy industry, the assembly is integrated into high-inertia drive systems for ball mills, crushers, hoists, and rolling mill drives. The thermal robustness of the FS450R12KE3 module, combined with the AGDR-71CS’s active clamping capability, ensures reliable operation under the high peak-current demands characteristic of these applications.

Architecture Engineering FAQ

Q1: Is the AGDR-71CS gate driver board compatible with IGBT modules other than the FS450R12KE3?
The AGDR-71CS is specifically designed and factory-matched for the FS450R12KE3 six-pack IGBT module. While the electrical interface may share similarities with other modules in the same voltage class, ABB does not certify cross-module compatibility. Using the AGDR-71CS with an unvalidated IGBT module may result in incorrect gate timing, inadequate desaturation threshold calibration, or compromised fault response. For alternative module ratings, ABB offers the AGDR-72C and other series-specific gate driver variants. ZYPLC recommends always deploying the factory-matched assembly to maintain system integrity and preserve the 12-Month Warranty coverage.

Q2: What fiber optic interface boards are compatible with the AGDR-71CS in an ABB drive architecture?
The AGDR-71CS is designed to interface with ABB’s RDCO-03 fiber optic link board, which connects to the RMIO-11C main control board in ACS880 and compatible drive platforms. The fiber optic interface provides galvanic isolation between the control electronics and the power stage, which is essential for suppressing common-mode noise in high-dV/dt switching environments. Engineers integrating the AGDR-71CS into custom inverter designs should verify fiber optic wavelength, connector type, and signal protocol compatibility with their specific control platform before commissioning. ZYPLC’s technical team can provide application-specific compatibility guidance upon request.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance planning?
ZYPLC’s 12-Month Warranty covers the FS450R12KE3/AGDR-71CS assembly against manufacturing defects, premature component failure under normal operating conditions, and electrical parameter deviations from the published datasheet specifications. The warranty period begins from the date of shipment. For long-term maintenance planning, ZYPLC maintains buffer stock of the FS450R12KE3/AGDR-71CS assembly and related components — including RDCO-03 fiber optic boards, RMIO-11C control boards, and DC bus capacitor banks — to support rapid replacement in the event of unplanned failures. Customers operating critical infrastructure are encouraged to discuss consignment stock arrangements and extended support agreements with ZYPLC’s sales team.
