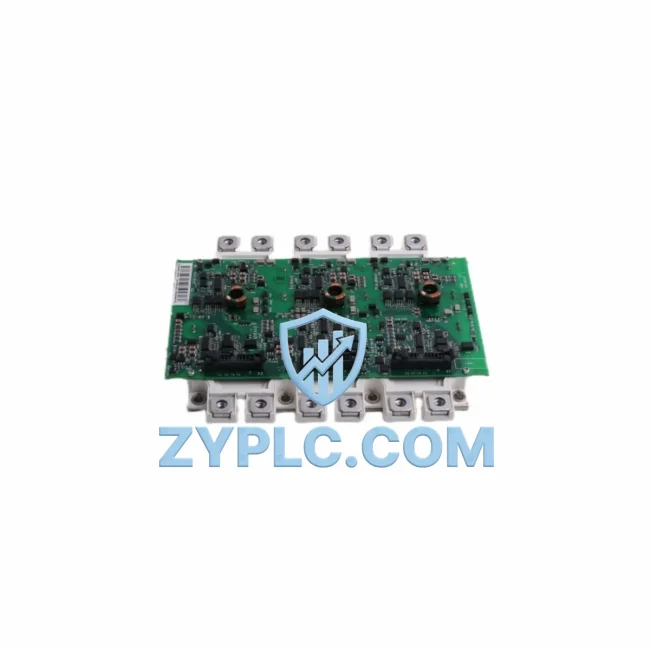

ABB FS450R17KE3/AGDR-72CS Energy-Saving IGBT Driver ACS

ABB FS450R17KE3/AGDR-72CS Energy-Saving IGBT Gate Driver for ACS Series Automation

The ABB FS450R17KE3/AGDR-72CS is a high-performance IGBT gate driver board engineered for precision motor control and measurable energy efficiency gains in demanding industrial environments. Designed to interface directly with ABB’s ACS series variable frequency drives — including the ACS800, ACS880, and ACS580 platforms — this gate driver module governs the switching behavior of high-power IGBT modules, directly influencing inverter efficiency, thermal management, and overall drive system energy consumption. In production lines where motor-driven loads account for 60–70% of total facility energy use, optimizing gate drive performance is one of the highest-leverage interventions available to plant engineers and energy managers.

At ZYPLC, every FS450R17KE3/AGDR-72CS unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty — giving procurement teams and maintenance engineers the confidence to deploy with minimal risk and maximum uptime assurance.

Efficiency Performance Table

Energy-Aware Automation Architecture

The FS450R17KE3/AGDR-72CS does not operate in isolation — it is a precision component within a tightly integrated energy control architecture. Understanding how it interacts with surrounding system components is essential for maximizing its efficiency contribution.

In a typical ACS880 multi-drive installation, the gate driver board sits between the drive’s control board and the IGBT power module stack. The ABB RDCU-02C control unit issues PWM commands that the AGDR-72CS translates into precise gate voltage pulses, controlling the turn-on and turn-off timing of the FS450R17KE3 IGBT module. Suboptimal gate drive timing — whether from a degraded or mismatched driver board — results in elevated switching losses, increased junction temperatures, and accelerated IGBT aging. Replacing a worn driver board with a correctly specified FS450R17KE3/AGDR-72CS unit can restore inverter efficiency to factory specification and reduce heat sink thermal load by a measurable margin.

On the energy monitoring side, the ABB RPBA-01 PROFIBUS adapter and RETA-01 Ethernet adapter modules enable real-time drive parameter telemetry — including output frequency, motor current, DC bus voltage, and calculated power consumption — to be streamed to a SCADA or energy management system. When paired with the ABB Panel Bus interface or an external power quality analyzer such as the ABB B23 energy meter, plant engineers gain a complete picture of per-drive energy consumption, enabling targeted optimization of motor loading profiles and identification of inefficient operating points.

For multi-axis systems, the ABB ACSM1 servo drive and ACS355 compact drive are frequently deployed alongside ACS800/ACS880 units in coordinated motion and process control applications. In these architectures, the gate driver’s role in maintaining clean, low-loss switching transitions is amplified — any degradation in one drive’s gate drive performance can introduce harmonic disturbances that affect neighboring drives on the same DC bus. The FS450R17KE3/AGDR-72CS, with its robust fault detection and desaturation protection circuitry, provides an additional layer of system-level protection that reduces the risk of cascading failures across the drive network.

I/O expansion modules such as the ABB AIAO-01 analog I/O extension board and FDIO-01 digital I/O module are commonly used in ACS880 installations to interface with field sensors, flow transmitters, and pressure transducers. These signals feed into the drive’s process PID controller, enabling closed-loop speed regulation that matches motor output precisely to process demand — a key mechanism for reducing energy waste in variable-load applications such as centrifugal pumps and fans. The gate driver’s ability to execute precise switching commands is what makes this closed-loop efficiency possible at the power stage level.

Power Optimization in Real Production Lines

In heavy industrial environments — steel processing, chemical manufacturing, water treatment, and automotive assembly — the FS450R17KE3/AGDR-72CS delivers its energy efficiency value through several interconnected mechanisms.

Reduced Switching Losses: The AGDR-72CS gate driver applies optimized gate resistor values and voltage levels tailored to the FS450R17KE3 IGBT module’s characteristics. This minimizes both turn-on and turn-off energy losses per switching cycle. At a switching frequency of 2 kHz and a load current of 300A, even a 10% reduction in switching loss energy translates to kilowatts of recovered power over a full production shift.

Thermal Load Reduction: Lower switching losses mean less heat generated in the IGBT module and heat sink assembly. This reduces the duty cycle of cooling fans and liquid cooling systems, delivering secondary energy savings and extending the service life of thermal management components. In facilities running multiple ACS800 or ACS880 drives in parallel, the cumulative thermal management savings can be substantial.

Elimination of Unplanned Downtime: The AGDR-72CS incorporates active fault detection — including IGBT desaturation detection, gate voltage monitoring, and short-circuit protection. These features prevent catastrophic IGBT failures that would otherwise result in unplanned production stoppages. In high-throughput manufacturing environments, a single unplanned drive failure can cost tens of thousands in lost production. Proactive replacement of aging gate driver boards — before fault conditions develop — is a core element of predictive maintenance strategies that protect both equipment and production schedules.

Optimized Production Line Throughput: By maintaining precise motor speed control across the full load range, the FS450R17KE3/AGDR-72CS supports consistent production line throughput (takt time). In conveyor, hoist, and winding applications, speed regulation accuracy directly affects product quality and cycle time consistency. A degraded gate driver that introduces timing jitter or asymmetric switching behavior can cause subtle speed variations that accumulate into measurable quality and throughput losses over a production run.

Inventory and Supply Assurance: ZYPLC maintains ready stock of the FS450R17KE3/AGDR-72CS to support both planned maintenance schedules and emergency replacement scenarios. All units undergo pre-shipment functional testing and are shipped with documentation supporting traceability. The 12-month warranty covers manufacturing defects and provides a clear remediation path in the event of early-life failures.

Energy Optimization FAQ

Q1: How does replacing the FS450R17KE3/AGDR-72CS gate driver board improve energy efficiency in my ACS800 or ACS880 drive?
A degraded gate driver board increases IGBT switching losses by delivering suboptimal gate voltage waveforms — slower rise times, incorrect gate resistor matching, or intermittent fault conditions. Replacing it with a correctly specified FS450R17KE3/AGDR-72CS restores the drive’s inverter efficiency to factory specification, reducing heat generation and lowering total energy consumption per operating hour. In high-duty-cycle applications such as pump and fan drives, this efficiency recovery is measurable on energy monitoring systems within days of replacement.

Q2: Is the FS450R17KE3/AGDR-72CS compatible with all ACS series drives, and what should I verify before installation?
The AGDR-72CS gate driver is specifically designed for use with the FS450R17KE3 IGBT module (1700V / 450A) as used in ABB ACS800 and ACS880 high-power drive configurations. Before installation, verify the drive’s power module type against the gate driver specification, confirm firmware compatibility with the drive’s RDCU or APBU control board, and ensure the replacement unit matches the original hardware revision. ZYPLC’s technical team can assist with compatibility verification prior to order confirmation.

Q3: What does the pre-shipment testing process cover, and what does the 12-month warranty include?
Every FS450R17KE3/AGDR-72CS unit shipped by ZYPLC undergoes functional verification including gate signal output testing, fault detection circuit validation, and visual inspection for physical defects. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside specified environmental parameters. Warranty claims are processed directly through ZYPLC with a target response time of 3 business days.

Q4: How should I approach predictive replacement of gate driver boards to minimize production disruption?
Industry best practice for high-power drive maintenance recommends proactive gate driver board inspection at 3–5 year intervals or following any IGBT overcurrent or short-circuit fault event. Key indicators of gate driver degradation include increased drive operating temperature, intermittent overcurrent faults without load-side cause, and reduced motor speed regulation accuracy. Maintaining one spare FS450R17KE3/AGDR-72CS unit per drive installation is a cost-effective insurance strategy that eliminates lead time risk in emergency replacement scenarios. ZYPLC supports both single-unit and multi-unit procurement to accommodate planned maintenance inventories.
