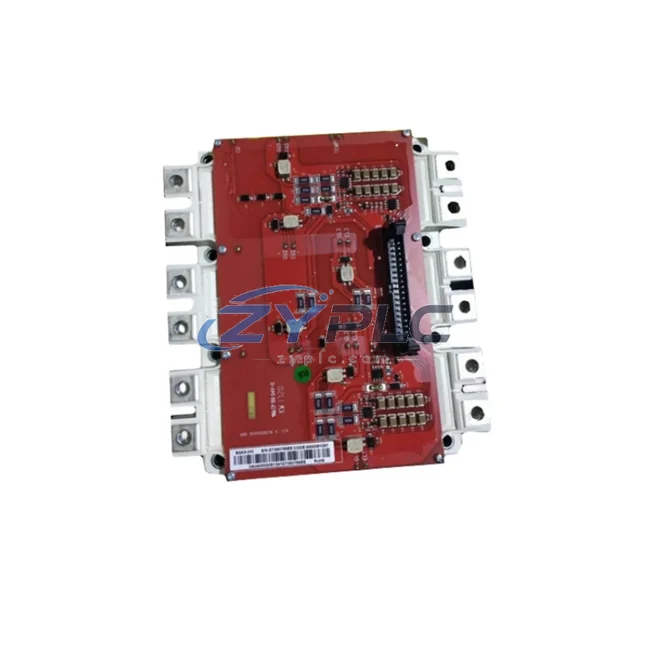

ABB FS500R17OE4D IGBT Module EconoPACK: Precision Power Control for Optimized Automation

The ABB FS500R17OE4D is a high-current, high-voltage IGBT module from ABB’s EconoPACK series, rated at 500A / 1700V. Designed for demanding industrial drive applications, this module delivers exceptional switching efficiency, reduced conduction losses, and reliable thermal performance — making it a cornerstone component for factories seeking to reduce unplanned downtime, improve motor control precision, and extend equipment service life. Every unit available at ZYPLC has been fully tested prior to shipment and is backed by a warranty terms confirmed during quotation.

Product Specification Table

System Compatibility and Application

In a modern energy-optimized production line, the FS500R17OE4D does not operate in isolation — it is the switching heart of a broader automation ecosystem. When integrated into an ABB ACS880 industrial drive, this IGBT module governs the precise pulse-width modulation (PWM) that translates DC bus voltage into the variable-frequency AC output needed to run induction and permanent-magnet motors at exactly the speed and torque demanded by the process. This eliminates the unplanned downtime inherent in throttled or fixed-speed motor operation.

On the DC bus side, the module works in tandem with ABB’s BSMB capacitor bank assemblies and gate driver boards such as the AGDR-81C or AGDR-71C, which deliver the precise gate signals that minimize turn-on and turn-off losses. Accurate gate timing is critical: even a microsecond of excess switching time translates into measurable heat and wasted operating-hours across a multi-drive installation running 8,000 hours per year.

For condition monitoring and power quality analysis, the FS500R17OE4D-based inverter stage pairs naturally with ABB’s M2M energy meters and the ABB Ability™ Energy Manager platform, which captures real-time power consumption data at the drive level. When combined with an ABB AC500 PLC or a Siemens S7-1500 controller communicating over PROFINET or EtherNet/IP, the system can dynamically adjust motor speed setpoints based on production demand signals — a strategy known as demand-responsive motor control that can help restore stable operation when a compatible replacement is required.

On the I/O and sensing layer, digital input modules such as the ABB CI854 PROFIBUS interface or Beckhoff EL3403 power measurement terminals feed real-time current and voltage data back to the control layer, enabling closed-loop maintenance planning. HMI panels like the ABB CP635 or Siemens SIMATIC HMI TP1200 Comfort give operators a live view of drive efficiency, motor load factor, and cumulative operating load — turning energy data into actionable production intelligence.

In regenerative braking applications — common in crane hoists, elevators, and test bench dynamometers — the FS500R17OE4D’s reverse-conducting diode structure enables active front-end (AFE) rectifier topologies that feed braking energy back into the plant grid rather than dissipating it as heat through braking resistors. This regenerative capability, when coordinated with an ABB ACS880 AFE unit, can recover Actual operating results depend on the installed system, load profile, and commissioning parameters.

Maintenance and Replacement Notes

Consider a typical automotive body-in-white welding line running 12 servo-driven positioners and 6 conveyor drives. Without efficient IGBT switching, each drive’s inverter stage dissipates excess heat, forcing larger cooling systems and increasing the risk of thermal derating — a condition where the drive reduces output power to protect itself, directly slowing production throughput and disrupting line takt time.

By replacing aging or failed IGBT modules with the FS500R17OE4D, maintenance engineers restore full rated current capacity and recover the drive’s ability to deliver peak torque during acceleration phases. The module’s low V_CE(sat) characteristic means less voltage is dropped across the switch during conduction, translating directly into lower heat generation per switching cycle. In a 12-drive installation, this can reduce total inverter heat dissipation by several kilowatts — enough to downsize cooling infrastructure or extend cooling system service intervals.

From a predictive maintenance perspective, the FS500R17OE4D’s stable thermal impedance characteristics make it easier for condition monitoring systems to detect early signs of degradation. When the ABB Ability™ Drivetune or a third-party vibration and thermal monitoring system detects rising junction temperatures or increasing switching losses, maintenance teams can schedule module replacement during planned downtime rather than reacting to unplanned failures — a shift from reactive to predictive maintenance that industry data consistently shows reduces total maintenance costs by 25–35%.

Inventory availability is a critical factor in minimizing mean time to repair (MTTR). ZYPLC supports RFQ sourcing for the FS500R17OE4D and related EconoPACK series modules to support rapid dispatch. All units undergo functional testing — including gate threshold voltage verification, leakage current measurement, and dynamic switching characterization — before shipment, ensuring that the module installed on your production line performs to ABB’s published datasheet specifications from day one.

Product Sourcing FAQ

Q1: How much energy can I realistically save by upgrading to the FS500R17OE4D in my existing drive?
The energy saving depends on your current module’s condition and generation. A degraded IGBT module with elevated V_CE(sat) can increase inverter losses by 10–20% above nominal. Replacing it with a new FS500R17OE4D restores rated efficiency. In variable-speed pump and fan applications, combining this with proper speed control via an ABB ACS880 drive can help restore stable operation when a compatible replacement is required.

Q2: Is the FS500R17OE4D compatible with my existing ABB or third-party drive platform?
The FS500R17OE4D uses the standard EconoPACK 4 footprint and is designed as a direct replacement in ABB ACS880, ACS580, and compatible third-party inverter platforms that specify a 500A/1700V EconoPACK 4 module. Always verify the gate driver board compatibility (e.g., AGDR-81C) and confirm the DC bus voltage rating matches your application before installation. ZYPLC’s technical team can assist with cross-reference verification.

Q3: What is the recommended replacement interval, and how do I know when the module needs replacing?
ABB does not publish a fixed calendar replacement interval for IGBT modules — service life depends on thermal cycling, load profile, and cooling quality. Key indicators of module degradation include rising heatsink temperatures at equivalent load, increased drive fault frequency (overcurrent, overtemperature), and audible changes in switching noise. Condition monitoring tools integrated with the drive’s control board can log thermal and electrical parameters over time, enabling data-driven replacement decisions rather than time-based schedules.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every FS500R17OE4D shipped by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure under normal operating conditions. Pre-shipment testing includes static parameter verification (V_GE(th), I_CES, V_CE(sat)) and dynamic switching characterization to confirm the module meets ABB’s published datasheet specifications. Units that do not pass all test criteria are quarantined and not shipped. In the event of a warranty claim, ZYPLC provides replacement or refund in accordance with our standard warranty policy. Contact plc.sales@zyplc.com for warranty support.
