ABB GDB021BE01 Energy-Saving Gate Control Unit for HIEE

ABB GDB021BE01 Energy-Saving Gate Control Unit for HIEE Automation

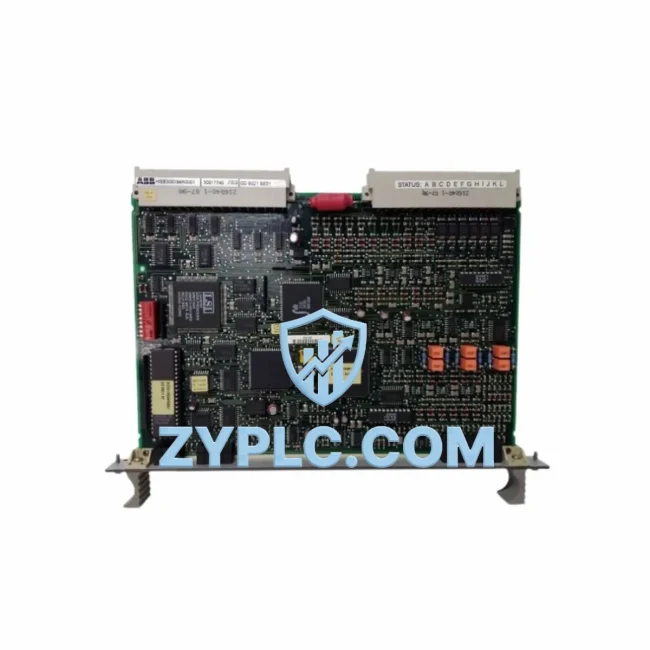

The ABB GDB021BE01 (HIEE300766R0001) is a precision gate control unit engineered for ABB’s HIEE-series drive platforms, delivering measurable improvements in switching efficiency, motor control accuracy, and overall energy utilization across demanding industrial production environments. By precisely regulating IGBT gate signals, this unit minimizes switching losses at the power stage level — one of the most impactful levers for reducing drive-level energy waste in continuous-duty motor applications.

In modern manufacturing facilities where variable-speed drives operate around the clock, even marginal improvements in gate drive timing translate directly into lower kWh consumption per production cycle. The GDB021BE01 is designed to work seamlessly within ABB’s ACS800 and ACS880 drive families, ensuring that the gate firing sequences remain synchronized with the drive’s internal control logic, reducing harmonic distortion and thermal stress on power semiconductors.

Efficiency Performance Table

Energy-Aware Automation Architecture

The GDB021BE01 does not operate in isolation — its energy optimization value is fully realized when integrated into a well-architected drive and control system. In a typical HIEE-based automation architecture, the gate control unit works in concert with the ABB ACS880 main drive unit, which handles the high-level speed and torque references passed down from the plant’s control layer. The drive’s RDCU-02C control board generates the PWM modulation signals that the GDB021BE01 translates into precise gate pulses for the IGBT power modules.

On the energy monitoring side, facilities running ABB drives often deploy the ABB PSTX soft starter or dedicated power quality analyzers such as the ABB M2M energy meter to capture real-time kWh data at the drive input. This data feeds into the plant’s energy management system, allowing engineers to correlate gate control performance with actual energy consumption trends. When the GDB021BE01 maintains optimal switching characteristics, the energy meter readings reflect lower reactive power demand and reduced harmonic content on the supply side.

For motion-critical applications — such as servo-driven assembly lines or CNC machining centers — the gate control unit’s precision becomes even more significant. In these environments, the ABB MicroFlex e190 servo drive and its associated BSM series servo motors depend on clean, low-jitter gate signals to maintain positioning accuracy without excess current draw. A degraded gate control board introduces timing errors that force the servo drive to compensate with higher current peaks, directly increasing energy consumption per cycle.

Communication and diagnostics are handled through the drive’s DDCS fiber optic link or PROFIBUS DP adapter (RPBA-01), which connects the drive system to the plant’s SCADA or DCS layer. Real-time fault data from the gate control unit — including over-temperature warnings and gate voltage anomalies — is transmitted upstream, enabling predictive maintenance workflows that prevent unplanned downtime. The ABB Panel Builder 800 HMI typically serves as the operator interface, displaying drive efficiency KPIs and energy consumption dashboards that help production managers identify optimization opportunities.

I/O expansion for multi-axis or multi-drive installations is commonly handled through the ABB CI854 PROFIBUS interface module or DSQC series I/O modules, which aggregate signals from multiple drive units into a unified control network. This architecture ensures that the energy savings achieved at the gate control level are visible and measurable across the entire production line, not just at the individual drive.

Power Optimization in Real Production Lines

In high-cycle manufacturing environments — automotive stamping, paper mills, chemical processing, and food & beverage bottling lines — the cumulative energy impact of gate control quality is substantial. A single ACS880 drive cabinet running a 200 kW pump motor at 80% load for 6,000 hours per year represents a significant energy cost center. When the GDB021BE01 maintains optimal IGBT switching, the reduction in switching losses alone can account for 1–3% of total drive energy consumption — a meaningful figure when multiplied across dozens of drive units in a large facility.

Beyond direct energy savings, the GDB021BE01 contributes to production line rhythm optimization by ensuring that motor speed responses remain consistent and predictable. Inconsistent gate firing — caused by a degraded or counterfeit gate control board — introduces micro-variations in motor torque output that disrupt conveyor synchronization, filling machine timing, and robotic arm coordination. By maintaining gate signal integrity, this unit helps production lines sustain their designed cycle times without the energy penalties associated with speed corrections and re-acceleration events.

Maintenance cost reduction is another key benefit. Because the GDB021BE01 is a field-replaceable unit within the HIEE drive cabinet, planned replacement during scheduled maintenance windows eliminates the risk of unplanned drive trips caused by gate drive failure. Each unit shipped by ZYPLC undergoes full functional testing — including gate voltage waveform verification and thermal cycling — before dispatch, ensuring that the replacement unit performs to ABB factory specifications from the first power-on. Combined with the 12-month warranty coverage, this gives maintenance engineers confidence in the reliability of the replacement and reduces the total cost of ownership for the drive system.

For facilities implementing ISO 50001 energy management systems, the measurable efficiency contribution of a properly functioning gate control unit supports the documentation requirements for energy performance improvement records. The GDB021BE01’s role in the drive’s energy conversion chain makes it a traceable component in the facility’s energy audit trail.

Energy Optimization FAQ

Q1: How does the GDB021BE01 contribute to measurable energy savings in my drive system?
The GDB021BE01 optimizes IGBT gate switching timing within the ABB HIEE drive platform, directly reducing switching losses in the power stage. In continuous-duty motor applications, this translates to lower heat generation, reduced cooling load, and improved overall drive efficiency — all of which contribute to lower energy consumption per operating hour.

Q2: Is the GDB021BE01 compatible with both ACS800 and ACS880 drive cabinets?
Yes. The GDB021BE01 / HIEE300766R0001 is designed for ABB’s HIEE-series drive architecture, which underpins both the ACS800 and ACS880 product families. Always verify the drive cabinet’s hardware revision and gate board slot specification against the HIEE300766R0001 part number before installation to confirm compatibility.

Q3: What is the recommended replacement procedure, and how does ZYPLC support the process?
Replacement should be performed during a planned maintenance window with the drive de-energized and DC bus fully discharged. ZYPLC supplies the GDB021BE01 pre-tested and ready for installation. Our technical team can provide the ABB service documentation reference and support remote commissioning verification upon request. All units are covered by a 12-month warranty from the date of shipment.

Q4: How does ZYPLC verify the unit before shipment?
Every GDB021BE01 unit undergoes a multi-stage outgoing quality inspection that includes gate voltage waveform testing, insulation resistance checks, and functional verification against ABB HIEE drive test bench parameters. Units that do not meet specification are quarantined and not shipped. This process ensures that the unit you receive is ready for immediate installation without additional bench testing on your end.
