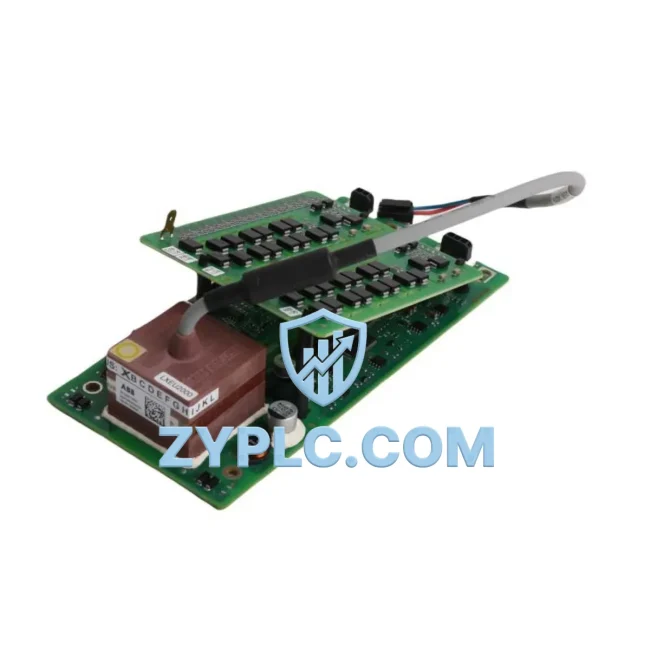

The ABB GDC806C0003 (3BHE044249R0003) is a precision-engineered Gate Driver Module designed for seamless Contextual Integration within ABB’s UNITROL excitation and power conversion control architecture. Rather than functioning as a standalone component, this module occupies a critical position in the layered automation hierarchy — bridging the control layer’s firing commands with the power semiconductor switching layer, ensuring signal fidelity, timing accuracy, and electrical isolation across the full system stack.

In modern industrial control systems, the gate driver is the final authority between a digital control command and a physical switching event. The GDC806C0003 fulfills this role with high-speed galvanic isolation, precise gate pulse shaping, and fault feedback loops that communicate directly with the CPU and supervisory modules above it. This bidirectional signal flow — from the control layer down to the IGBT or thyristor switching stage, and fault signals back up — is what makes the GDC806C0003 indispensable to system architects designing for reliability, redundancy, and long-term maintainability.

Within a complete UNITROL-based excitation system, the GDC806C0003 operates in close coordination with upstream and downstream components. The UNITROL 5000 or UNITROL 6800 excitation controller issues firing angle references and modulation commands that pass through the control backplane to the gate driver layer. The GDC806C0003 receives these signals, conditions them, and delivers precisely timed gate pulses to the power bridge — whether a thyristor rectifier bridge or an IGBT-based converter stage. Simultaneously, it monitors for overcurrent, desaturation, and short-circuit conditions, feeding fault status back to the supervisory CPU module (such as the PPD113 or PPD512 processor board) for immediate protective action.

Architecture Specification Table

Coordinated Control System Design

The GDC806C0003 achieves its full value only when considered within the broader UNITROL system architecture. A typical deployment integrates the following coordinated components:

At the control layer, the UNITROL 5000 or UNITROL 6800 excitation controller provides the AVR (Automatic Voltage Regulator) function, issuing firing angle references and closed-loop voltage regulation commands. These commands travel through the SDCS-CON-4 or equivalent control board, which handles the inner current loop and modulation logic before passing gate timing signals down to the GDC806C0003.

At the I/O and signal conditioning layer, modules such as the RDIO-01 or RAIO-03 digital and analog I/O boards collect field measurements — generator terminal voltage, field current, stator current — and feed them back to the control processor. The GDC806C0003 complements this layer by providing real-time fault status signals that the I/O layer aggregates for system-level diagnostics.

At the power layer, the GDC806C0003 interfaces directly with the thyristor rectifier bridge or IGBT converter module, delivering gate pulses with microsecond-level precision. In redundant excitation architectures, a secondary GDC806C0003 module — or a parallel GDC807-series driver — may be installed on a hot-standby power bridge, enabling bumpless transfer upon primary bridge fault detection.

The PPD113 or PPD512 processor board at the supervisory level monitors all gate driver fault outputs, coordinating with the UNITROL protection relay and the NXPP-01 fieldbus gateway for PROFIBUS or Modbus RTU communication to the plant DCS. This multi-layer coordination ensures that a gate driver fault triggers a controlled, sequenced protective response rather than an uncontrolled trip.

At the HMI layer, operators interact with the system through the UNITROL Panel or an integrated CP600-series HMI terminal, where gate driver status, fault history, and firing angle trends are displayed in real time. This visibility is essential for predictive maintenance scheduling and post-fault root cause analysis.

Application in Layered Automation Systems

Power Generation & Utilities: In synchronous generator excitation systems at hydroelectric, thermal, and gas turbine power plants, the GDC806C0003 controls the field current rectifier bridge with the precision required to maintain grid voltage stability. Its fault feedback architecture supports N+1 redundancy designs mandated by grid codes in China, Europe, and Southeast Asia.

Petrochemical & Refining: Large synchronous motors driving compressors and pumps in petrochemical plants rely on UNITROL-based excitation systems for soft-start and power factor correction. The GDC806C0003 ensures that gate firing remains stable under the variable load conditions typical of compressor surge cycles and pump cavitation events.

Metallurgy & Steel: Rolling mill drives and arc furnace power supplies demand gate drivers capable of operating reliably in high-EMI environments. The GDC806C0003’s galvanic isolation and shielded backplane interface make it well-suited for steel plant electrical rooms where conducted and radiated interference levels are extreme.

Mining & Mineral Processing: Winder drives, conveyor systems, and SAG mill motors in mining operations require excitation systems with high availability. The GDC806C0003 supports hot-standby redundancy configurations that minimize unplanned downtime in remote mine sites where spare parts logistics are challenging.

Water & Wastewater Treatment: Large pump station motors and blower drives in municipal water infrastructure benefit from the GDC806C0003’s stable gate control, which reduces harmonic distortion and extends power semiconductor service life — critical in facilities with limited maintenance windows.

Architecture Engineering FAQ

Q1: Is the GDC806C0003 compatible with both UNITROL 5000 and UNITROL 6800 excitation platforms?
The GDC806C0003 (3BHE044249R0003) is designed for the UNITROL excitation and power conversion product family. Compatibility with a specific UNITROL platform version depends on the backplane interface revision and firmware baseline of the host system. We recommend cross-referencing the module’s hardware revision against the UNITROL system’s BOM (Bill of Materials) or contacting our technical team with your system’s nameplate data for confirmation prior to ordering.

Q2: Can the GDC806C0003 be installed in a redundant gate driver configuration, and what is required for bumpless transfer?
Yes. In redundant excitation architectures, a secondary gate driver module can be installed on a parallel power bridge in hot-standby mode. Bumpless transfer requires that both gate driver channels are synchronized to the same firing angle reference from the control processor, and that the supervisory CPU (e.g., PPD113 or PPD512) is configured for automatic changeover upon primary fault detection. The specific changeover logic is defined in the UNITROL system’s protection parameter set and should be validated during commissioning.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims?
All GDC806C0003 modules supplied by ZYPLC carry a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to dispatch. In the event of a warranty claim, contact our support team at plc.sales@zyplc.com or +86 19859288691 with the module’s serial number and a description of the fault. We will arrange expedited replacement or repair to minimize system downtime.
