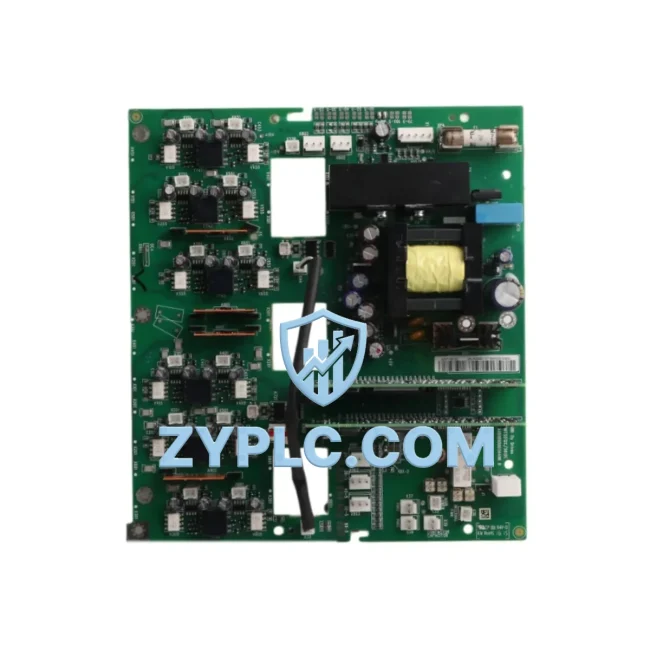

ABB GINT-6611C System-Ready Reversible Driver for ACS800-11 Architecture

ABB GINT-6611C System-Ready Reversible Driver for ACS800-11 Architecture

The ABB GINT-6611C is a reversible driver board engineered specifically for deployment within the ACS800-11 drive platform — one of ABB’s most widely adopted medium-voltage AC drive series in industrial automation. Rather than functioning as a standalone component, the GINT-6611C occupies a critical position within the layered control architecture of the ACS800-11, bridging the gate-level switching logic of the IGBT power stage with the higher-level command signals issued by the drive’s main control board. Its role is not merely electrical — it is architectural. The GINT-6611C ensures that firing pulses are delivered with the precision, timing integrity, and fault-response capability that modern industrial drive systems demand.

In a complete ACS800-11 drive system, the control hierarchy flows from the supervisory PLC or DCS layer — often an ABB AC500 series PLC or a third-party Siemens S7-300 controller — through the drive’s RMIO-11C main control board, down to the GINT-6611C driver board, and finally to the IGBT power modules in the inverter bridge. This signal chain must remain unbroken and latency-free under all operating conditions. The GINT-6611C is designed to maintain this chain integrity even under thermal stress, voltage transients, and rapid load cycling — conditions common in steel mills, cement plants, water treatment facilities, and offshore pump stations.

System engineers integrating the GINT-6611C into a new or refurbished ACS800-11 cabinet will find that it is fully compatible with the standard ACS800-11 backplane and mounting frame. The board interfaces directly with the AINT-02C or AINT-12C auxiliary interface boards, which manage the optical fiber communication links between the control section and the power section. This fiber-optic isolation architecture is a defining feature of the ACS800-11 platform, providing galvanic separation between the low-voltage control circuitry and the high-voltage power stage — a requirement in applications where EMI immunity and personnel safety are paramount.

Architecture Specification Table

Coordinated Control System Design

The GINT-6611C does not operate in isolation. Its performance is inseparable from the broader ACS800-11 system architecture, and understanding its role requires examining the full stack of coordinated components that surround it.

At the control layer, the RMIO-11C main control board serves as the brain of the ACS800-11 drive. It executes the DTC (Direct Torque Control) algorithm, processes speed and torque references from the supervisory system, and generates the modulation commands that are passed down to the GINT-6611C. The RMIO-11C communicates with the GINT-6611C via the AINT-02C auxiliary interface board, which converts electrical signals into optical pulses for noise-immune transmission across the isolation barrier. In redundant drive configurations, a secondary AINT-12C board may be installed to provide backup communication paths, ensuring that a single fiber failure does not interrupt drive operation.

The power supply architecture supporting the GINT-6611C is provided by the APOW-01C power supply board, which generates the regulated 24 VDC and auxiliary voltages required by the driver circuitry. Stable power delivery to the GINT-6611C is non-negotiable — voltage ripple or dropout events can cause spurious gate firing or protective shutdown, both of which are unacceptable in continuous-process industries. Engineers should verify APOW-01C output quality during commissioning and include it in scheduled preventive maintenance cycles.

On the I/O and signal conditioning layer, the ACS800-11 system typically incorporates RDIO-01C digital I/O extension boards and RAIO-01C analog I/O boards to interface with field sensors, actuators, and process transmitters. These boards feed real-time process data to the RMIO-11C, which in turn adjusts the torque and speed commands delivered through the GINT-6611C to the motor. In applications such as variable-speed pump control or conveyor tension regulation, the accuracy of this signal chain directly determines process quality.

For fieldbus connectivity, the ACS800-11 platform supports a range of communication adapter boards including the RPBA-01 PROFIBUS-DP adapter, RCAN-01 CANopen adapter, and REFI-01 EtherNet/IP adapter. These modules allow the drive to participate in plant-wide automation networks, receiving setpoints and returning status data to the supervisory PLC or SCADA system. The GINT-6611C’s role in this networked architecture is to faithfully execute the motor control commands that originate at the network layer — its timing precision directly affects the responsiveness of the closed-loop control system.

In multi-drive cabinet installations, the ACS800-11 units are often mounted alongside AGPS-11C gate power supply boards and share a common DC bus through ARBI-11C regenerative braking interface boards. The GINT-6611C must be compatible with the specific frame size and IGBT module type used in each cabinet section. Mismatched driver boards are a leading cause of IGBT failure during commissioning — always verify the exact GINT variant against the drive’s serial number and hardware revision documentation before installation.

Application in Layered Automation Systems

The GINT-6611C finds application across a broad spectrum of heavy industrial environments where the ACS800-11 drive platform is deployed as the primary motor control solution.

In steel and metals processing, ACS800-11 drives equipped with GINT-6611C boards control rolling mill main drives, coiler tension drives, and cooling table conveyors. The reversible driver capability is particularly valuable in these applications, where bidirectional torque control is required to manage strip tension during acceleration and deceleration phases. The 12-Month Warranty provides plant maintenance teams with the confidence to stock GINT-6611C boards as critical spares without concern about shelf-life degradation.

In water and wastewater treatment, ACS800-11 drives manage large centrifugal pumps and blower motors that must operate continuously with minimal downtime. The GINT-6611C’s robust isolation architecture protects the control electronics from the high-frequency switching noise generated by the IGBT power stage, extending the operational life of the control board assembly in humid, chemically aggressive environments. Contextual Integration support means that replacement boards can be installed and commissioned without requiring full drive parameter reconfiguration — a significant advantage in 24/7 operations.

In oil, gas, and petrochemical facilities, the ACS800-11 platform is used to drive compressors, extruders, and agitators in hazardous area applications. The GINT-6611C’s fiber-optic isolation architecture meets the electrical separation requirements of these environments, and its compatibility with the RMIO-11C’s functional safety extensions supports SIL-rated drive configurations where required by process safety management standards.

In mining and mineral processing, ACS800-11 drives with GINT-6611C boards control ball mill drives, crusher drives, and conveyor systems operating under extreme mechanical load variability. The reversible driver function enables regenerative braking on downhill conveyors, recovering energy that would otherwise be dissipated as heat — a meaningful contribution to energy efficiency in high-tonnage operations.

In packaging and material handling lines, the GINT-6611C supports high-cycle-rate applications where the drive must respond rapidly to speed and torque commands from the line PLC. The low-latency gate firing characteristic of the GINT-6611C contributes to the precise motion synchronization required in multi-axis packaging machinery.

Architecture Engineering FAQ

Q1: Is the GINT-6611C compatible with all ACS800-11 frame sizes, and how do I verify compatibility before installation?
The GINT-6611C is designed for specific frame sizes within the ACS800-11 series. Compatibility depends on the IGBT module type and the drive’s hardware revision. Before ordering, cross-reference the GINT-6611C part number against the drive’s type designation plate and the ABB ACS800-11 hardware manual (document code 3AFE68367883). If the drive has been previously repaired or upgraded, verify the current IGBT module type against the driver board specification. Our technical team can assist with compatibility verification based on the drive’s serial number.

Q2: Can the GINT-6611C be replaced in the field without reconfiguring the ACS800-11 drive parameters, and what is the recommended commissioning procedure?
Yes — the GINT-6611C supports Contextual Integration replacement, meaning that the drive’s parameter set, which is stored on the RMIO-11C control board and its associated memory module, is not affected by replacing the driver board. The recommended procedure is to power down the drive, discharge the DC bus to below 50 VDC (verified with a calibrated meter), remove the fiber-optic connections from the AINT-02C board, replace the GINT-6611C, reconnect the fiber links, and perform a gate test sequence using the ACS800-11 commissioning software (DriveWindow or Drive Composer) before returning the drive to service. The 12-Month Warranty covers the replacement board from the date of shipment.

Q3: What does the 12-Month Warranty cover for the GINT-6611C, and what support is available for long-term spare parts management?
The 12-Month Warranty covers manufacturing defects, component failure under normal operating conditions, and functional non-conformance to the ABB GINT-6611C specification. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental limits. For long-term spare parts management, we recommend maintaining a minimum of one GINT-6611C board per ACS800-11 drive in critical applications, with a replenishment lead time of 2–4 weeks for standard stock items. Contact our technical sales team at plc.sales@zyplc.com or +86 19859288691 for volume pricing and consignment stock arrangements.
