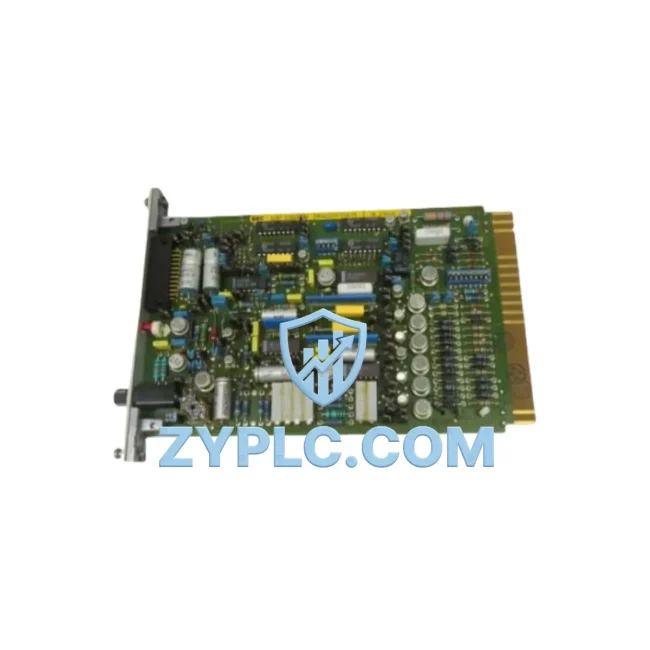

ABB HE667102-318 System-Ready Angle Transducer for AC800M Architecture

ABB HE667102-318 System-Ready Angle Transducer for AC800M Architecture: Control System Architecture and Upstream-Downstream Coordination

The ABB HE667102-318 Angle Measure Transducer Module is a precision signal conditioning component purpose-built for integration within ABB’s AC800M distributed control system architecture. Rather than functioning as a standalone measurement device, the HE667102-318 occupies a critical position within the layered automation hierarchy — bridging the physical process layer and the controller logic layer with high-fidelity angular position data. In complex industrial environments such as power generation, petrochemical processing, metallurgical operations, and water treatment facilities, accurate angular measurement is foundational to closed-loop control integrity. This module ensures that the AC800M controller receives clean, conditioned, and contextually meaningful signals that drive reliable process decisions across the entire control architecture.

Within a fully realized AC800M control system, the HE667102-318 operates in close coordination with the PM866 or PM891 processor modules, which serve as the central intelligence of the control platform. The processor modules rely on accurate transducer inputs to execute PID loops, sequence logic, and safety interlocks. The HE667102-318 feeds angular position data through the S800 I/O subsystem — including modules such as the AI810 analog input module and the AO810 analog output module — ensuring that signal flow from the field device to the controller is both electrically stable and architecturally consistent. This tight integration eliminates signal ambiguity and reduces the risk of process deviations caused by measurement noise or signal drift.

At the network and communication layer, the AC800M platform leverages PROFIBUS DP and Modbus TCP protocols to interconnect field devices, remote I/O stations, and supervisory systems. The HE667102-318 is designed to operate within this communication framework, supporting seamless data exchange between the transducer signal chain and the controller’s process database. When paired with the CI854 PROFIBUS communication interface or the CI857 HART communication interface, the module enables full diagnostic transparency — allowing maintenance engineers to monitor signal quality, detect wiring faults, and perform calibration verification without interrupting production. This level of Contextual Integration is essential for modern industrial facilities that demand continuous uptime and predictive maintenance capability.

Power supply architecture is another dimension where the HE667102-318 demonstrates its system-level value. The module is designed to operate within the voltage and current budgets defined by the AC800M cabinet design, typically powered through the SD821 or SD822 power supply units. Proper power distribution across the I/O rack — including the TB820 media redundancy switch and associated backplane assemblies — ensures that the transducer module receives stable excitation voltage, which is critical for maintaining measurement accuracy across wide ambient temperature ranges. In redundant power configurations, the HE667102-318 continues to deliver uninterrupted signal output even during power supply switchover events, supporting the high-availability requirements of continuous process industries.

From a human-machine interface perspective, the angular position data captured by the HE667102-318 is surfaced through ABB’s 800xA System or compatible SCADA platforms, where operators can monitor real-time process values, configure alarm thresholds, and review historical trends. The integration between the transducer module and the HMI layer is facilitated by the AC800M’s structured data model, which maps physical I/O signals to process tags with full engineering unit conversion and scaling. This end-to-end data visibility — from the field device through the controller to the operator interface — is the hallmark of a well-architected industrial control system, and the HE667102-318 is a key enabler of this architecture.

In terms of modular expansion and system scalability, the HE667102-318 supports the AC800M’s philosophy of incremental architecture growth. As production lines expand or process requirements evolve, additional I/O modules and transducer channels can be added to the existing rack infrastructure without requiring controller replacement or significant rewiring. This modularity reduces capital expenditure for system upgrades and shortens commissioning timelines, making the HE667102-318 a long-term asset in the control system inventory. Its compatibility with the S800 I/O family — including the DP820 PROFIBUS interface module and the FI830 fieldbus interface — ensures that future expansion projects can leverage existing infrastructure investments.

Architecture Specification Table

Coordinated Control System Design

The HE667102-318 achieves its full architectural value when deployed alongside complementary components within the AC800M ecosystem. The PM866 processor module serves as the primary controller, executing the logic that consumes angular position data from the HE667102-318 and translating it into control outputs. The AI810 analog input module and AO810 analog output module handle adjacent signal channels within the same I/O rack, ensuring consistent signal conditioning standards across all measurement points. For communication redundancy, the CI854 PROFIBUS DP communication interface provides a dedicated fieldbus pathway that isolates transducer data traffic from other network segments, reducing latency and improving determinism.

In cabinet-level design, the SD822 power supply unit provides regulated DC power to the I/O rack, while the TB820 media redundancy switch ensures network continuity in ring topology configurations. The DP820 PROFIBUS interface module extends the I/O network to remote field stations, allowing the HE667102-318 to be deployed in distributed architectures where the measurement point is physically distant from the main control cabinet. For applications requiring safety-rated control, the HE667102-318 can be integrated into architectures that include ABB’s AC800M High Integrity controller, providing SIL-rated signal processing for critical process variables. Terminal modules and marshalling panels complete the installation, providing organized wiring infrastructure that simplifies commissioning and long-term maintenance.

Application in Layered Automation Systems

The HE667102-318 finds application across a broad spectrum of industrial sectors where angular position measurement is integral to process control. In power generation facilities — including thermal, hydro, and wind power plants — the module monitors turbine blade angles, valve positions, and generator rotor alignment, providing the AC800M controller with the data needed to optimize energy output and protect rotating machinery. In petrochemical and refinery environments, angular transducers track control valve positions in distillation columns, reactor feed systems, and pipeline isolation assemblies, where precise position feedback is essential for maintaining process safety and product quality.

In water treatment and municipal infrastructure applications, the HE667102-318 monitors pump impeller angles and gate valve positions in filtration and distribution systems, enabling the AC800M to implement flow control strategies that minimize energy consumption while maintaining regulatory compliance. In metallurgical and mining operations, the module tracks the angular position of conveyor drive systems, crusher feed gates, and furnace tilt mechanisms, where measurement accuracy directly impacts throughput and equipment longevity. In packaging and discrete manufacturing lines, the HE667102-318 provides angular feedback for rotary indexing tables, filling head assemblies, and label applicator mechanisms, supporting high-speed production with consistent positional accuracy.

Architecture Engineering FAQ

Q1: Is the HE667102-318 compatible with both the AC800M standard and High Integrity controller variants?
The HE667102-318 is designed for integration within the AC800M platform and is compatible with the standard PM866 and PM891 processor modules. For High Integrity (HI) applications requiring SIL certification, compatibility should be verified against the specific HI controller configuration and the applicable functional safety documentation. Our technical team can assist with architecture validation prior to procurement.

Q2: What commissioning steps are required to integrate the HE667102-318 into an existing AC800M system?
Integration typically involves physical installation into the S800 I/O rack, configuration of the module address within Control Builder M, signal scaling and engineering unit assignment, and loop verification against the field device. The module’s plug-and-play compatibility with the AC800M backplane minimizes commissioning time, and our team provides technical documentation support to facilitate smooth startup. All modules supplied under our 12-Month Warranty are tested prior to dispatch to confirm functional integrity.

Q3: What does the 12-Month Warranty cover, and how is a warranty claim processed?
The 12-Month Warranty covers manufacturing defects, component failure under normal operating conditions, and functional non-conformance to published specifications. Warranty claims are initiated by contacting our technical support team with the module serial number, purchase documentation, and a description of the observed fault. Replacement or repair is coordinated within agreed lead times to minimize impact on production continuity. Extended warranty and spare parts stocking programs are available for customers with long-term maintenance contracts.
