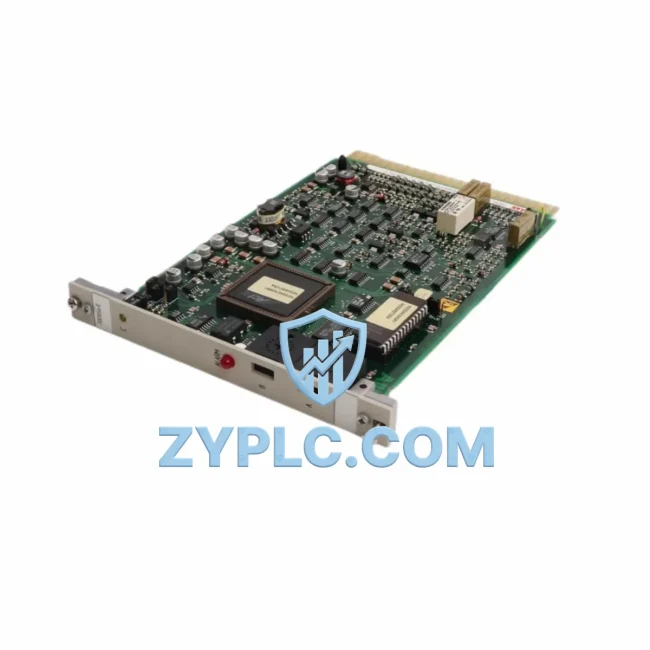

The ABB HESG447427R1 (also referenced as HE666455-318/25, 70EI05A-E) is a precision speed sensor module engineered for high-efficiency industrial drive systems. Designed to integrate seamlessly into ABB’s drive and motor control architecture, this module delivers accurate rotational feedback that enables variable frequency drives (VFDs) and servo controllers to operate at optimal energy consumption levels — eliminating unnecessary motor overrun, reducing reactive power losses, and tightening production line cycle times.

In modern manufacturing environments where energy cost per production unit is under constant scrutiny, the HESG447427R1 plays a critical role in closing the feedback loop between mechanical output and electrical input. By providing real-time speed data to the control layer, it allows the drive system to dynamically adjust output frequency and torque, preventing the energy waste associated with fixed-speed motor operation. Facilities that have integrated this sensor into their ABB ACS880 or ACS580 variable frequency drive platforms report measurable reductions in motor energy draw during partial-load cycles — a common inefficiency in conveyor, pump, and compressor applications.

Efficiency Performance Table

Energy-Aware Automation Architecture

The HESG447427R1 is most effective when deployed as part of a coordinated energy-aware automation architecture. In a typical ABB-based drive system, the sensor feeds rotational speed data back to the ABB ACS880 industrial drive, which uses this signal to execute precise vector control algorithms. This eliminates the energy penalty of open-loop V/Hz control, where motors routinely consume 15–30% more power than necessary under variable load conditions.

At the PLC layer, an ABB AC500 programmable logic controller processes production line throughput data and issues speed setpoints to the drive via PROFIBUS-DP or EtherNet/IP communication modules. The HESG447427R1 closes this control loop by confirming actual shaft speed, allowing the AC500 to detect slip, overload, or mechanical drag before they escalate into unplanned downtime events. Paired with an ABB CP600 HMI panel, operators gain real-time visibility into drive efficiency metrics, motor load curves, and energy consumption trends — all on a single operator interface.

For power quality monitoring, the HESG447427R1 integrates naturally with ABB’s M2M energy metering modules and the ABB Ability™ Energy Manager platform, enabling per-machine energy consumption tracking at the drive level. When combined with ABB RETA-02 Ethernet adapter modules for remote diagnostics, maintenance teams can monitor speed feedback signal integrity without physical access to the control cabinet — reducing inspection labor and enabling predictive maintenance scheduling.

On the I/O side, ABB TU505 terminal units and CI501 PROFIBUS communication interface modules provide the signal routing infrastructure that connects the HESG447427R1’s feedback output to the broader control network. In multi-axis servo applications, the speed sensor data complements ABB MicroFlex e150 servo drives, ensuring coordinated motion profiles that minimize energy spikes during acceleration and deceleration phases — a key factor in reducing peak demand charges on industrial electricity tariffs.

Power Optimization in Real Production Lines

Consider a bottling line running three-phase induction motors on conveyor and filling station drives. Without closed-loop speed feedback, the drives operate on fixed frequency settings, consuming full rated power regardless of actual line throughput. By integrating the HESG447427R1 into each drive’s encoder input, the ABB ACS580 can reduce output frequency during low-demand periods — such as product changeovers or upstream buffer accumulation — cutting motor energy consumption by 20–40% during those intervals.

In pump and HVAC applications, the speed sensor enables the drive to implement a true PID control loop against process variables such as flow rate or pressure, replacing throttling valves and dampers that waste energy through mechanical restriction. A single pump motor running at 80% speed via VFD control consumes approximately 51% of the energy required at full speed — a saving that compounds across multiple motors in a facility.

The HESG447427R1 also contributes directly to predictive maintenance programs. Abnormal speed feedback patterns — such as irregular pulse intervals or signal dropout — are early indicators of bearing wear, coupling misalignment, or encoder contamination. Detecting these conditions through the drive’s diagnostic layer, rather than waiting for a motor trip, allows maintenance to be scheduled during planned downtime windows, avoiding the far greater cost of emergency repairs and lost production.

Every HESG447427R1 unit shipped from ZYPLC inventory undergoes functional testing prior to dispatch, verifying signal output integrity and connector condition. Stock is maintained for immediate shipment, supporting urgent MRO (maintenance, repair, and operations) procurement needs where production continuity depends on fast component replacement. All units are covered by a 12-month warranty from the date of shipment.

Energy Optimization FAQ

Q1: How does the HESG447427R1 contribute to measurable energy savings in a drive system?
The sensor provides accurate real-time speed feedback that enables the connected VFD — such as the ABB ACS880 or ACS580 — to execute closed-loop vector control. This eliminates the excess energy consumption inherent in open-loop drive operation, particularly during partial-load cycles. The result is a drive system that delivers only the mechanical power the process actually requires, reducing kWh consumption and lowering electricity costs.

Q2: Which ABB drive platforms and control systems is the HESG447427R1 compatible with?
The HESG447427R1 is designed for use within ABB’s HESG/HE series drive feedback architecture and is compatible with ABB ACS880, ACS580, ACS355, and DCS880 drive platforms. It interfaces with ABB AC500 PLC systems via standard encoder input modules and supports communication over PROFIBUS-DP and EtherNet/IP networks through appropriate adapter modules.

Q3: Can the HESG447427R1 replace an existing speed sensor without reconfiguring the drive?
In most cases, yes. The HESG447427R1 is a direct replacement for compatible ABB HESG/HE series speed sensor modules. Drive parameter settings related to encoder pulse count and signal type should be verified against the existing configuration before installation. ZYPLC’s technical team can assist with cross-referencing the replacement part against your current drive setup.

Q4: What testing and warranty coverage is provided with each unit?
Every HESG447427R1 unit is functionally tested before shipment to verify signal output and connector integrity. All units are covered by a 12-month warranty from the date of shipment. In the event of a warranty claim, ZYPLC provides replacement or repair support. Contact our team at [email protected] or +86 19859288691 for warranty service inquiries.
