ABB HIEE300890R0001 Binary Input Module

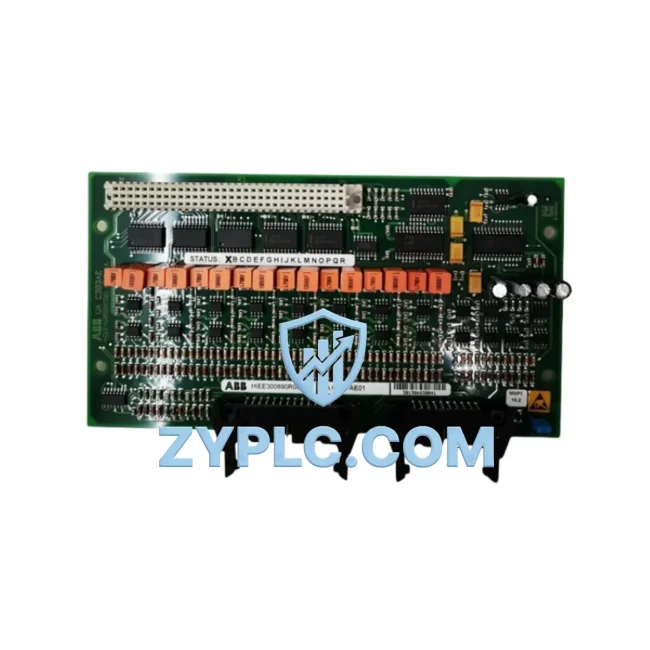

ABB HIEE300890R0001 Binary Input Module for Advant OCS Automation

The ABB HIEE300890R0001 UAC383AE101 is a high-efficiency binary input module engineered for the ABB Advant OCS distributed control system (DCS). Designed to deliver precise digital signal acquisition with minimal power overhead, this module plays a critical role in reducing unplanned downtime risk at the field I/O layer — one of the most overlooked sources of inefficiency in large-scale industrial automation architectures.

In modern manufacturing and process plants, unplanned downtime rarely originates from a single source. It accumulates across hundreds of I/O scan cycles, redundant signal polling, and poorly timed control responses. The HIEE300890R0001 addresses this by providing reliable, low-latency binary input acquisition that feeds accurate real-time data into the Advant OCS controller, enabling tighter closed-loop control, faster fault detection, and more responsive maintenance planning strategies.

Product Specification Table

System Compatibility and Application

The HIEE300890R0001 binary input module operates as a foundational sensing layer within the ABB Advant OCS control hierarchy. When integrated with the ABB AC450 Advant Controller, it enables deterministic scan cycles that eliminate unnecessary CPU load and reduce the energy footprint of the control system as a whole. The module communicates over the MasterBus 300 fieldbus, a protocol optimized for high-speed, low-overhead data exchange between I/O modules and the central processing unit.

In a typical energy-optimized plant architecture, the HIEE300890R0001 works alongside analog input modules such as the ABB HIEE300888R0001 UAC383AE to provide a complete picture of both digital states and process variables. This combined signal set feeds into the Advant OCS engineering workstation, where operators can configure operational-efficiency control strategies — such as load shedding, motor start sequencing, and demand-based ventilation control.

On the drive side, the binary input signals captured by this module are frequently used to command ABB ACS800 series variable frequency drives (VFDs), enabling precise motor speed regulation based on actual process demand rather than fixed setpoints. This alone can help restore stable operation when a compatible replacement is required. Similarly, integration with ABB ACS550 drives in auxiliary systems allows the control system to dynamically adjust compressor and conveyor speeds in response to real-time binary feedback from limit switches, pressure switches, and flow sensors.

For power monitoring, the HIEE300890R0001 can be paired with ABB M2M energy meters or ABB B23 power analyzers to create a closed-loop energy feedback system. Binary status signals — such as breaker open/close states, motor run/stop confirmations, and fault relay outputs — are captured by this module and used to trigger automated maintenance planning routines within the Advant OCS logic engine.

On the human-machine interface layer, operators using ABB Operate IT or compatible HMI panels can visualize the binary input states in real time, enabling rapid identification of equipment running outside its intended duty cycle. This visibility is essential for reducing idle-state operating load — a common issue in batch manufacturing and discrete assembly lines.

The module also supports integration with ABB S800 I/O expansion systems and can be used alongside ABB HIEE300024R0001 communication interface modules to extend the control network across geographically distributed plant sections without sacrificing signal integrity or increasing network latency.

Maintenance and Replacement Notes

In process industries such as pulp and paper, water treatment, and petrochemical refining, the ability to accurately capture binary field signals — valve positions, pump states, interlock conditions — is directly linked to energy efficiency. A missed or delayed binary input can cause a control loop to remain in an energy-intensive fallback state for minutes or hours, wasting significant power and accelerating equipment wear.

The HIEE300890R0001 eliminates this risk by providing high-reliability binary signal acquisition with built-in diagnostics. When a field device changes state — for example, when a motor reaches full speed or a valve reaches its end position — the module captures this transition immediately and updates the Advant OCS controller. This allows the control system to advance the production sequence without unnecessary delays, improving line throughput and reducing the energy cost per unit of output.

In motor control applications, accurate binary feedback from motor contactors and thermal overload relays allows the Advant OCS system to implement intelligent restart logic, preventing energy-wasting repeated start attempts on faulted motors. Combined with predictive maintenance data from vibration sensors and temperature transmitters, the system can schedule maintenance during planned downtime rather than reacting to unexpected failures — reducing both unplanned downtime and production losses.

For plants operating multiple production shifts, the binary input data collected by the HIEE300890R0001 can be logged and analyzed to identify patterns of energy inefficiency — such as equipment left running during shift changeovers or auxiliary systems operating at full capacity during low-demand periods. This data-driven approach to maintenance planning is increasingly required by industrial energy audits and ISO 50001 compliance programs.

Every unit supplied by ZYPLC undergoes full functional testing prior to shipment, including binary input channel verification, communication integrity checks, and power consumption validation. This ensures that the module performs to ABB’s original specifications from day one, avoiding the hidden energy costs associated with degraded or intermittently faulty I/O hardware.

Product Sourcing FAQ

Q1: How does the HIEE300890R0001 contribute to plant operational stability?
By providing accurate, low-latency binary input data to the Advant OCS controller, this module enables tighter control loop performance, faster equipment sequencing, and more responsive load management — all of which reduce unplanned downtime in motor, drive, and process control applications.

Q2: Is the HIEE300890R0001 compatible with other ABB Advant OCS modules and controllers?
Yes. The module is designed for the ABB Advant OCS platform and is compatible with the AC450 and AC410 controllers, MasterBus 300 communication infrastructure, and the full range of Advant I/O modules. It can be integrated into existing Advant OCS cabinets without hardware modification.

Q3: Can this module be used as a direct replacement for a failed binary input module in an existing installation?
Yes. The HIEE300890R0001 UAC383AE101 is a direct replacement for the same part number in any Advant OCS installation. ZYPLC recommends verifying the firmware revision of the target system before installation. All units are tested and shipped with configuration documentation upon request.

Q4: What does the warranty and condition confirmed before quote cover, and what is the testing process?
Every HIEE300890R0001 unit sold by ZYPLC is tested for full functional performance before shipment, including channel-by-channel binary input verification and communication bus integrity. The warranty and condition confirmed before quote covers manufacturing defects and functional failures under normal operating conditions. Expedited replacement is available for critical production applications.
