ABB HIEE300927R0001 Control Board for ACS DCS

ABB HIEE300927R0001 Control Board for ACS DCS Automation

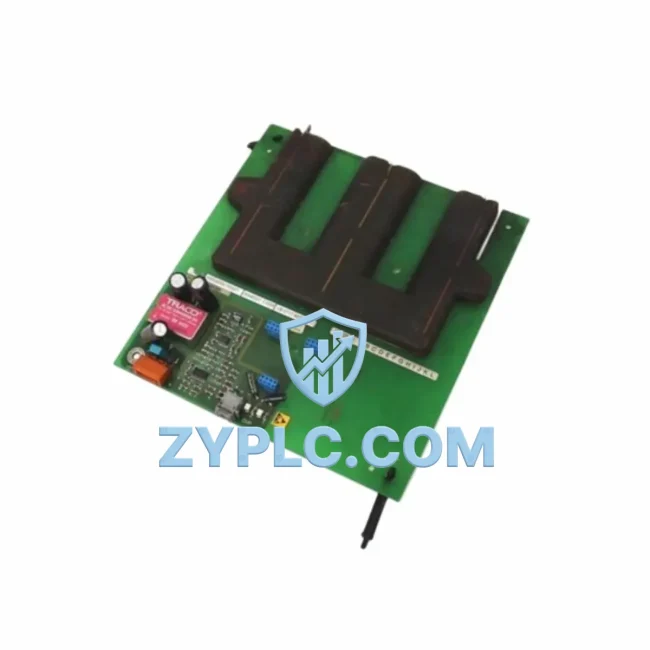

The ABB HIEE300927R0001 UBC717AE01 is a high-performance control board engineered for ABB’s ACS and DCS drive platforms, delivering precise motor control, reduced operating load, and reliable automation continuity across demanding industrial environments. Designed to serve as the intelligence core of variable-speed drive systems, this board directly governs switching frequency, torque regulation, and flux optimization — the three pillars of measurable operational stability on the production floor.

In modern smart factories, unplanned downtime is rarely caused by a single component failure. It accumulates through inefficient motor ramp profiles, unregulated torque demand, and poor feedback loop calibration. The HIEE300927R0001 UBC717AE01 addresses these root causes by providing the drive’s central processing unit with accurate real-time data on motor load, thermal state, and speed deviation — enabling the ACS drive to continuously adjust output and eliminate unnecessary power draw.

Product Specification Table

System Compatibility and Application

The HIEE300927R0001 UBC717AE01 sits at the center of an maintenance-focused drive architecture. In a typical ACS800 variable-frequency drive installation, this control board receives speed and torque references from the upstream ABB AC500 PLC via the DDCS fiber-optic link, translating high-level automation commands into precise IGBT gate signals that minimize switching losses and reactive power generation.

On the motor side, the board interfaces with the ABB RMIO-02C motor control board and the RINT-5514C rectifier control board, forming a closed-loop regulation chain that continuously monitors DC bus voltage, motor current harmonics, and thermal margins. When the system detects a deviation from the optimal operating point — such as a sudden load spike on a conveyor or a speed drop on a centrifugal pump — the HIEE300927R0001 adjusts the modulation index within microseconds, preventing unplanned downtime from uncontrolled motor slip.

For multi-drive installations, the board communicates with the ABB RDCO-02C DDCS communication module, enabling coordinated maintenance planning across multiple ACS800 or DCS800 units on the same production line. This is particularly valuable in paper mills, steel rolling lines, and chemical process plants where synchronized drive operation directly impacts total operating load per production unit.

Integration with the ABB Panel Builder 800 HMI and ABB 800xA DCS allows plant operators to visualize real-time energy KPIs — including kWh per cycle, motor efficiency percentage, and harmonic distortion index — directly on the control room screen. The HIEE300927R0001 feeds this data stream through the drive’s fieldbus interface, supporting PROFIBUS DP via the RPBA-01 PROFIBUS adapter or Modbus RTU via the RMBA-01 Modbus adapter.

On the power supply side, the board operates in conjunction with the ABB APOW-01 auxiliary power supply board, ensuring stable 24 VDC logic power even during main supply fluctuations — a critical requirement for uninterrupted condition monitoring and fault-free drive restarts after grid disturbances.

Maintenance and Replacement Notes

In real production environments, the HIEE300927R0001 UBC717AE01 delivers operational stability through three primary mechanisms: load-adaptive speed control, regenerative braking coordination, and predictive thermal management.

Load-Adaptive Speed Control: Rather than running motors at fixed speed regardless of demand, the control board enables the ACS drive to continuously match motor output to actual process load. On a variable-torque application such as a centrifugal pump or fan, reducing motor speed by just 20% can cut operating load by nearly 50% — a direct result of the cubic relationship between speed and power in fluid dynamics. The HIEE300927R0001 makes this possible by maintaining stable flux vector control across the full speed range, from near-zero to rated speed, without torque ripple or instability.

Regenerative Braking Coordination: In applications with frequent deceleration cycles — such as hoists, cranes, or test bench drives — the board coordinates with the drive’s braking chopper or active front-end unit to recover kinetic energy and feed it back to the DC bus or the supply grid. This regenerative capability, managed by the HIEE300927R0001’s regulation algorithms, can reduce net operating load by Actual operating results depend on the installed system, load profile, and commissioning parameters.

Predictive Thermal Management: The board continuously monitors IGBT junction temperatures, heatsink thermal resistance, and ambient temperature trends. When thermal margins tighten — due to high ambient temperature or increased load cycles — the board proactively reduces switching frequency to lower switching losses, extending component life and preventing unplanned shutdowns. This predictive approach reduces maintenance costs and eliminates the unplanned downtime associated with emergency restarts and production recovery after unexpected trips.

For plant maintenance teams, the HIEE300927R0001 also simplifies spare parts management. As a direct replacement board for ACS800 and DCS800 drives, it eliminates the need for full drive replacement when the control electronics fail — reducing capital expenditure and minimizing downtime to the time required for board swap and parameter restore.

Product Sourcing FAQ

Q1: How much energy can the HIEE300927R0001 UBC717AE01 help save in a typical motor application?
A: The operational stability depend on the application type and current operating profile. In variable-torque applications (pumps, fans, compressors), optimized speed control enabled by this board can help restore stable operation when a compatible replacement is required. In constant-torque applications (conveyors, extruders), savings of 10–20% are typical through improved torque regulation and elimination of motor slip losses.

Q2: Is the HIEE300927R0001 compatible with both ACS and DCS drive series?
A: Yes. The HIEE300927R0001 UBC717AE01 is designed for use in ABB’s ACS series (including ACS800 and ACS600 variants) and DCS series (including DCS800 and DCS600) drive platforms. Always verify the exact drive model and firmware version compatibility before installation. Our technical team can assist with compatibility confirmation prior to shipment.

Q3: What does the pre-shipment testing process include?
A: Every HIEE300927R0001 UBC717AE01 unit undergoes a structured functional test before dispatch. This includes power-on verification, communication interface check, I/O signal integrity test, and visual inspection for component condition. A test report is available upon request. Units that do not pass all test criteria are not shipped.

Q4: What does the warranty terms confirmed during quotation cover?
A: The warranty terms confirmed during quotation covers manufacturing defects, component failures under normal operating conditions, and functional non-conformance identified after installation. It does not cover damage caused by incorrect installation, overvoltage events, or unauthorized modification. Warranty claims are processed with full technical support from our team, including replacement unit dispatch and return logistics coordination.
